TP-Link FC311B-2 (FC311B-2) Omada Gigabit Single-mode SC WDM Media Converter

NETWORK
Standards and Protocols
• IEEE 802.3i, 802.3u, 802.3ab, 802.3z
ENVIRONMENT
Operating Temperature
• 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature
• -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity
• 10% to 90% RH non-condensing
Storage Humidity
• 5% to 90% RH non-condensing
HARDWARE FEATURES
Interface
• 1× Gigabit SC Fiber Port
• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media
• Single-mode Fiber
• UTP category 5, 5e cable (maximum 100m)

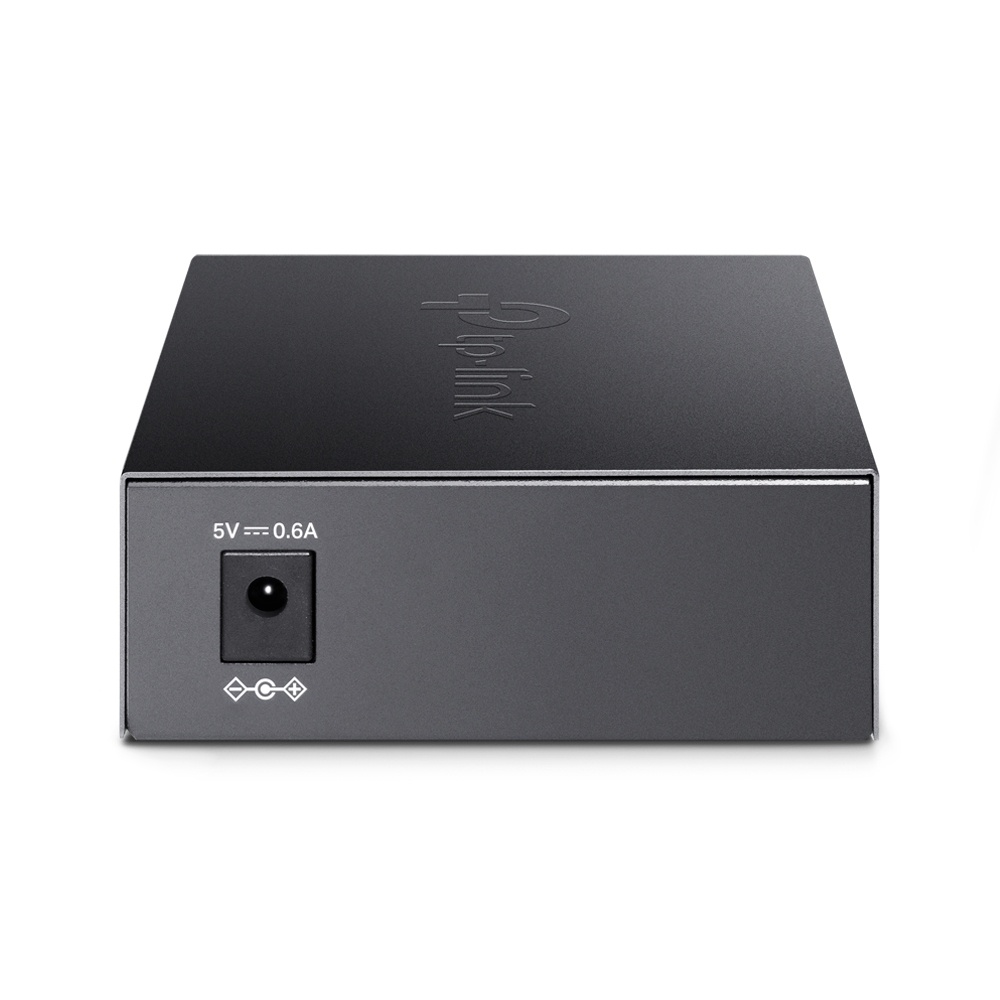

Power Supply
• External Power Adapter: 5 V/0.6 A
LED
• PWR, Link/Act
Dimensions ( W x D x H )
• 3.7×2.9×1.1 in (94.5×73.0×27.0 mm)
Wave Length
• 1550 nm TX, 1310 nm RX
MEDIA CONVERTER & MODULE
Fiber Type
• 9/125 μm single-mode fiber (≤2 km)
