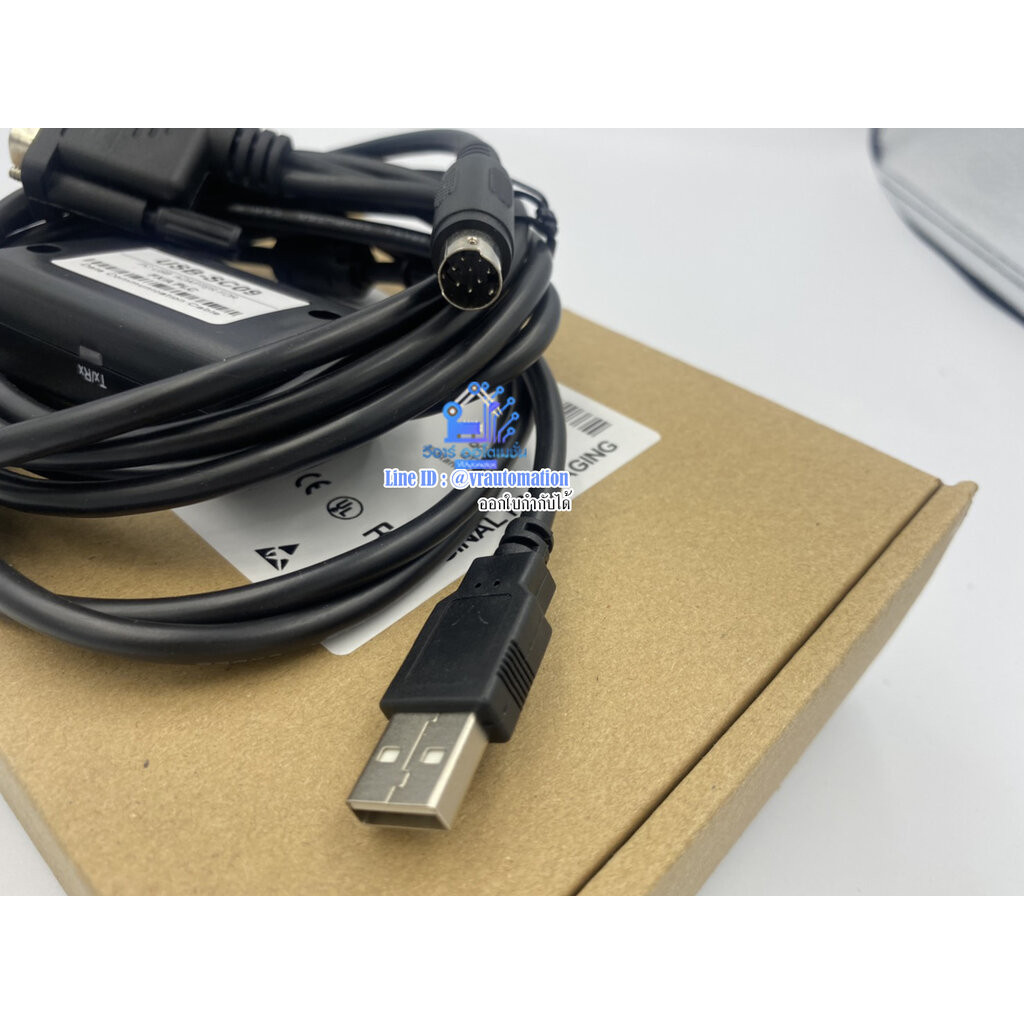

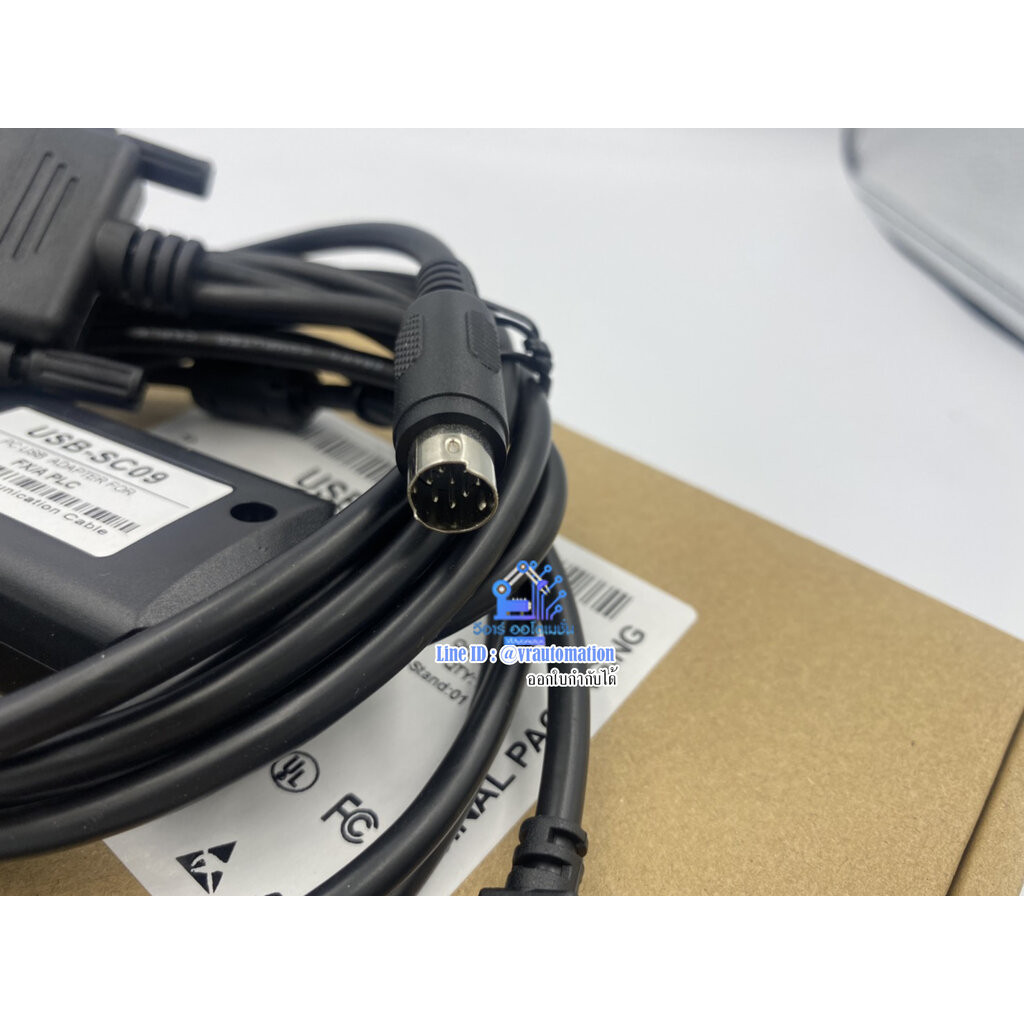

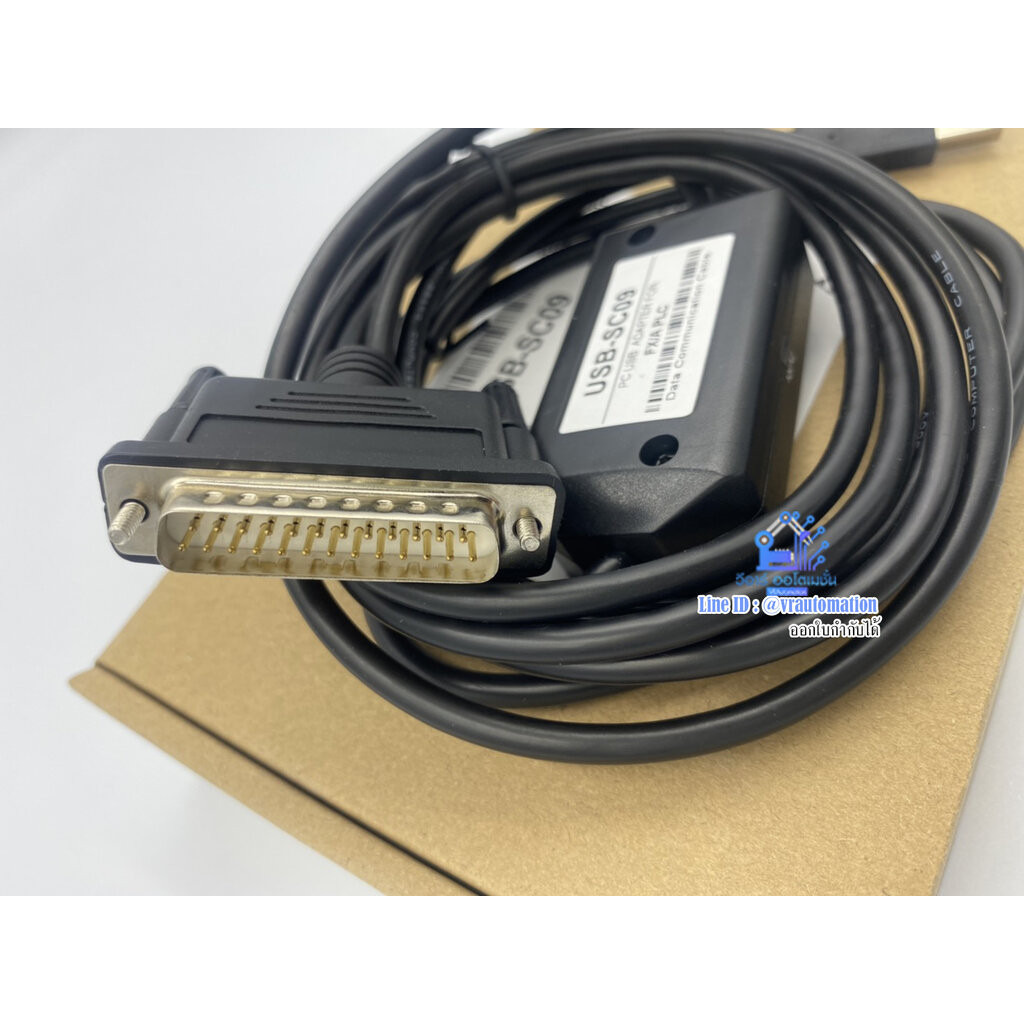

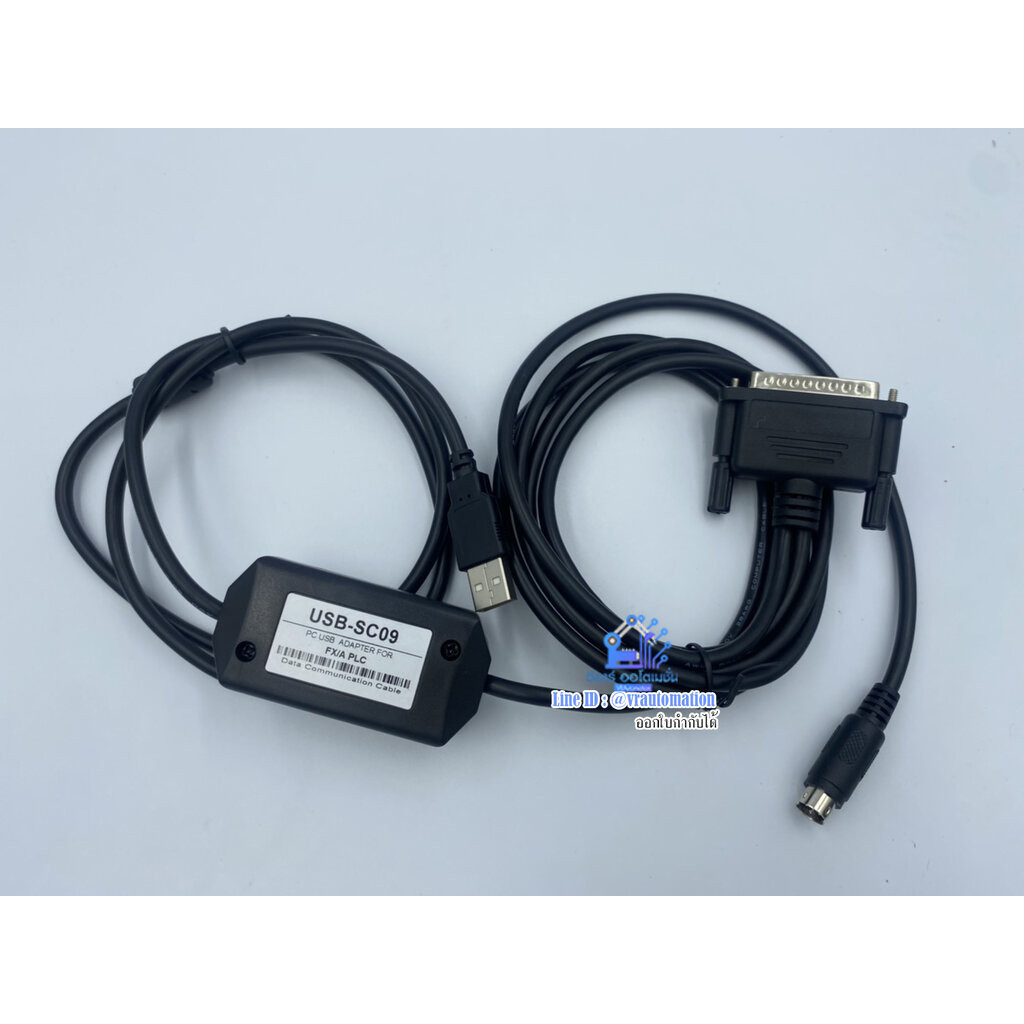

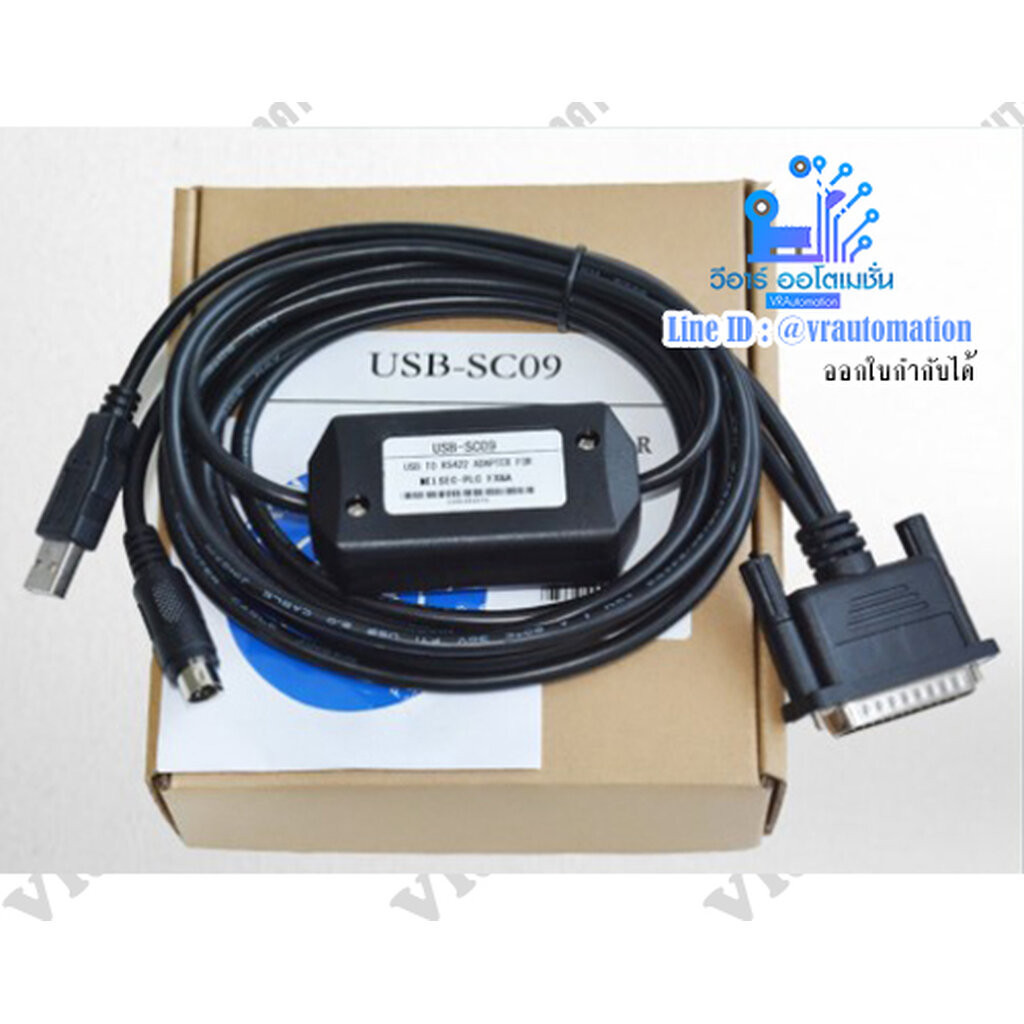

Programming Cable USB to RS422 Adapter for Melsec FX PLC Mitsubishi USB-lSC09 ship with real tracking number!
ลิ้งค์โหลด Driver
https://www.dropbox.com/s/46u6dm6jm3v071o/CH341SER.EXE?dl=0
Features:
- System Support USB-SC09 : Win 10 ,8.1 ,8 ,7 ,Vista Windows2000/XP( WinNT4/95/98/Me/DOS NOT Support) (32 bit and 64 bit)
- Programming software : FXGP/WIN V1.0 , GPP V4.0 , GX Developer and above ,GX work 2 Gx work 3
- Compatible with USB V2.0
- USB cable supply electricity,about 50mA.
- Baud rate: 300bps - 1Mbps
- Every PC only support one USB cable
- Support long distance communication(maximum distance 2 KM )
- Length:3 meter
- Color:Black
- Support: UART data format. data bit:7 and 8; stop bit:1 and 2; parity bit: odd/even/no parity
- Working temperature: -20 - +75 degrees Celsius
Package List:

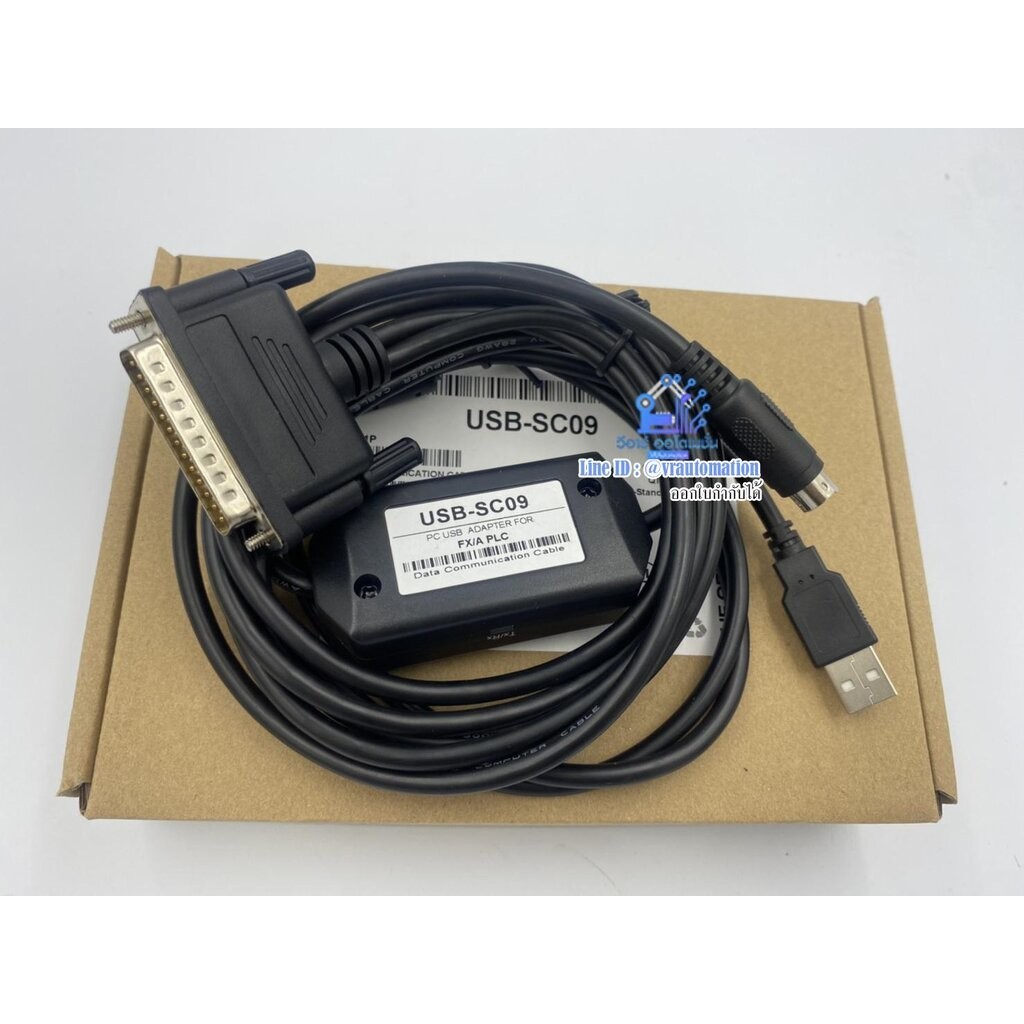

- 1x USB-SC09 Cable
- 1x CD
วิธีการอัพโหลด และ ดาวน์โหลด โปรแกรม PLC Mitsubishi (GX Deverloper) ด้วยสายลิ้งค์ PLC ของทางร้าน Elec2you ราคา ถูก มา ๆ มารีวิว พร้อมสอนการใช้งาน สายลิ้งค์ PLC Mitsubishi ใช้กับรุ่น FX และ A series แบบชนิด USB-SC09 ดังรูป
ใช้ได้กับ PLC Mitsubishi FX และ A Series
- ความยาวของสาย 3 เมตร
- Support Windows xp 7
- Support: UART data format. data bit:7 and 8; stop bit:1 and 2; parity bit: odd/even/no parity
เมื่อเสียบสาย usb เข้ากับคอมพิวเตอร์ จะต้องติดตั้ง driver ก่อน
ลิ้งค์สำหรับ Download driver สาย PLC Mitsubishi https://dl.dropboxusercontent.com/u/13758529/elec2you/USB_DRIVE.rar
ถ้าติดตั้งสำเร็จจะได้ USB-SERIAL CH340 (COM2)
ทำการตรวจสอบว่า Computer สามารถเชื่อมต่อ PLC ได้ไหม ให้ไปที่ โปรแกรม GX Deverloper
Online Transfer Setup ... เลือก Comport Connection test ถ้าขึ้นว่า Successfully connected with the FX3U(C)CPU จะบอกรุ่นที่เราเชื่อมต่อเลยครับ
การ download หมายถึง โหลดโปรแกรมจาก PLC ลง PC โปรแกรมสำหรับ PLC Mitsubishi ด้วยโปรแกรม GX Deverloper นั่นทำได้ง่าย ๆ ดังนี้
ให้ไปที่ Online Read form PLC Excute
จะได้โปรแกรมดังรูป ตามโปรแกรมที่มีอยู่ใน PLC เดิม
ไฟแสดงสถานะ TX/RX สีแดงคือ อ่าน สีเขียวคือ ส่ง
การ upload หมายถึง นำโปรแกรมที่เราเขียนใส่ลงใน PLC มีขั้นตอนง่าย ๆ ดังนี้เช่นกัน
ไปที่ Online Write to PLC ... เลือก Param+Prog จากนั้นกด Execute
สามารถสั่งซื้อกับทางร้านได้ที่ลิ้งค์
http://www.elec2you.com/category/15/plc/%E0%B8%AA%E0%B8%B2%E0%B8%A2%E0%B9%82%E0%B8%AB%E0%B8%A5%E0%B8%94-plc
สอบถามข้อมูลเพิ่มเติมได้ครับ
