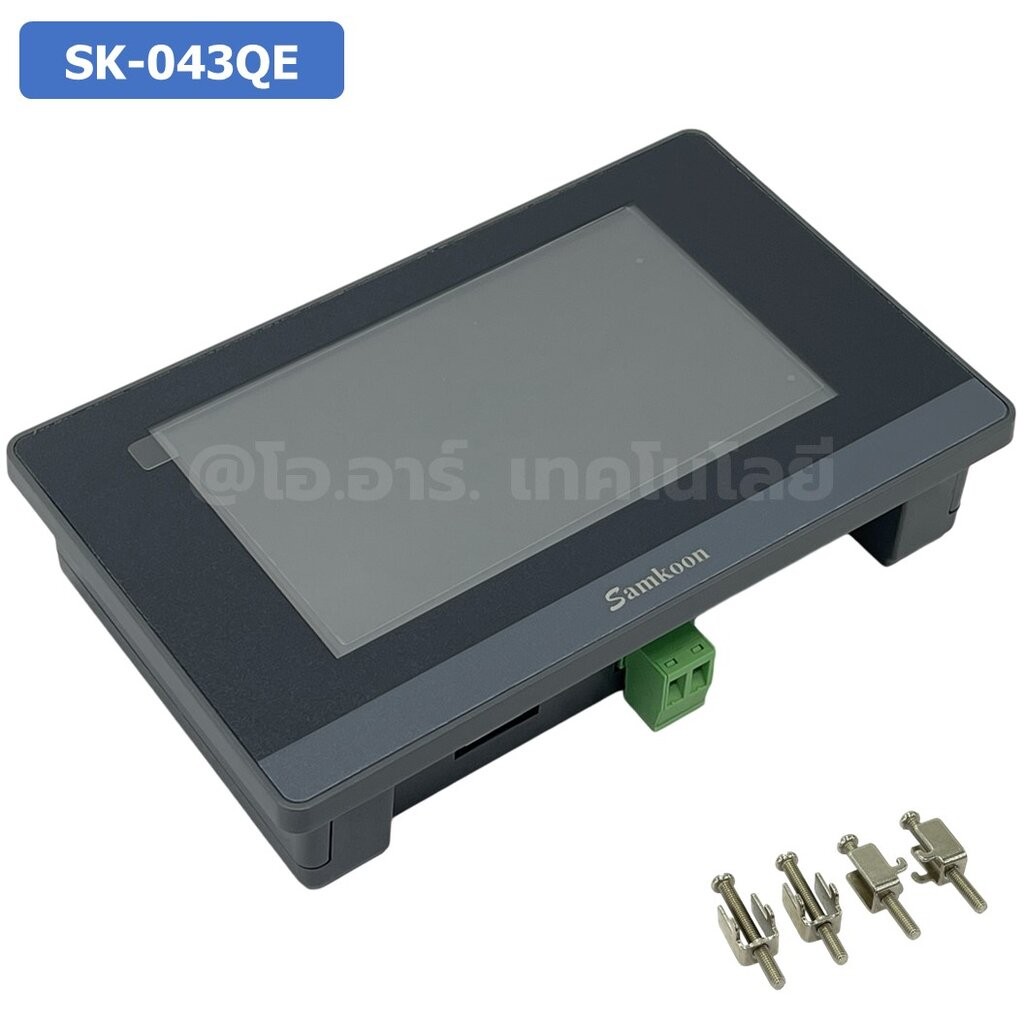

SAMKOON HMI SK-043QE จอทัชสกรีน 4.3" HMI Touch Screen 4.3" Human Machine Interface

SAMKOON HMI SK-043QE จอทัชสกรีน 4.3" HMI Touch Screen 4.3" Human Machine Interface

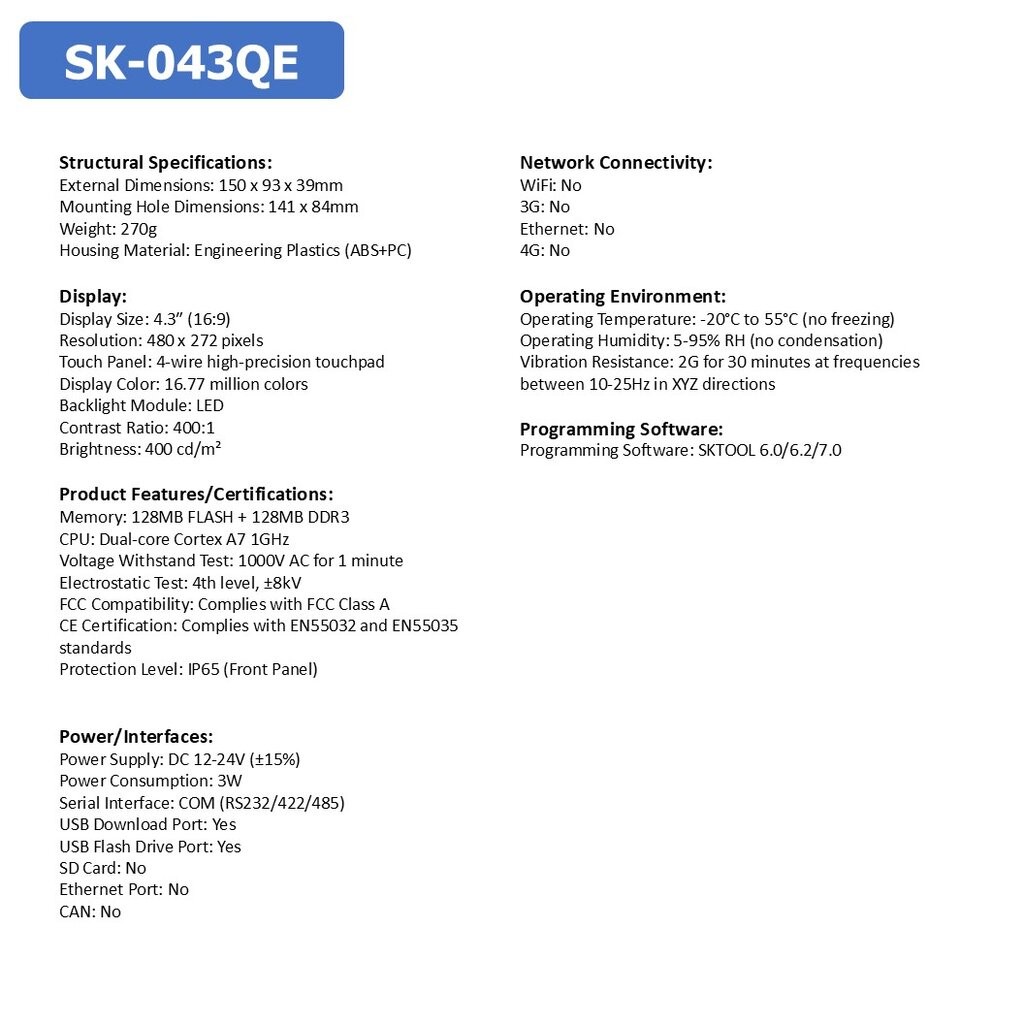

Structural Specifications:
External Dimensions: 150 x 93 x 39mm
Mounting Hole Dimensions: 141 x 84mm
Weight: 270g
Housing Material: Engineering Plastics (ABS+PC)

Display:
Display Size: 4.3 (16:9)
Resolution: 480 x 272 pixels
Touch Panel: 4-wire high-precision touchpad
Display Color: 16.77 million colors
Backlight Module: LED
Contrast Ratio: 400:1
Brightness: 400 cd/m

Product Features/Certifications:
Memory: 128MB FLASH + 128MB DDR3
CPU: Dual-core Cortex A7 1GHz
Voltage Withstand Test: 1000V AC for 1 minute
Electrostatic Test: 4th level, 8kV
FCC Compatibility: Complies with FCC Class A
CE Certification: Complies with EN55032 and EN55035 standards
Protection Level: IP65 (Front Panel)


Power/Interfaces:
Power Supply: DC 12-24V (15%)
Power Consumption: 3W

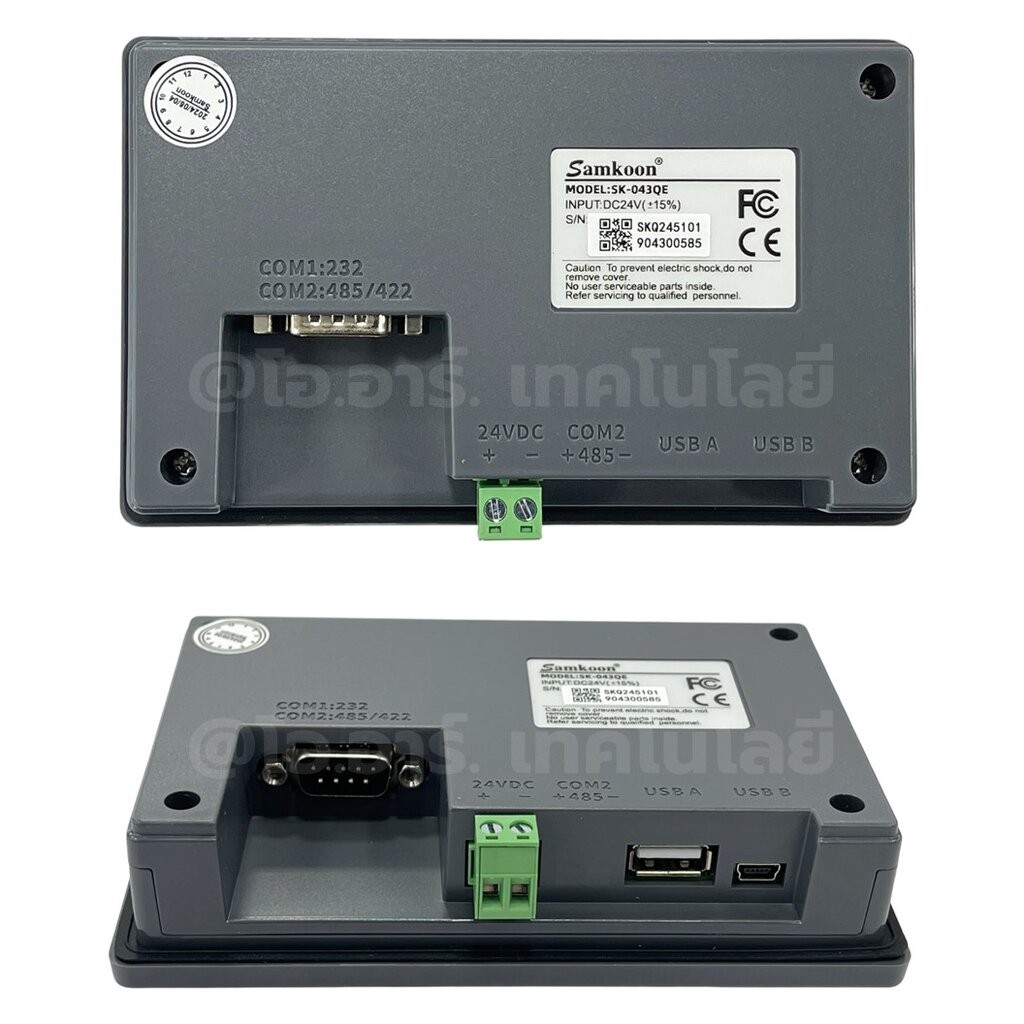

Serial Interface: COM (RS232/422/485)
USB Download Port: Yes
USB Flash Drive Port: Yes
SD Card: No
Ethernet Port: No
CAN: No

Network Connectivity:
WiFi: No
3G: No
Ethernet: No
4G: No

Operating Environment:
Operating Temperature: -20C to 55C (no freezing)
Operating Humidity: 5-95% RH (no condensation)
Vibration Resistance: 2G for 30 minutes at frequencies between 10-25Hz in XYZ directions

Programming Software:
Programming Software: SKTOOL 6.0/6.2/7.0
