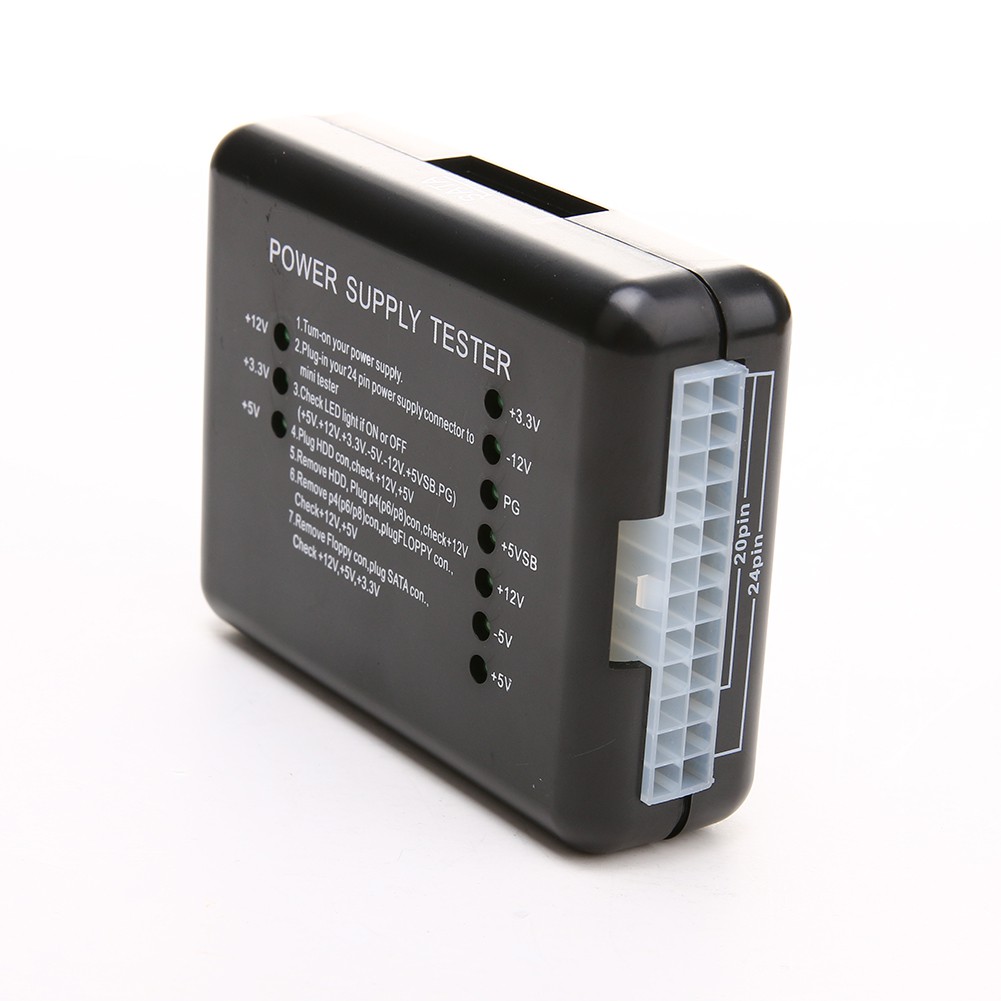

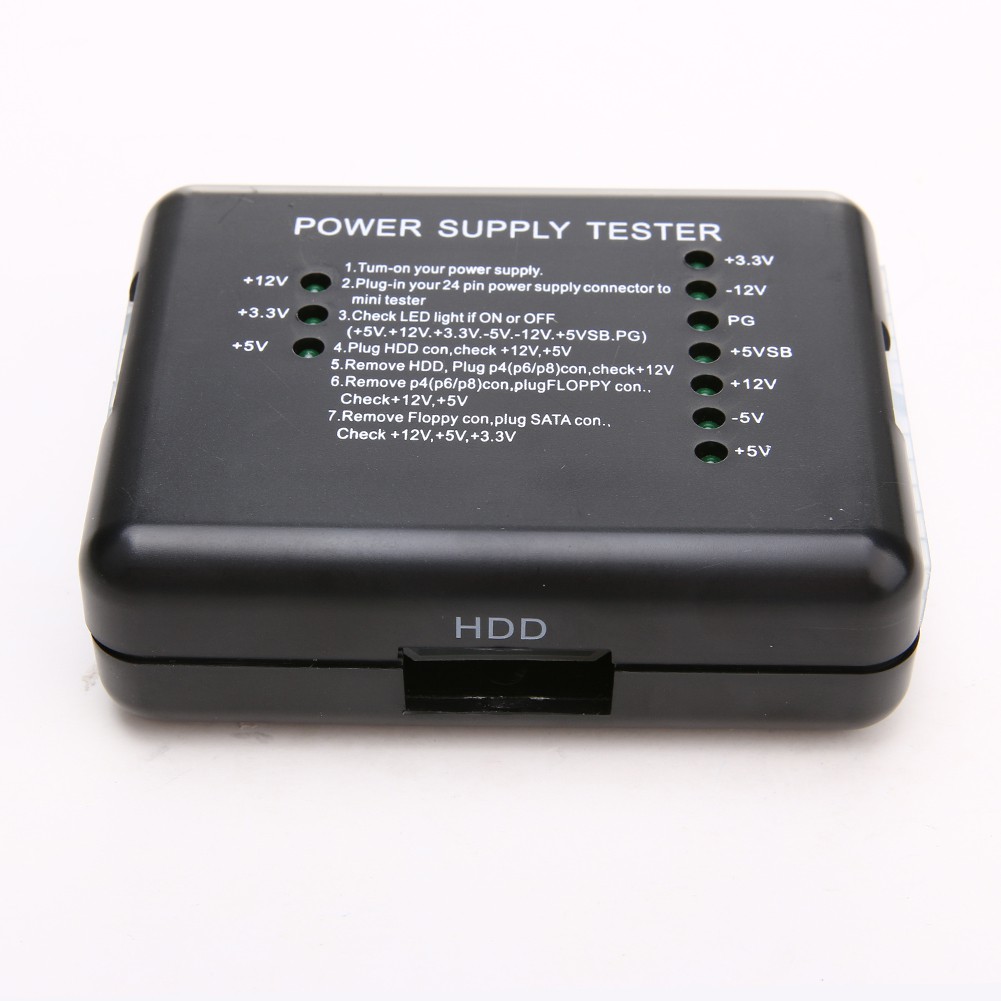

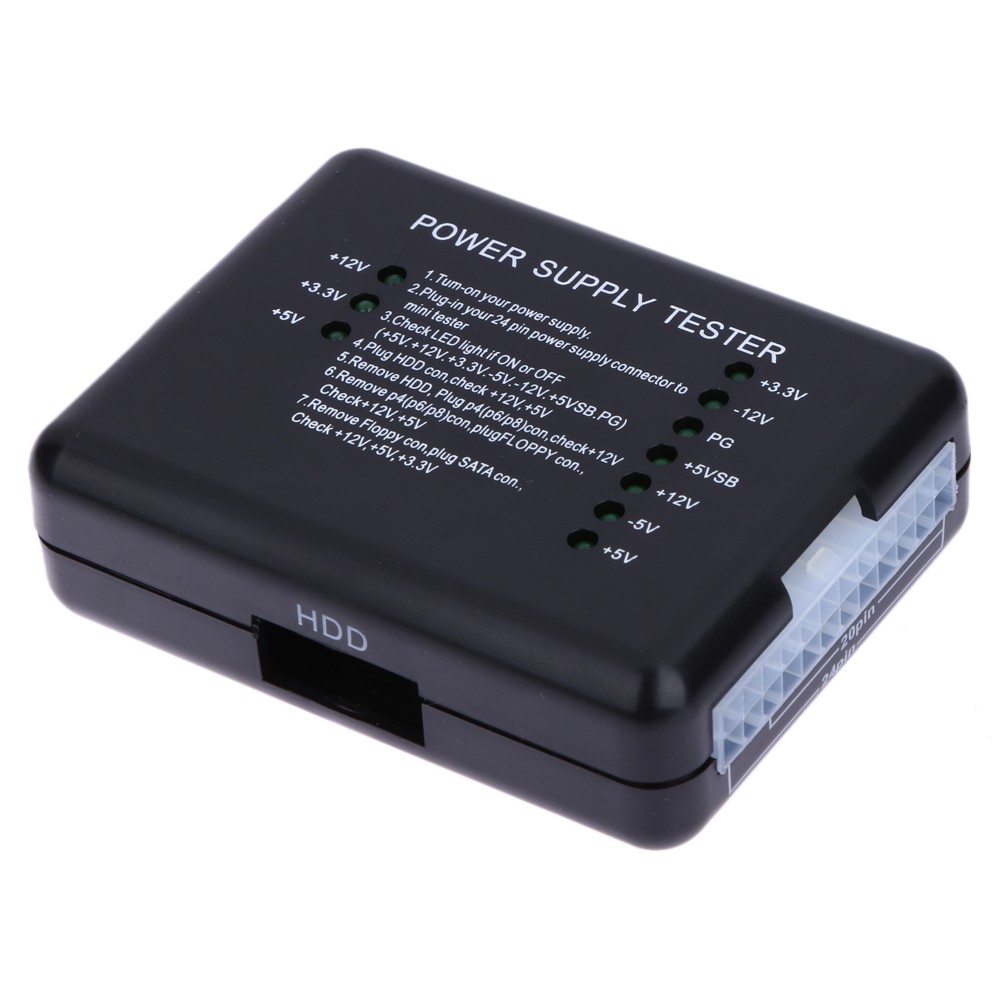

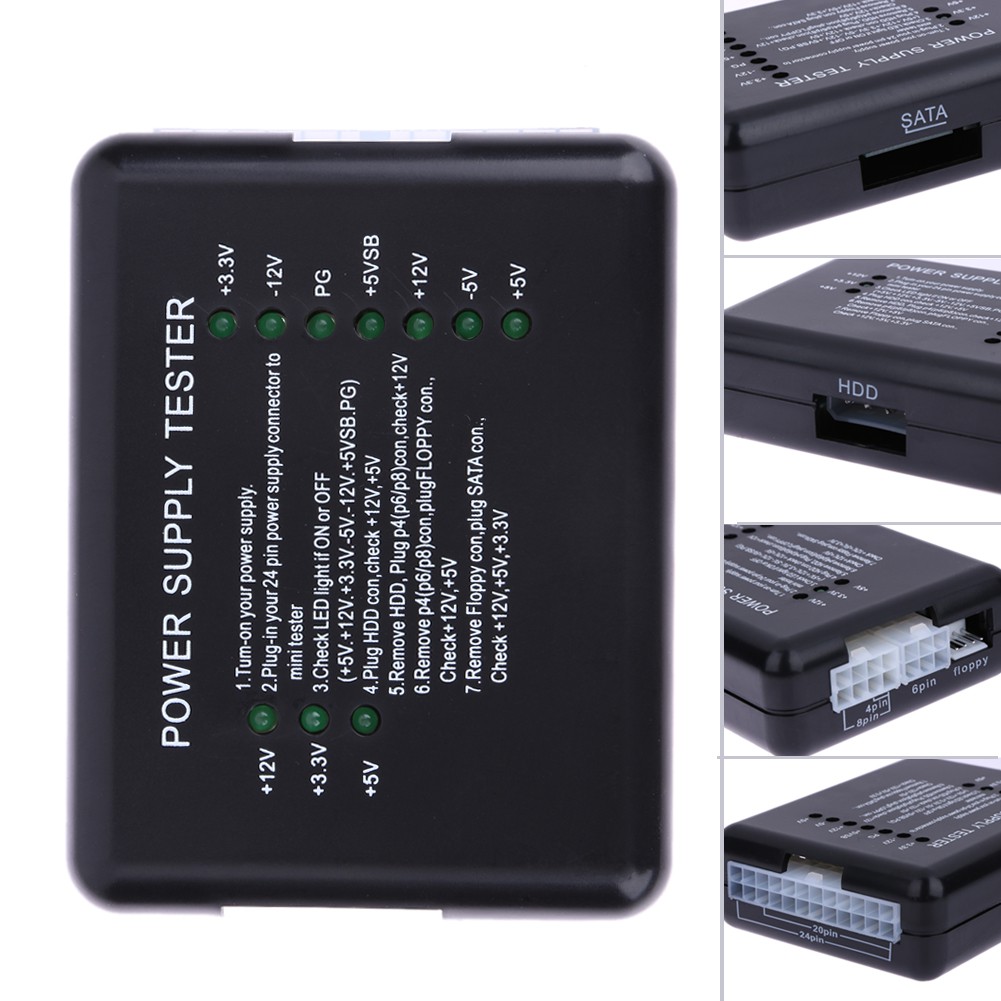

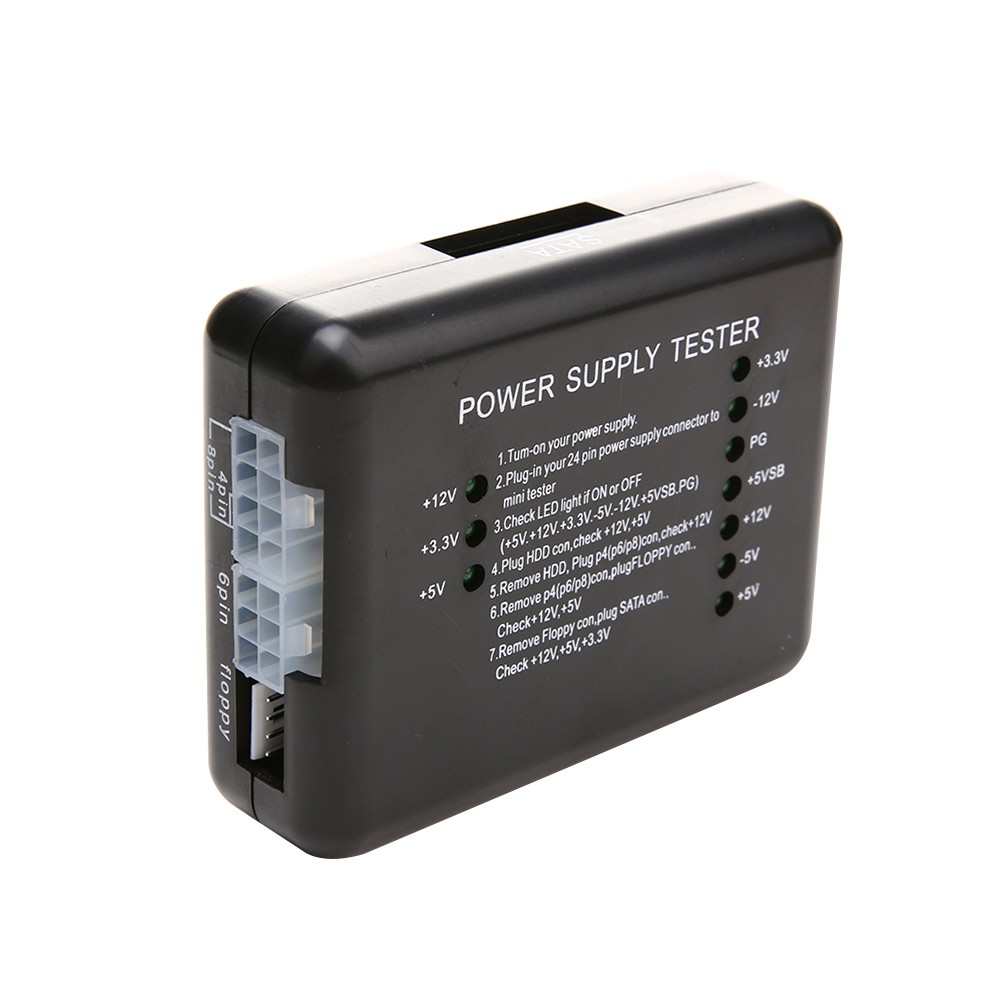

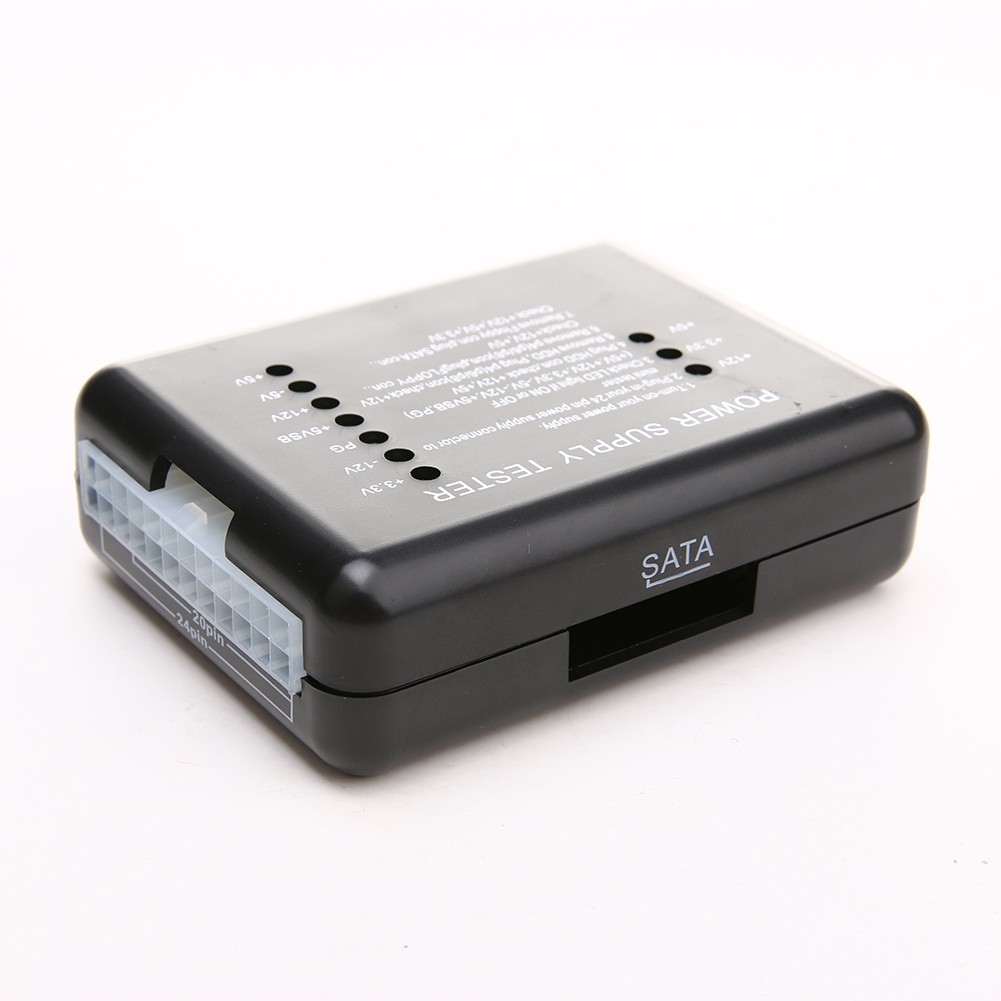

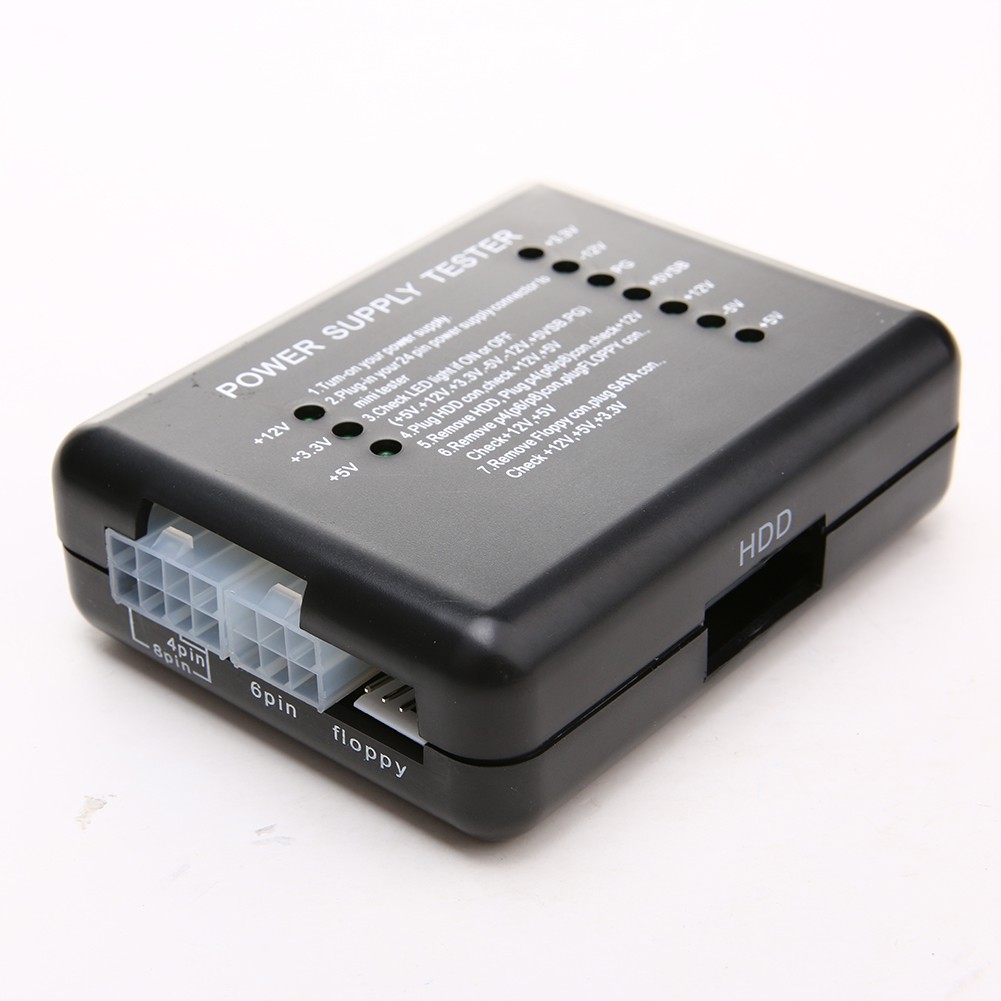

อุปกรณ์ทดสอบคอมพิวเตอร์ 20 / 24 Pin 4 PSU SATA HDD Power Supply Tester

PC Power Supply Tester with 20/24 Pin SATA HDD Connectors

Description
It checks to the voltage on all wires to ensure that the power supply is functioningproperly.
This is an essential tool for any computer technician.
It will allow you to quickly diagnose or rule out problems with the power supply, whichshould the the first thing you check when diagnosing computer problems.

Operation:
Easy to use, just plug in connectors and green LEDs illuminate to show which pins aregetting power.
There is a detailed operation on the packing card.

Specifications:
Checks 20/24-pin ATX (motherboard) Power, SATA (hard drive) power, Molex (old hard drive)power, Mini-molex (floppy) power, and 6-pin PCI-e (graphics card) connectors
Connector: Floppy,HDD,CDROM,SATA,4 pin(P4),8 pin(Dual CPU),6 pin(PCI-Express)
Voltage Source: 20/24 pin(ATX-connector)
Voltage Test: +12V,-12V,+5V,-5V,+3V,-3V,5V stand by(SB),12V power good(PG)
Colour: Black
Material: Sturdy plastic
Product size: approx. 88 x 68 x 28 mm/3.46 x 2.67 x 1.1inch


Included:

1x Power Supply Tester
