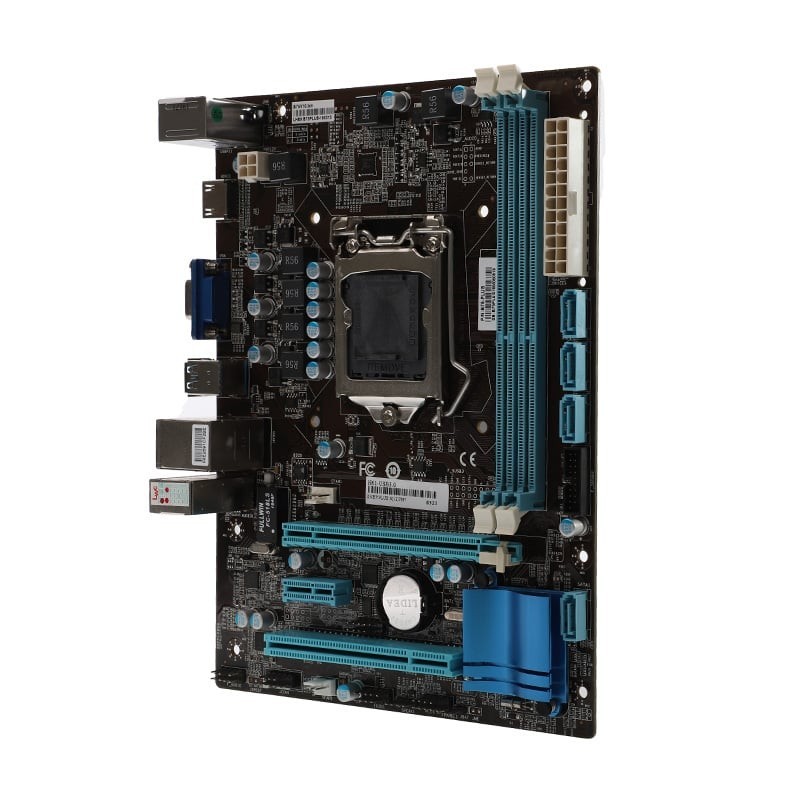

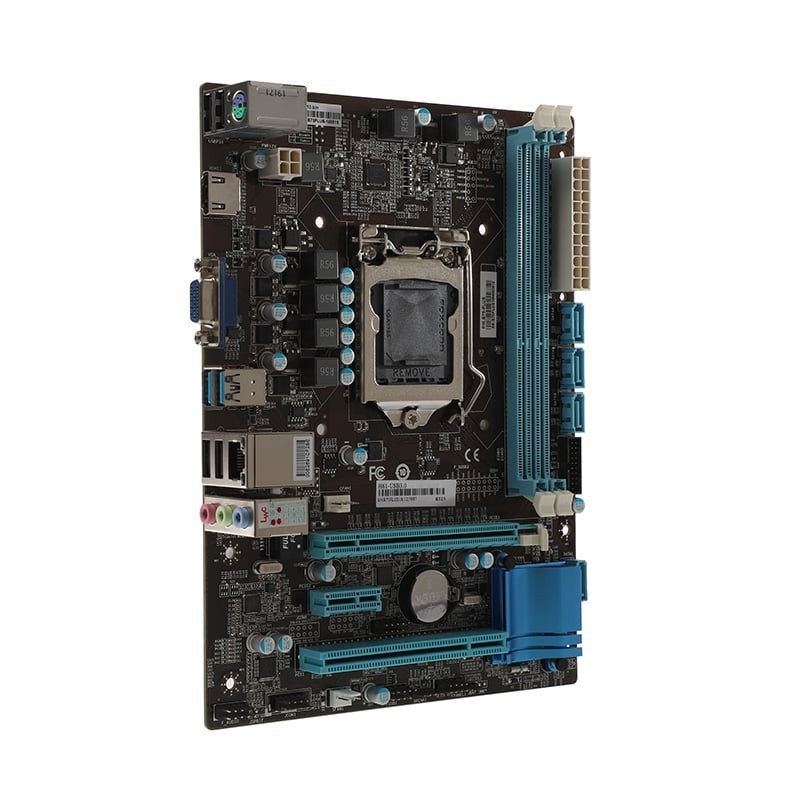

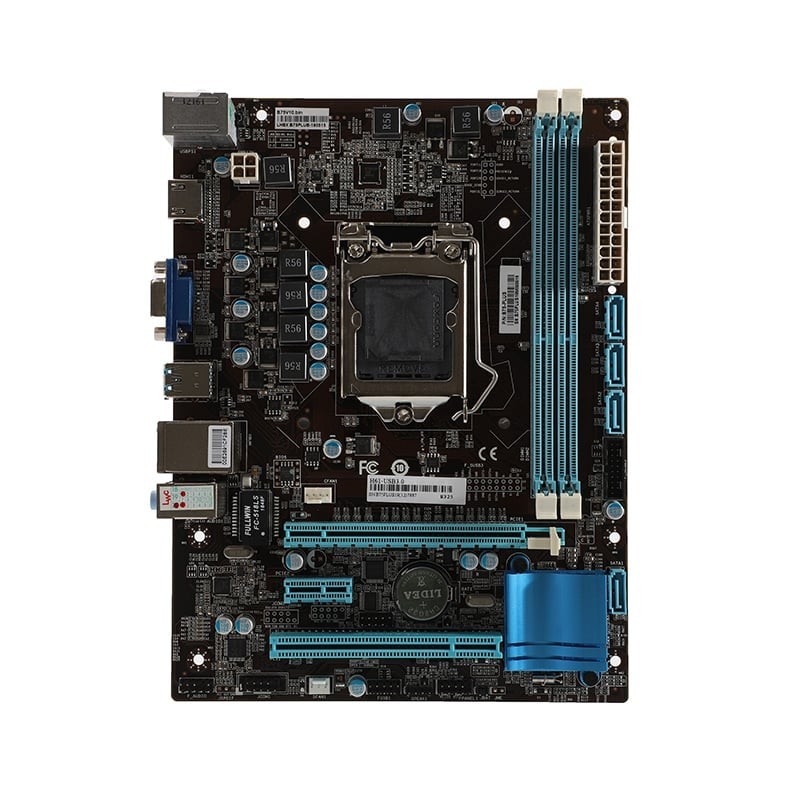

LONGWELL MAINBOARD (1155) P8H61 PLUS DDR3 - A0129777

Brand : LONGWELL
Model : INTEL P8H61-PLUS
CPU Support : Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors
CPU Brand : Intel
Socket : 1155
Chipset : Intel H61
Memory Support : Dual Channel DDR3 Memory Technology Non-ECC, Un-Buffered
Max.capacity up to 16GB Memory
Maximum Memory Bus : 1600
Graphics : N/A
Multi Graphic Support : N/A
Audio : Realtek® High Definition Audio CODEC
Expansion Slots : 1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
1 x PCI
Maximum PCIe Version : PCIe 2.0
Storage : 3 x SATA II 3.0Gb/s Connector
1 x SATA III 6.0Gb/s Connector
M.2 Storage Type Support : None
M.2 Slot : None
USB : 4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x F USB 2.0 Connector
1 x F USB 3.0 Gen1 connectors
Internal I/O Connectors : 1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x F USB 2.0 Connector
1 x F USB 3.0 Gen1 connectors
1 x COM port Connector
1 x CMOS
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector

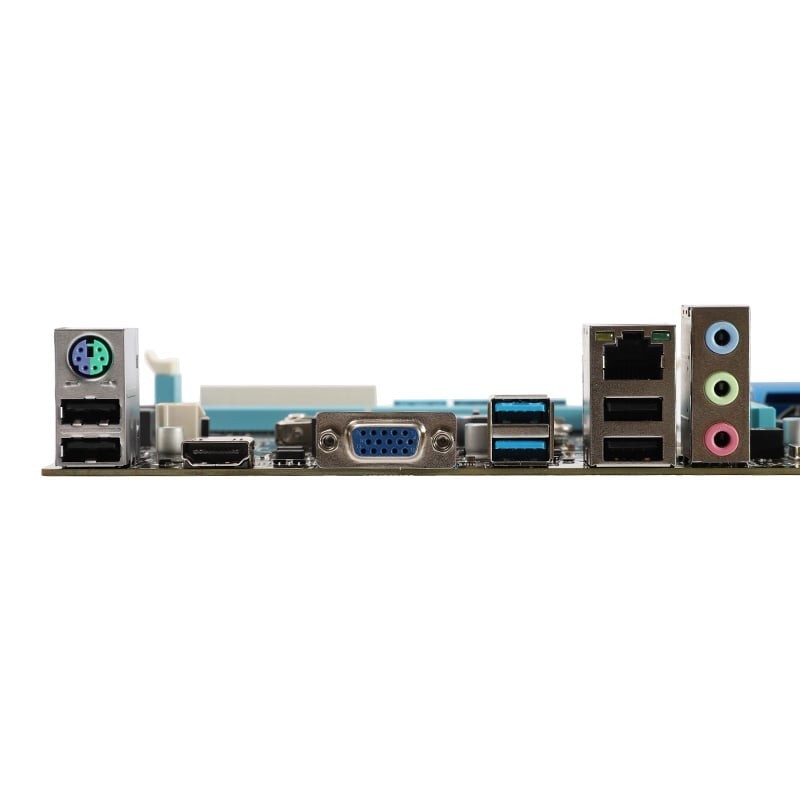

Back Panel Connectors : 1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x VGA (D-Sub) Port
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
3 x Audio Jacks: Line in / Speaker / Microphone
LAN : 10/100/1000 Mb/s Realtek® auto negotiation Half/Full duplex capability
Wireless Data Network : None
Form Factor : Micro ATX
H/W Monitoring : N/A
BIOS : N/A
Special Features : N/A
Software Features : N/A
Operating System Support : Microsoft® Window® XP / Vista / 7 / 8 / 10
Package Contents : N/A
Dimension (W x D x H) : 17.00 x 22.50 x 3.70 cm
Net Weight : 0.41
Package Dimension (W x D x H) : 24.00 x 28.00 x 6.00 cm
Gross Weight : 0.60
Volume : 4,032.00
ประกัน : 1 ปี
