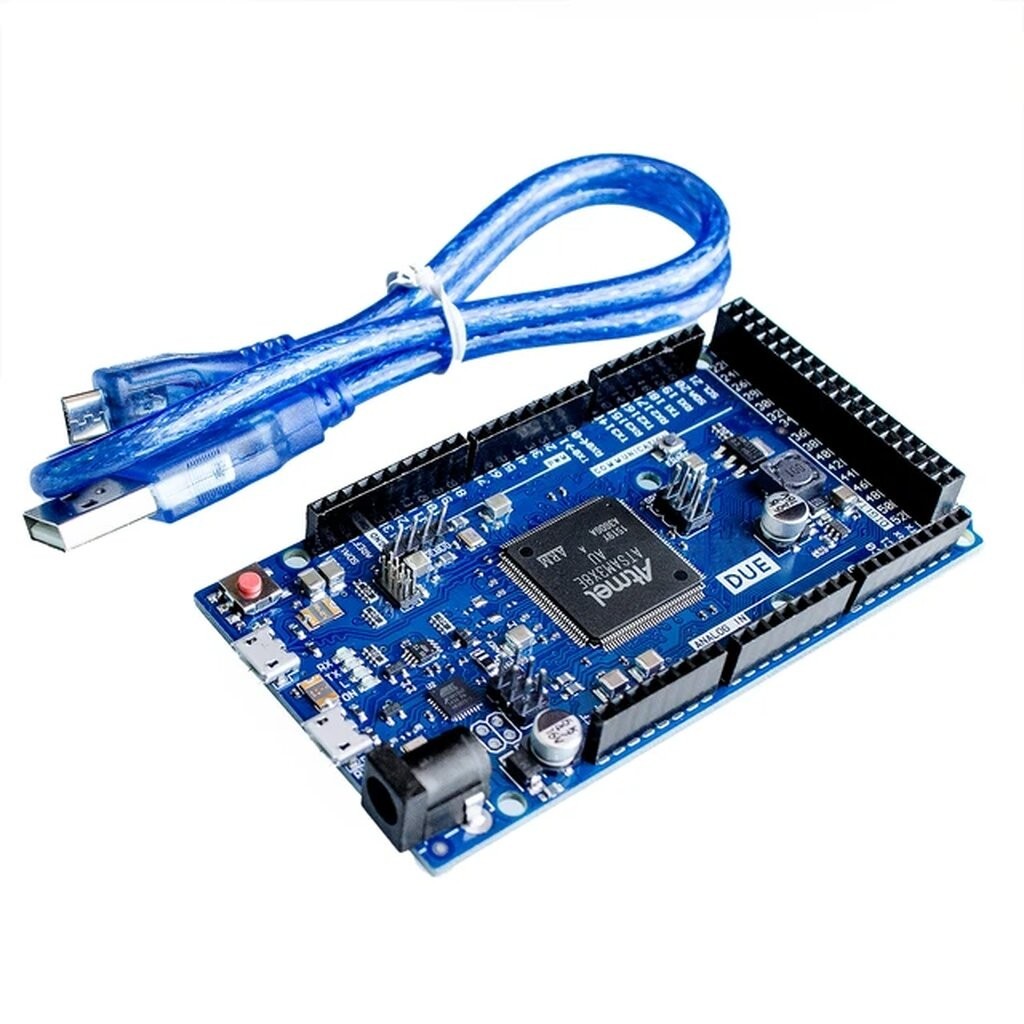

Arduino DUE R3 ARM 32-bit พร้อมสาย Micro USB

Arduino DUE R3 ARM 32-bit พร้อมสาย Micro USB

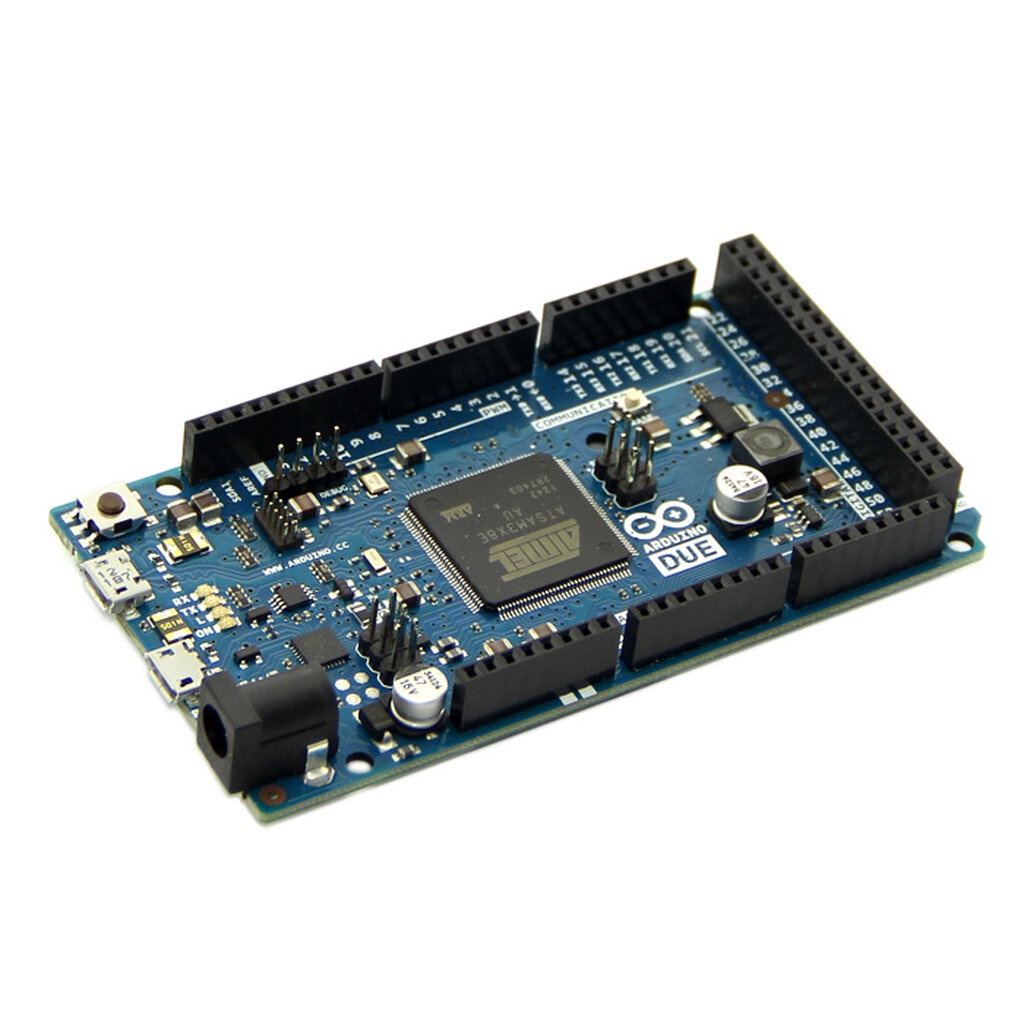

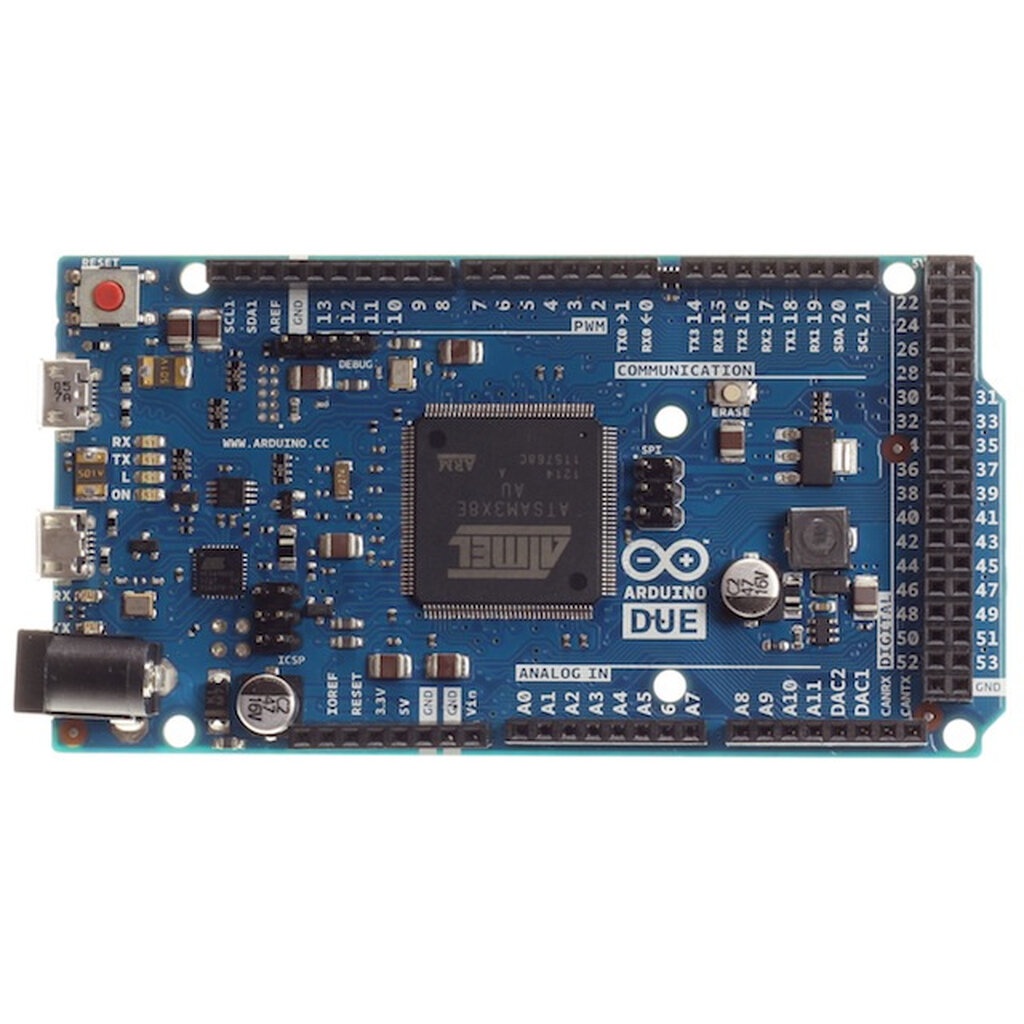

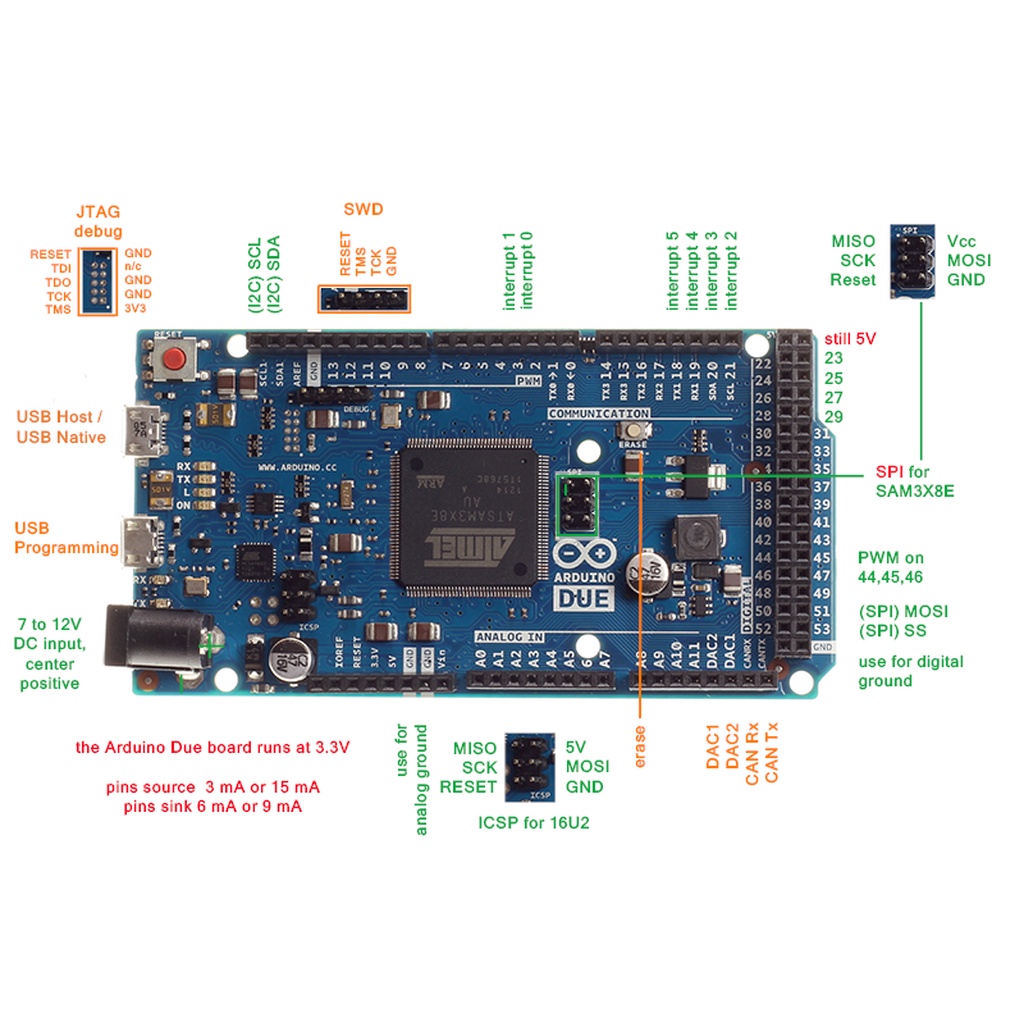

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU (datasheet). It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

คูณสมบัติ Arduino Due R3:
- Main Processor:AT91SAM3X8EA
- Working voltage: 3.3V
- Input voltage:7-12V
- Input voltage:6-20V Max
- Digit I/O port 54 pcs ( 12 PWM Output)
- Output current: 130mA
- 3.3V power supply pin can supply 00 mA current
- 512KB
- SRAM96 KB (two banks: 64KB and 32KB)
- Colock frequency:84 MHz

Warning: Unlike other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.
