MAINBOARD (เมนบอร์ด) GIGABYTE B850 AORUS ELITE WIFI7 ICE (AMD SOCKET AM5 DDR5 ATX)

คุณสมบัติสินค้า
ชื่อสินค้า (Name) : B850 AORUS ELITE WIFI7 ICE

CPU
Socket : AMD B850
Support Gen : Socket AM5 support for :
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors

Memory
จำนวน Slots แรม (Memory Slots) : 4
ชนิดของแรม (Memory Type) : DDR5
ใส่แรมได้สูงสุด (Maximum Memory Supported) : 256 GB
Ram Bus Support : DDR5 Support up to 8200(OC) MHz

ช่องเชื่อมต่อหน่วยความจำ (Storage Connector)
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors

Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)

Network
Chipset Lan : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Chipset Wireless : Realtek® Wi-Fi 7 RTL8922AE
Wireless Support : 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth : v5.4

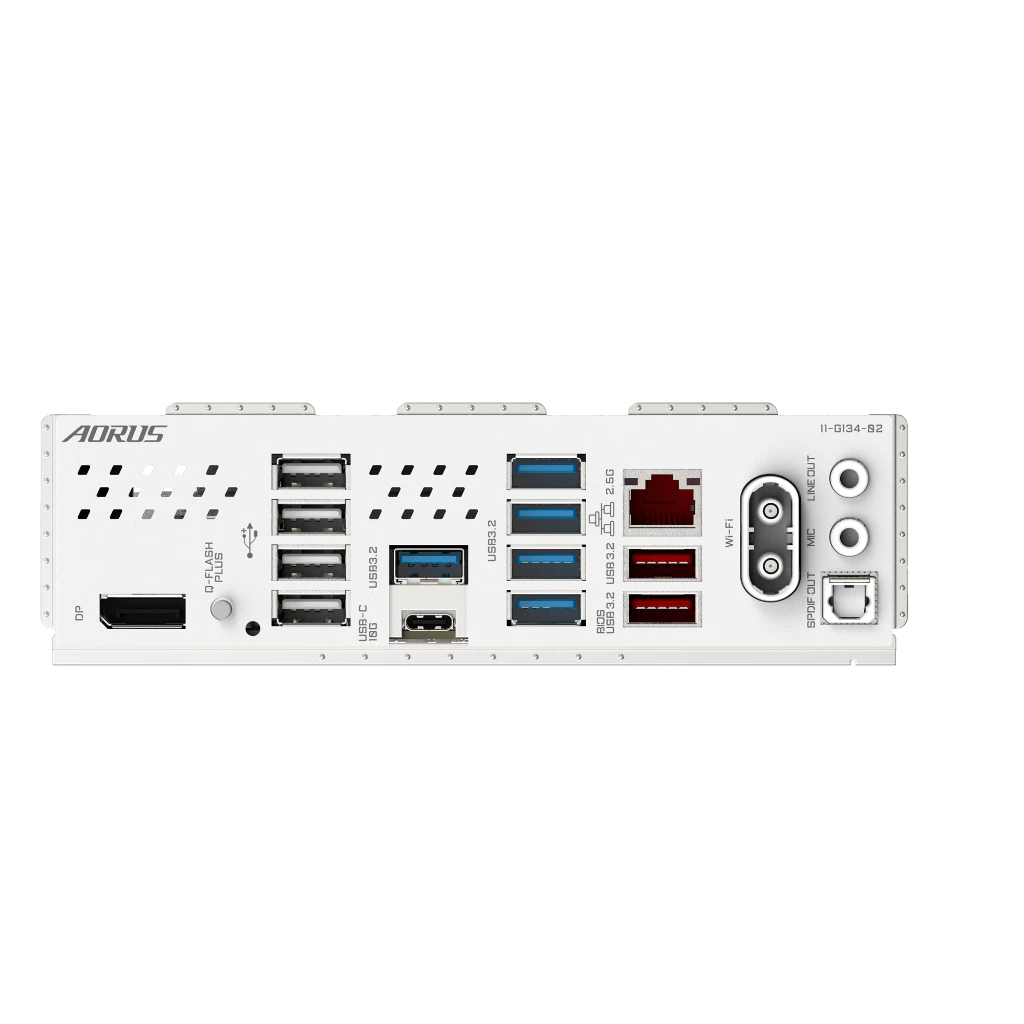

ช่องเชื่อมต่อด้านหลัง (Back Panel Connectors)
1 x DisplayPort (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

ขนาด (Form Factor) : ATX Form Factor; 30.5cm x 24.4cm
