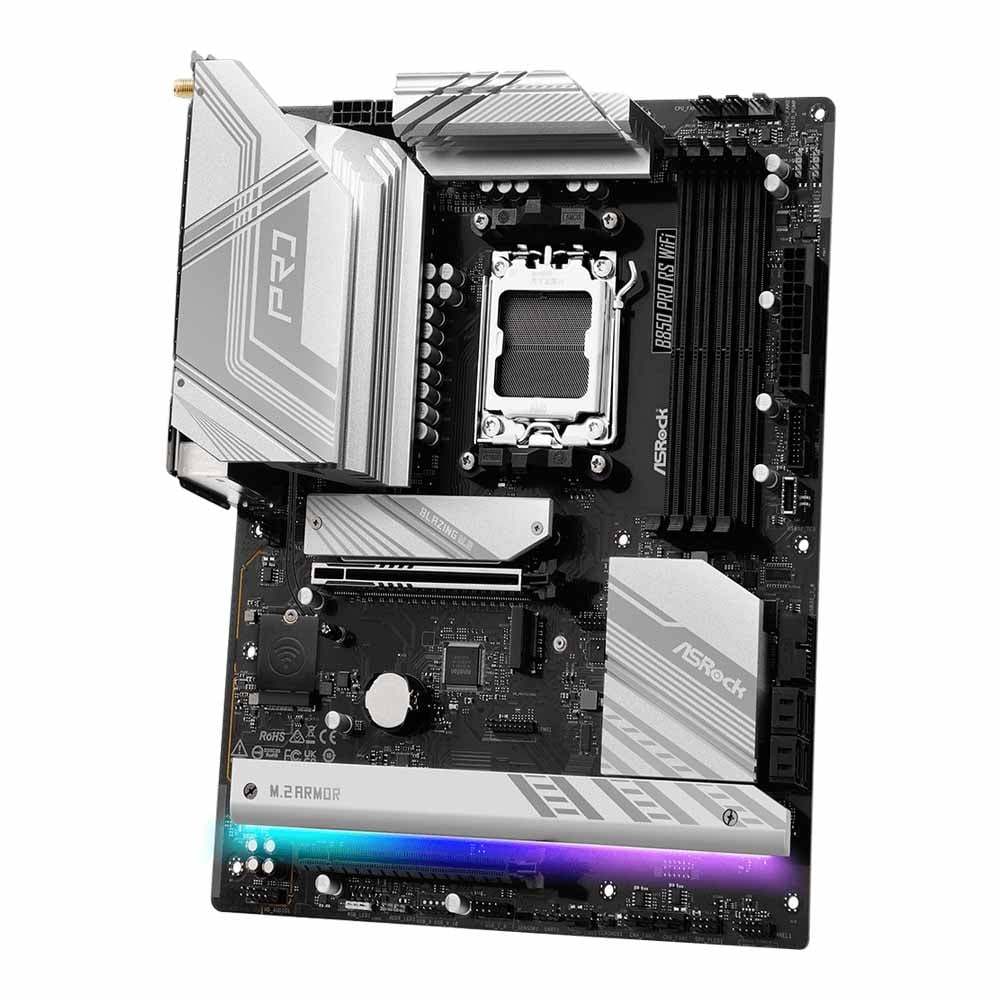

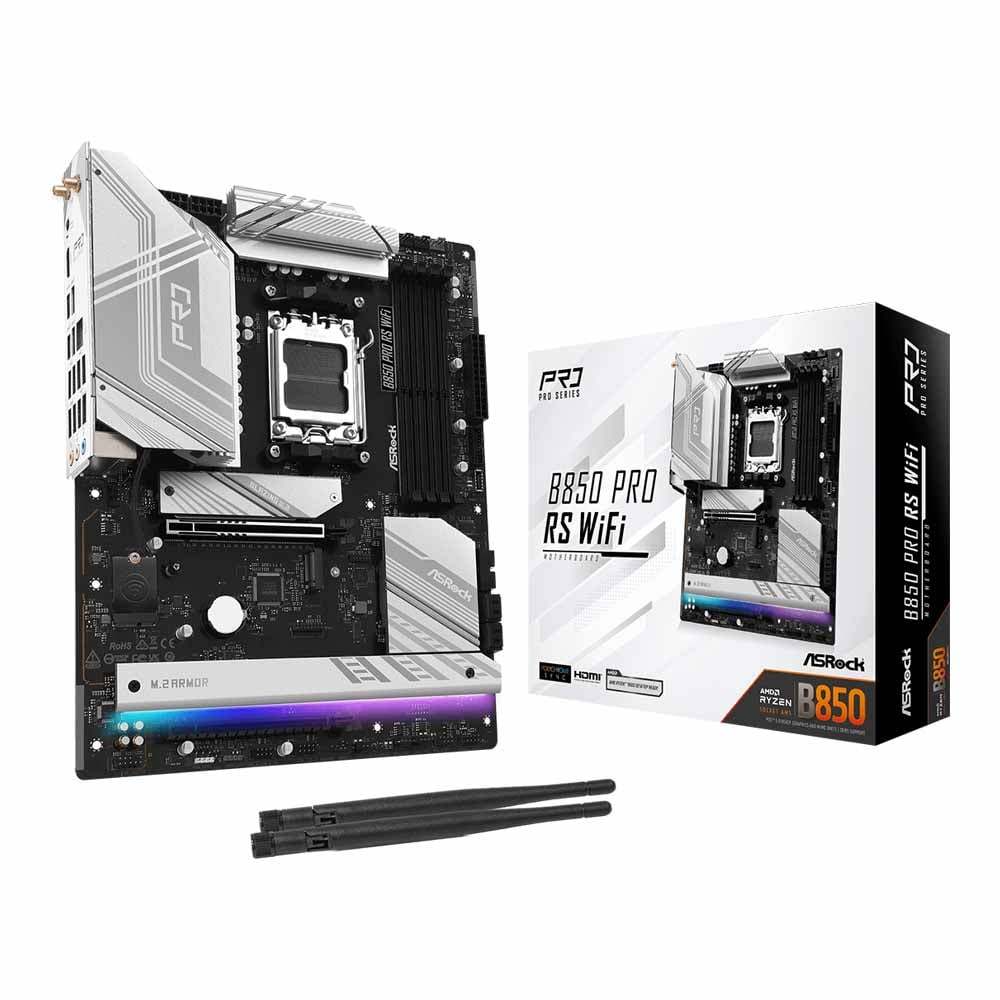

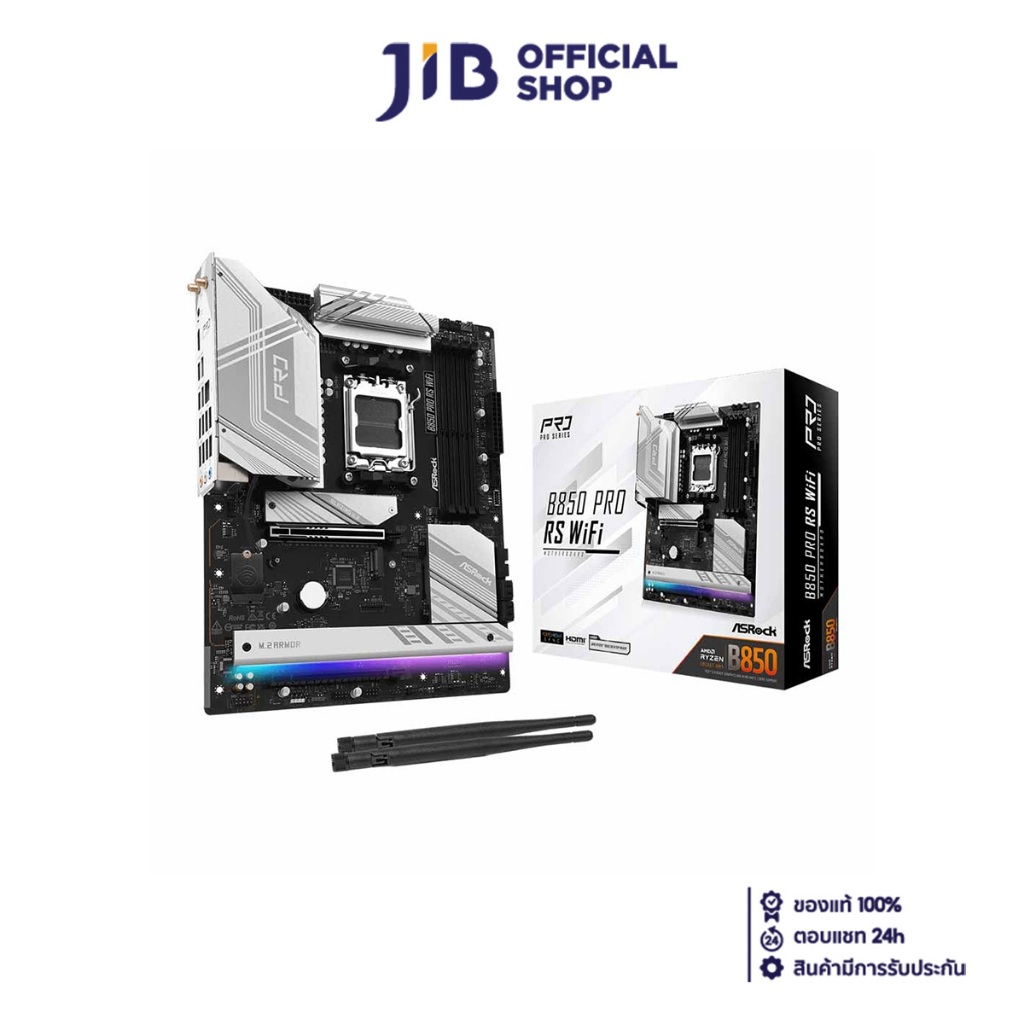

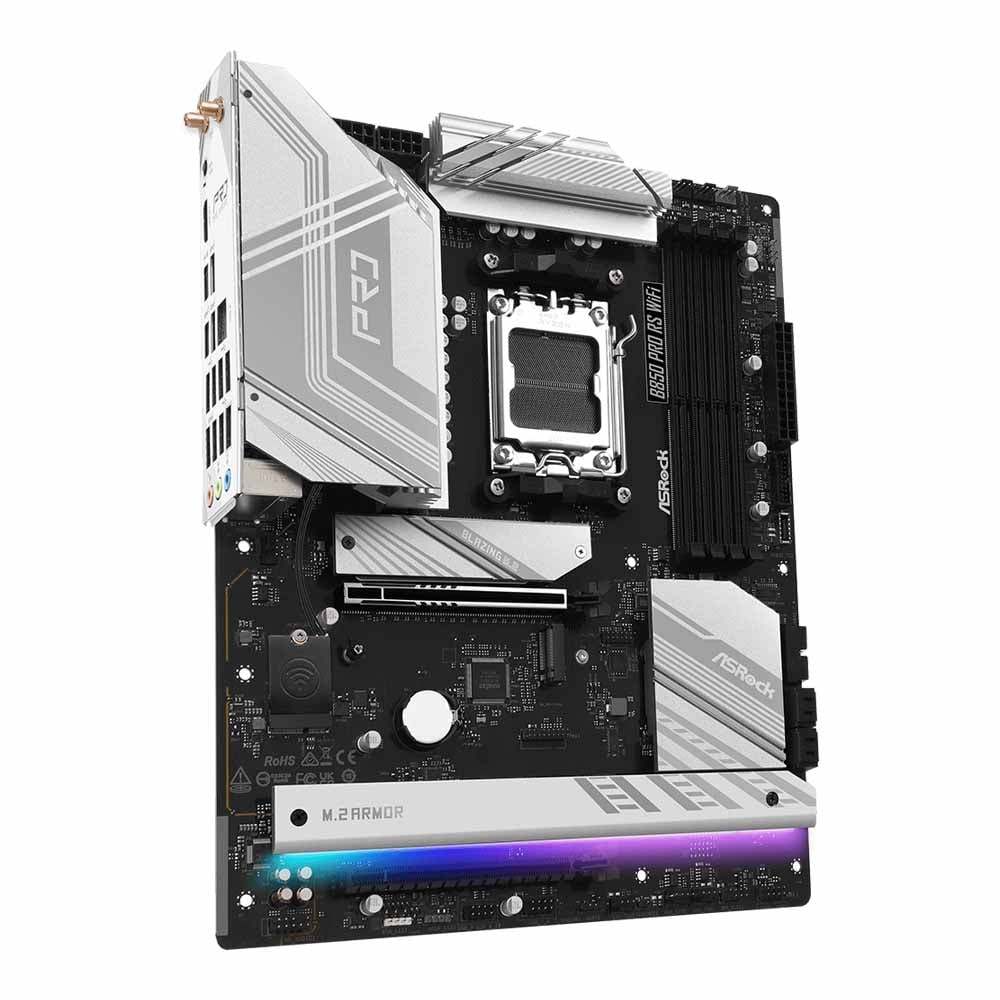

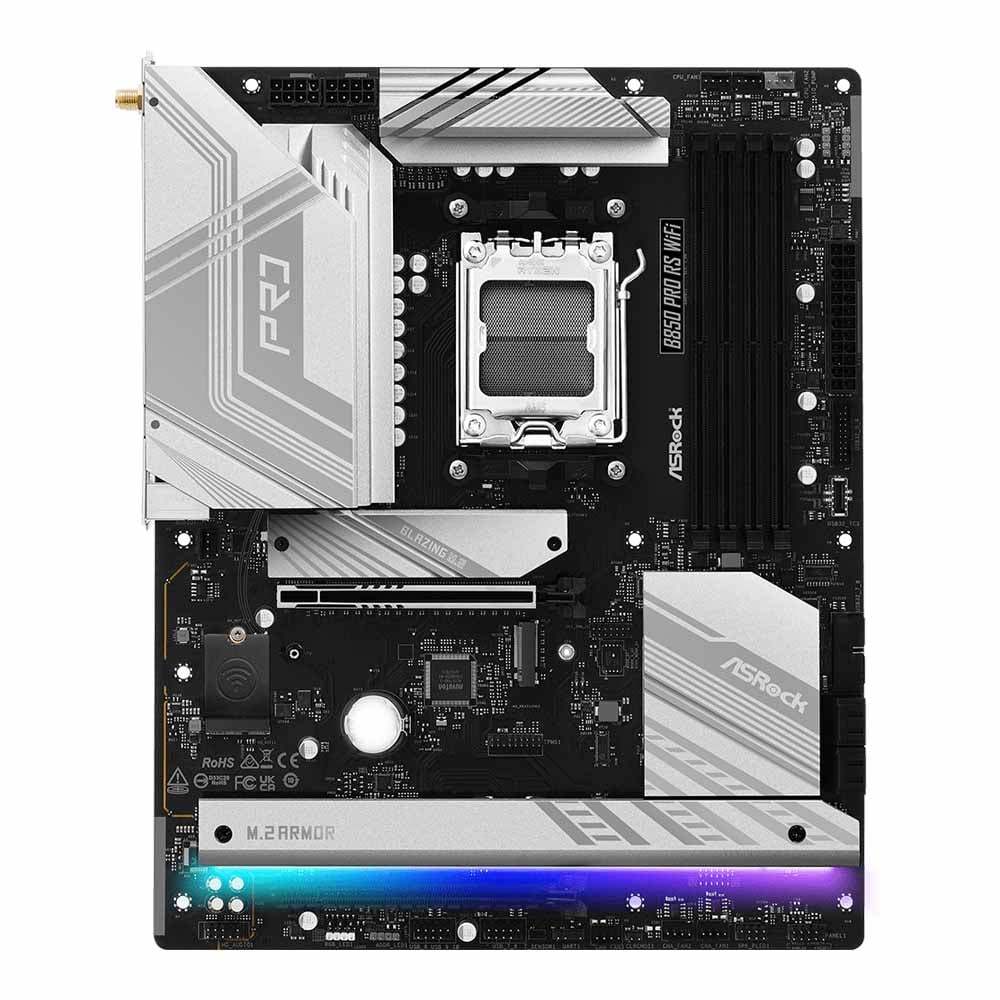

MAINBOARD (เมนบอร์ด) ASROCK B850 PRO RS WIFI (AMD SOCKET AM5 DDR5 ATX)

• Socket AM5 for AMD Ryzen 7000, 8000, 9000 Series Processors
• AMD B850
• DDR5, 4 x DIMM
• 1 x HDMI
• 4 x M.2
• 4 x SATA3
• 1 x USB 3.2 Gen 2x2 Type-C header (front)
• 1 x USB 3.2 Gen 2 Type-C (rear)
• 1 x USB 3.2 Gen 1 Type-C (DP-alt mode) (rear)
• 4 x USB 3.2 Gen 1 Type-A (rear)
• 2.5 Gigabit LAN
• Wi-Fi 6E
• Bluetooth 5.2

SPECIFICATION

Model : B850 Pro RS WiFi

Socket : AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge)

Memory Type : DDR5

Memory Slot : 4

Max. Memory Capacity : 256 GB

Memory Speed : 4400 , 4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC)

Graphics:
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)

Audio:
Realtek ALC897 Audio Codec
- 7.1 CH HD Audio
- Nahimic Audio

M.2 : 4 x M.2 Sockets

SATA 3 : 4 Port

RAID :
- Supports RAID 0 and RAID 1 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Expansion Slots : 1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot

LAN : Dragon RTL8125BG 2.5 Gigabit LAN

Wireless :
- 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 with extended 6GHz band* support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2
- Supports MU-MIMO
—
*The Wi-Fi 6E module is supported by Microsoft® Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.

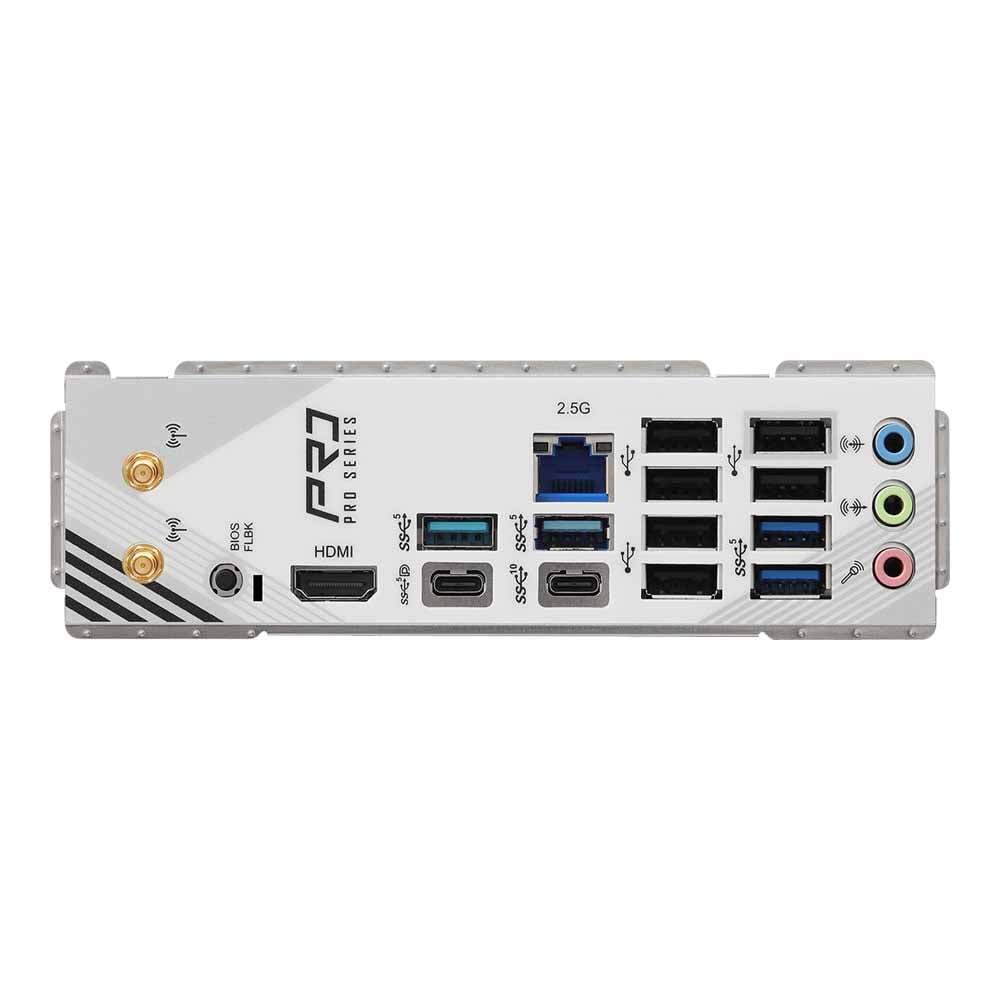

BACK PANEL I/O :
USB 2.0 : 6 Port
USB 3.2:
• 1 x USB 3.2 Gen2 Type-C (10 Gb/s)
• 1 x USB 3.2 Gen1 Type-C (DP-alt mode supports DP1.4a)
• 4 x USB 3.2 Gen1 Type-A Port
HDMI: 1 Port
DisplayPort: - Port
Audio: 3 Port
PS/2: No
Additional:
• 2 x Antenna Mounting Points
• 1 x BIOS Flashback Button
LAN : 1 Port

Form Factor : ATX

Power Connector : 24 + 8 + 8 Pin

Dimension : 30.5 x 24.4 cm

การรับประกัน : 3 Years
