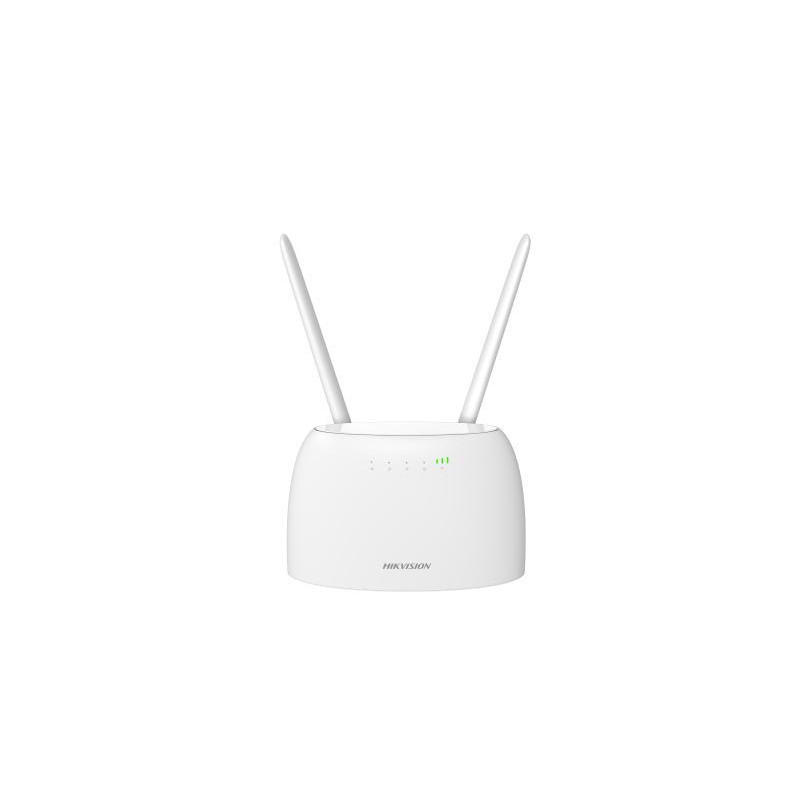

NEW ❗️❗️❗️ HIKVISION DS-3WR4G12C เราเตอร์ใส่ซิม Mobile Router 4G Dual Band

AC1200 4G CAT4 Wireless Router
AC1200 Dual-band Wi-Fi
4G Boost Faster Speed
Instantly Access a Mobile Network With a SIM Card

Product Dimensions (W × H × D)
233.9mm×151.4mm×40.3mm
Package Dimensions (W × H × D)
405mm×307mm×80mm
Net Weight
0.560kg
Packing List
4G LTE Router × 1

Power Adapter × 1

Detachable Antenna × 2

Ethernet Cable × 1

SIM Card Adapter × 1

Quick Start Guide × 1

Regulatory Compliance and Safety Information × 1

Packing Method
Single pack
Working Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
10% to 90% RH non-condensing
Storage Temperature
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity
5% to 90% RH non-condensing
Installation Mode
Desktop installation
Max. Power Consumption
≤ 9 W
Gross Weight
0.620 kg
Wireless Parameter
Max. Transmission Rate Of Air Interface
≤ 1167 Mbps

2.4 GHz: 300 Mbps

5 GHz: 867 Mbps

Wireless Standard
IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
Working Frequency Band
2.4 GHz，5 GHz
Transmitting Power
16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
Wireless Performance
2*2 MIMO supported
Receiving Sensitivity
-58 ± 2 dB@AC80 -MCS9

-84 ± 2 dB@AC80 -MCS0

Antenna
2 high gain antennas
Network Type
LTE CAT.4
Mobile Standards
FDD LTE, TDD-LTE,WCDMA
Mobile Bands
4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
4G Speed
DL: 150 Mbps, Upload: 50 Mbps
Hardware Parameter
Network Interface
2 × RJ45, 10/100 Mbps auto-negotiation
LED Indicator
power LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
รีเซ็ต
Reset button*1
Power Supply Method
9 VDC, 1 A power adapter power supply
Power Specifications
9 VDC, 1 A
Software Function
Application Function
3G/4G Route Mode, Wireless Router Mode, and AP Mode supported

DHCP Server supported

Guest Network Configuration supported

Signal Adjustment supported

WiFi Schedule supported

Security Mode
WPA-PSK, WPA2-PSK, WPA and WPA2 supported
Security Mechanism
Hide SSID
Management Method
Web
Upgrade
Web
System Log
System log
