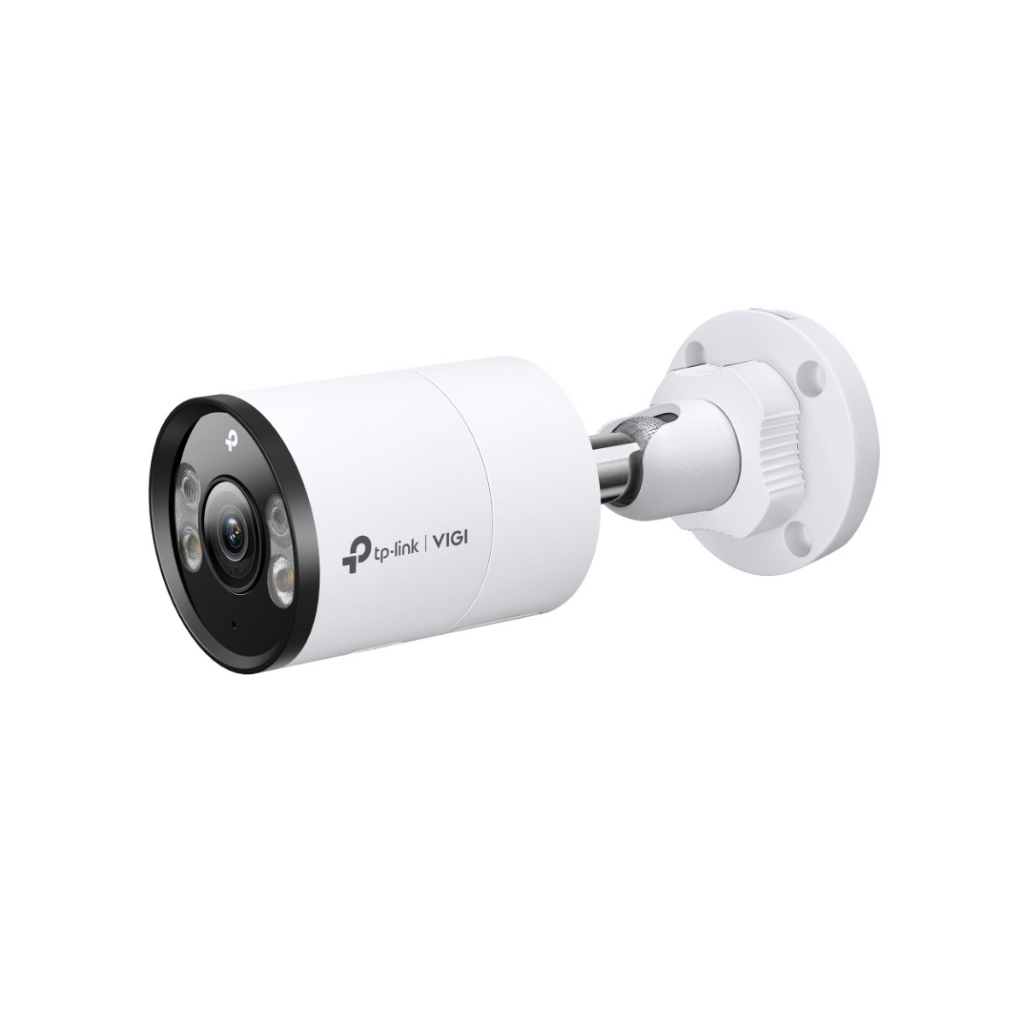

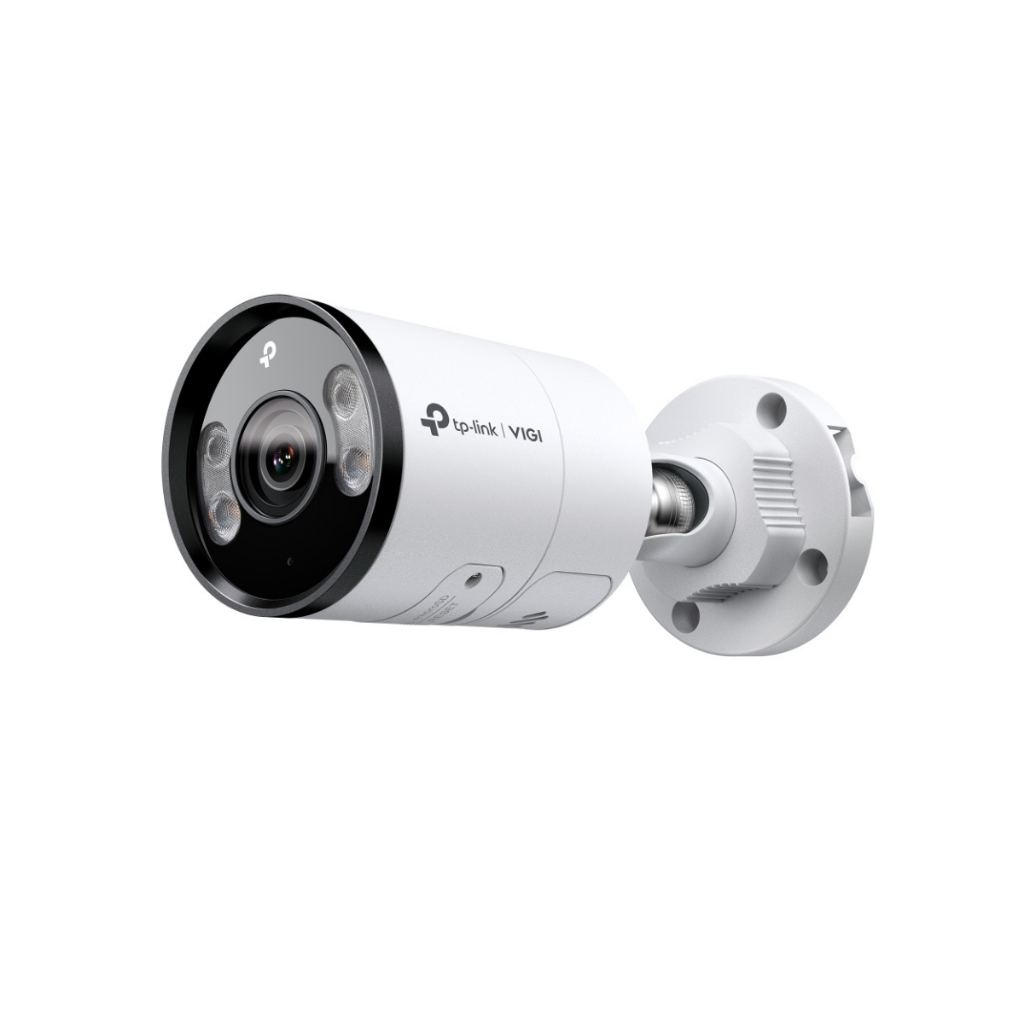

🛵มีส่งด่วน💨 TP-Link VIGI INSIGHT S385 2.8MM 8MP Bullet Network Camera กล้องวงจรปิด รับประกัน 3 ปี

CAMERAImage Sensor1/2.7” Progressive Scan CMOSShutter Speed1/3 to 1/10000 sSlow ShutterYesMinimum Illumination0.005 Lux; 0 Lux with IR/White lightDay/Night MechanismIR Cut FilterDay/Night SwitchUnified/ Scheduled/ Auto
LENSTypeFixed Focal LensFocal Length2.8/4 mmApertureF1.6FOV• 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

• 4 mm:
Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°Lens MountM12*P 0.5DORI Distance• 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

• 4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft)
Angle Adjustment (Manual)RangePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATORIR LED• Quantity: 2
• Range: 30m
• Wavelength: 850nmWhite LED• Quantity: 2
• Range: 30mIlluminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEOMax. Resolution3840 X 2160Main Stream• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.Sub-Stream• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.Bit Rate ControlCBR, VBRVideo Compression• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264H.264 TypeHigh ProfileH.264+Main Stream SupportedH.265 TypeMain Profile*H.265+Main Stream Supported*Video Bit Rate• Main Stream: 256 Kbps to 8 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
ImageImage Settings• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light

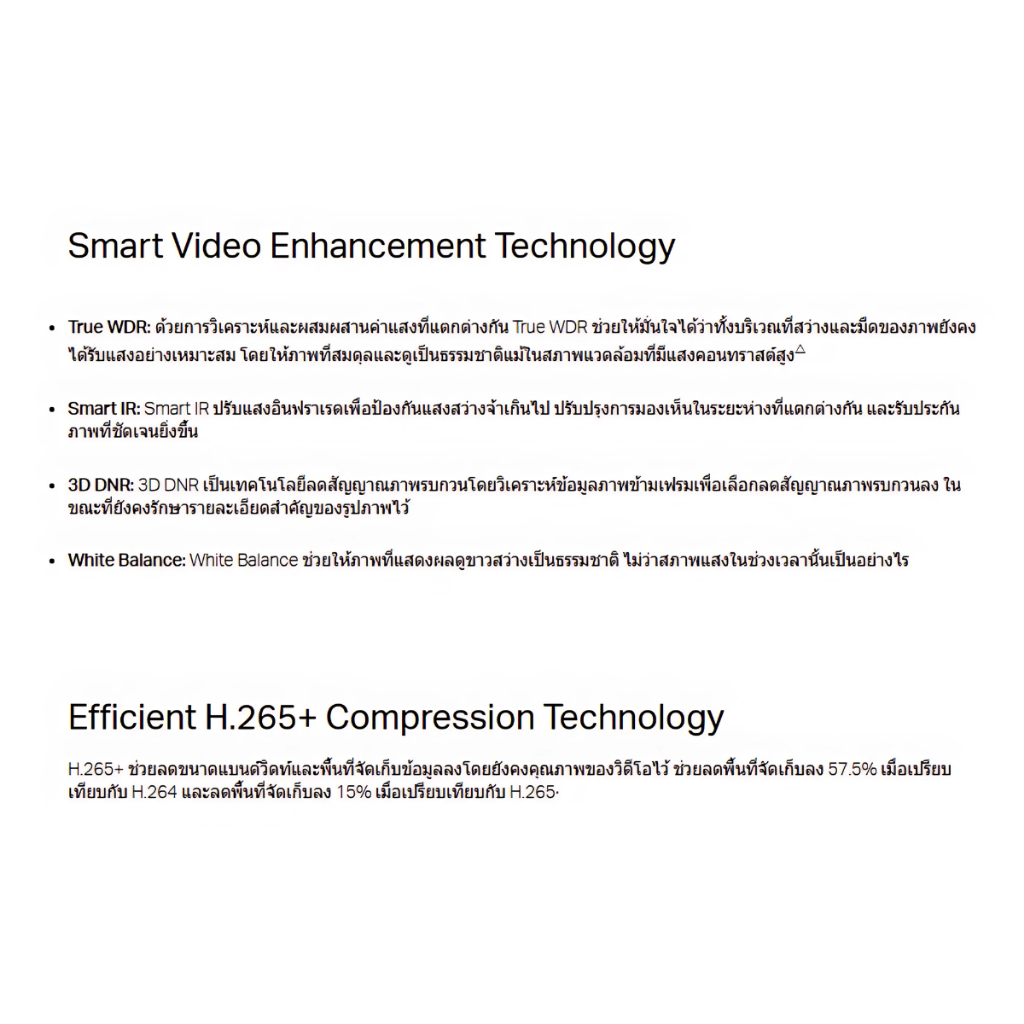

• HLC Adjustable by Client SoftwareImage EnhancementBLC/3D DNR/HLC/SmartIRWide Dynamic Range120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.SNR≥ 52 dBImage Parameters SwitchYesPrivacy MaskUp to 4 MasksROI1 RegionOSD SettingYes
AUDIOAudio CommunicationTwo-Way AudioAudio InputYesAudio OutputYesAudio CompressionYesAudio Sampling Rate8KHzEnvironment Noise FilteringYesAudio Bit Rate64 Kbps(G.711 alaw)
NETWORKProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARPONVIFYesAPIONVIF (Profile S/T/G)Simultaneous Live View3 Main Streams & 3 Sub-StreamsClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS，VIGI Cloud VMSWeb Browser• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and aboveCloudYesSecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENTSmart Event
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light FlashingLinkage MethodN/AOutput NotificationMessage Push
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§

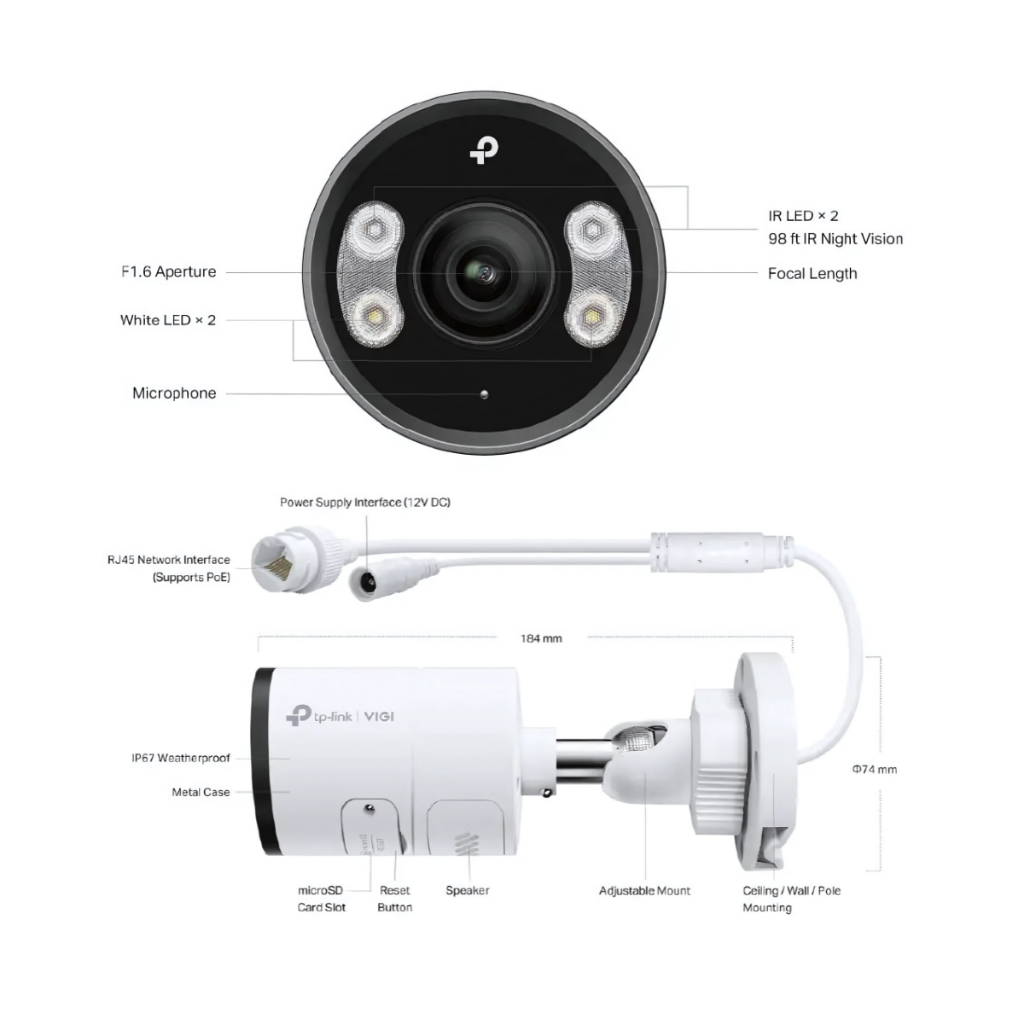

INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)

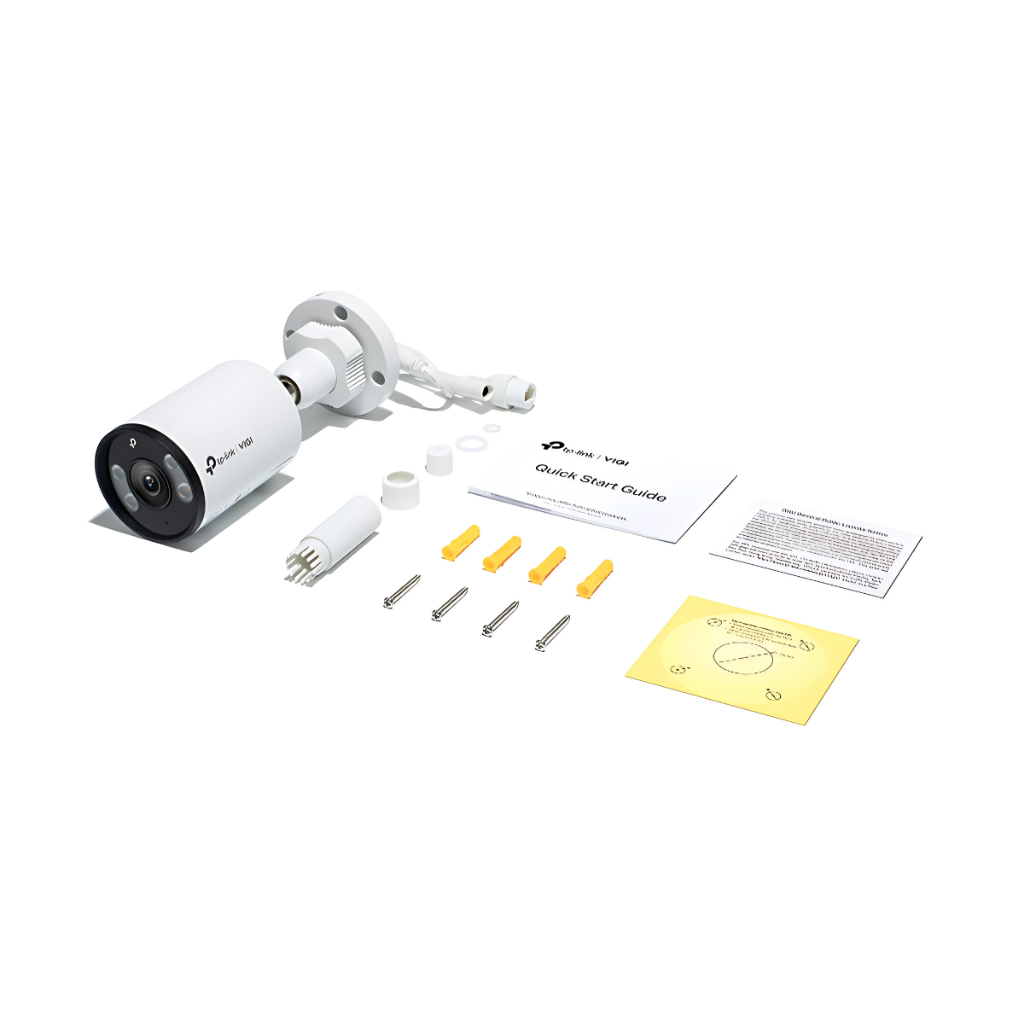

Package Content
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Metal
Net Weight0.525 Kg
Power Supply
• 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 11.5 W
Protection IP67
Product Dimensions (L x W x H) 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
