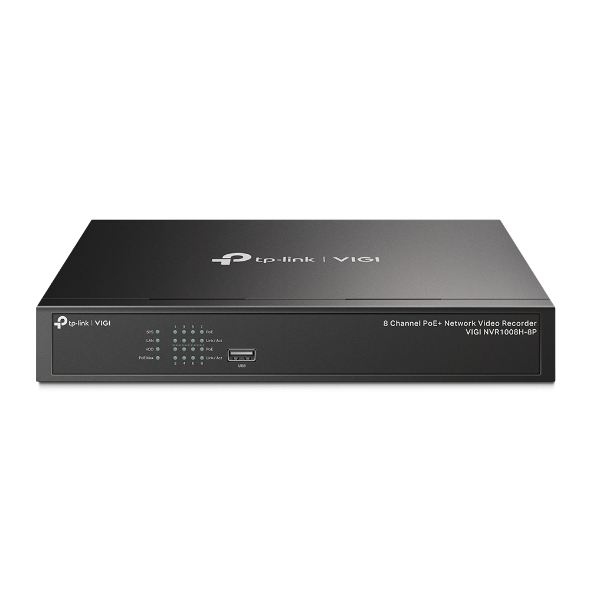

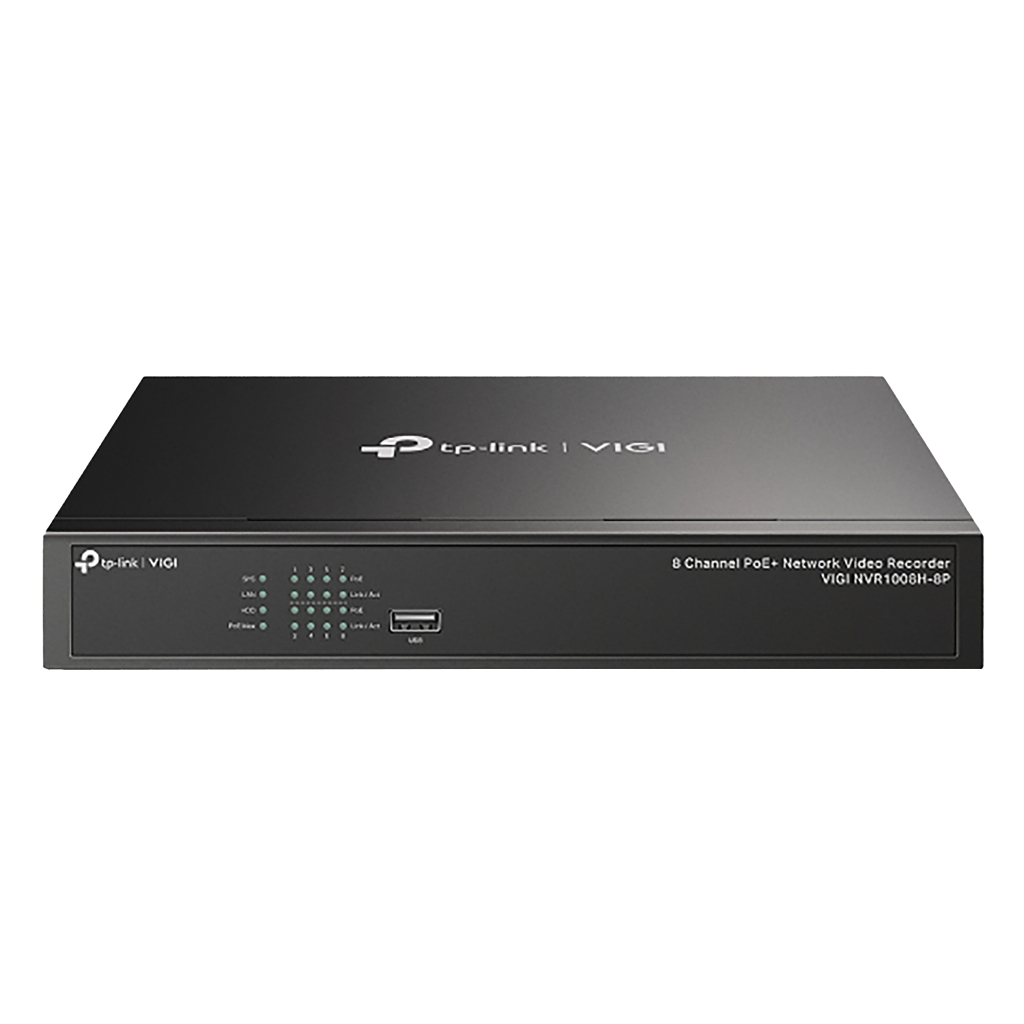

TP-Link VIGI 8 Channel (VIGI NVR1008H-8P) PoE+ 53W Network Video Recorder

คุณสมบัติ NVR 8CH. VIGI#NVR1008H-8P
Brand
• TP-LINK
Model
• NVR1008H-8P
Video/Audio input
• Video Input : 8-Channel IP Video
• Video compression : H.265+/H.265/ H.264+/H.264
• Audio input : 1CH
• Audio Compression : G.711A/G.711U/G.726
Video/Audio output
• Record Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Live View/Playback Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• HDMI Output Resolution : 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• VGA Output Resolution : 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Video Output Mode : HDMI/VGA Simultaneous Output
Decoding
• Record Mode : Manual Recording, Scheduling Recording, Motion Detection Recording
• Playback Mode : Instant Playback, Regular Playback, Tag Playback, Event Playback
• Backup Mode : Regular Backup, Video Clip Backup
• Playback Function : Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network
• Protocol : TCP/IP, DHCP, DNS, NTP, UPnP
• Incoming Bandwith : 80 Mbps
• Outgoing Bandwidth : 60 Mbps
• Mobile Phone Access : Android, iOS
• Web Browser : Chrome (57+), Firefox (52+), Edge (91+)

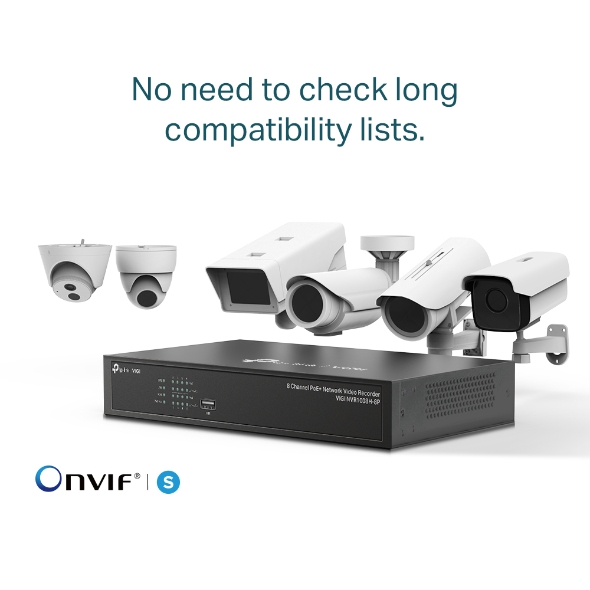

• Interoperability : ONVIF, CGI

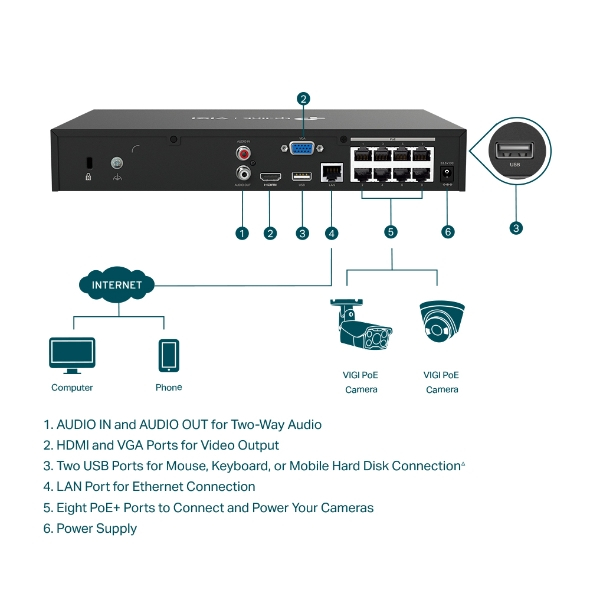

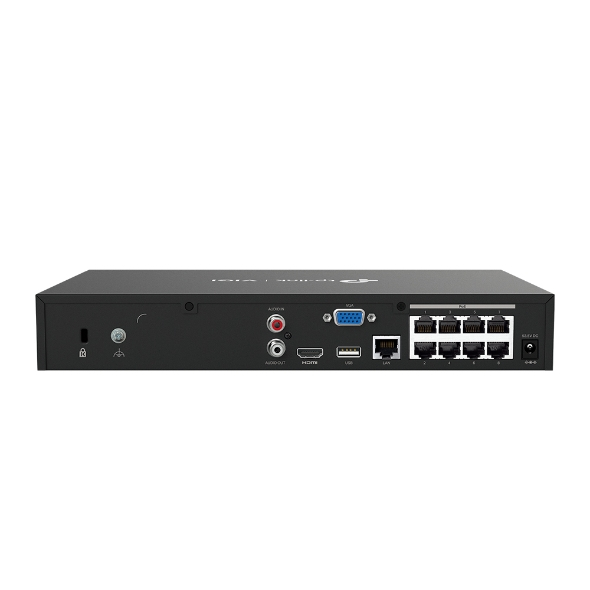

Interface
• Network Interface : 1x RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• PoE : 8x RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface : 2× USB 2.0
• Audio Interface : 1, Audio In; 1, Audio Out
• Power : 1× DC Jack
• Reset Button : 1
• HDMI : 1
• VGA : 1
Storage
• SATA : 1x SATA Interface
• Capacity : Up to 16 TB
Power Supply
• 53.5V DC/1.31A
Power Consumption
• 2.38 W (without disk)
• 12.94 W (with disk)
Working Environment
• Operating Temperature : -10–55 °C
• Storage Temperature : -40–70 °C
• Storage Humidity : 10%~90% RH Non-Condensing
ONVIF
• YES

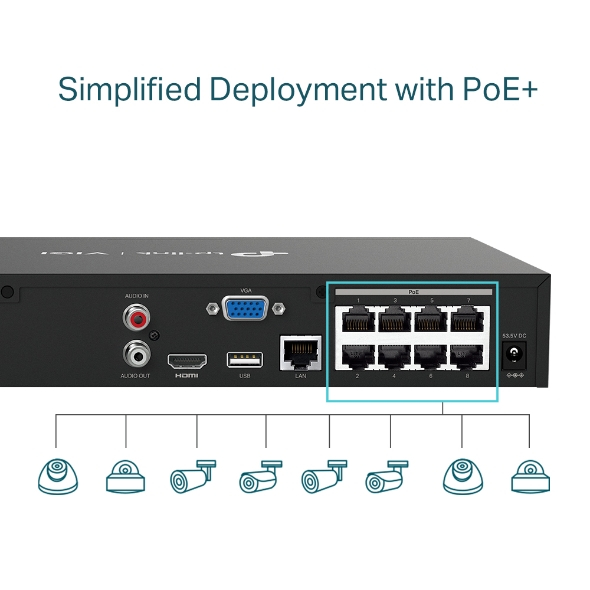

PoE
• Standard : 802.3at/af Compliant
• Interface : 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• PoE Budget : 53 W Available for All PoE+ Ports, 30 W Max per Port
Package Contents
• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
Dimension (W x D x H)
• 29.40 x 18.00 x 4.40 cm
Net Weight
• 1.10 KG
Package Dimension (W x D x H)
• 25.00 x 40.00 x 8.00 cm
Gross Weight
• 2.18 KG
Volume
• 8,000.00 cm3
