POWER SUPPLY (อุปกรณ์จ่ายไฟ) VENUZ 600W LPW12-600W - Black

VENUZ ATX Switching Power Supply LPW12-600W - Black

Features:
Intel ATX12V Version V2.31
120 mm Hydraulic Bearing Fan

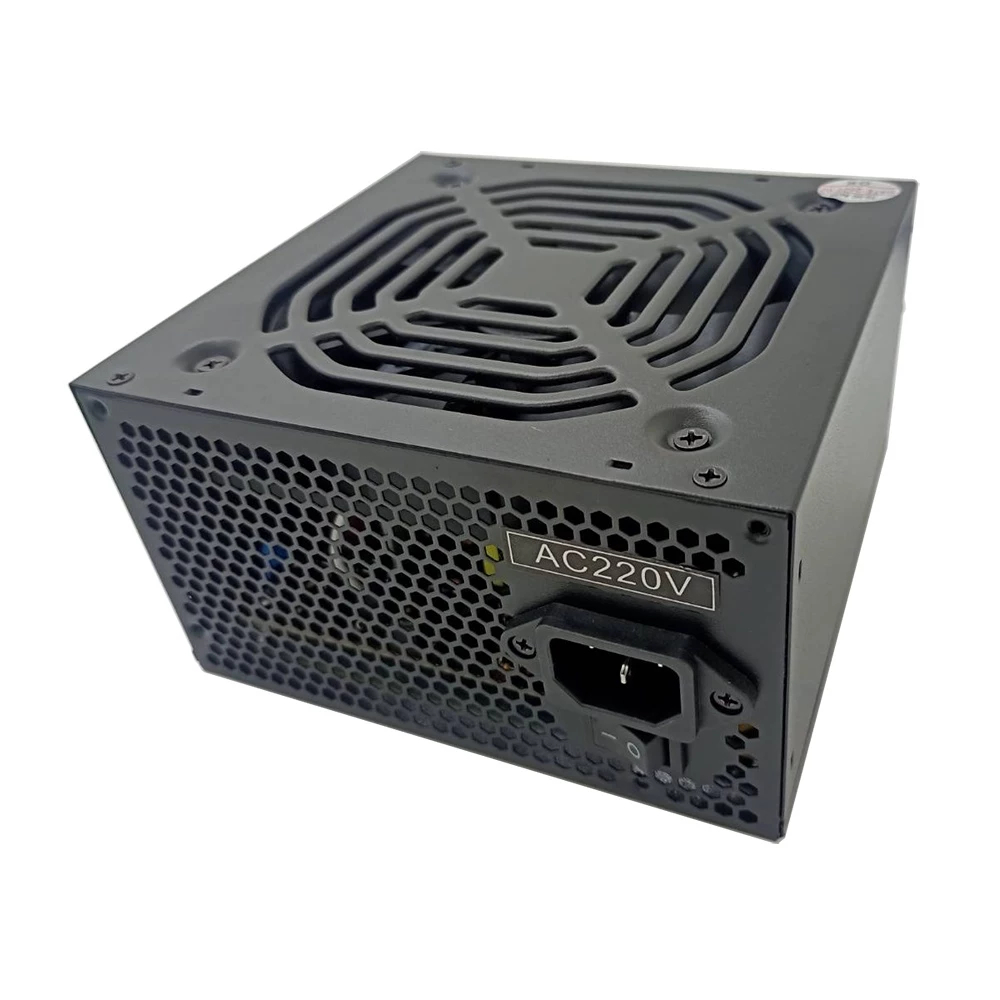

AC 230V with rear On/Off power down button
High-Quality Components
1 Year Warranty

Specifications:
Form Factor: ATX
Dimensions: 140mm x 150mm x 85mm
Cooling System: 120 mm Hydraulic Bearing Fan (LPW12-600W)
AC Input: 220 VAC 3A 50Hz
DC Output: +3.3V +5V +12V1 -12V +5VSB
Continuous Power (W): 200 Watts
Power Good Signal: 100-500ms
Hold Up Time: >16ms
Efficiency: >75%
MTBF: 30,000 Hours
Continuous Output Rate Temperature: 25°C

Protection:
Over Voltage Protection (OVP),
Under Voltage, Over Power Protection (OPP)
Over Temperature Protection (OTP)
Short Circuit Protection (SCP)

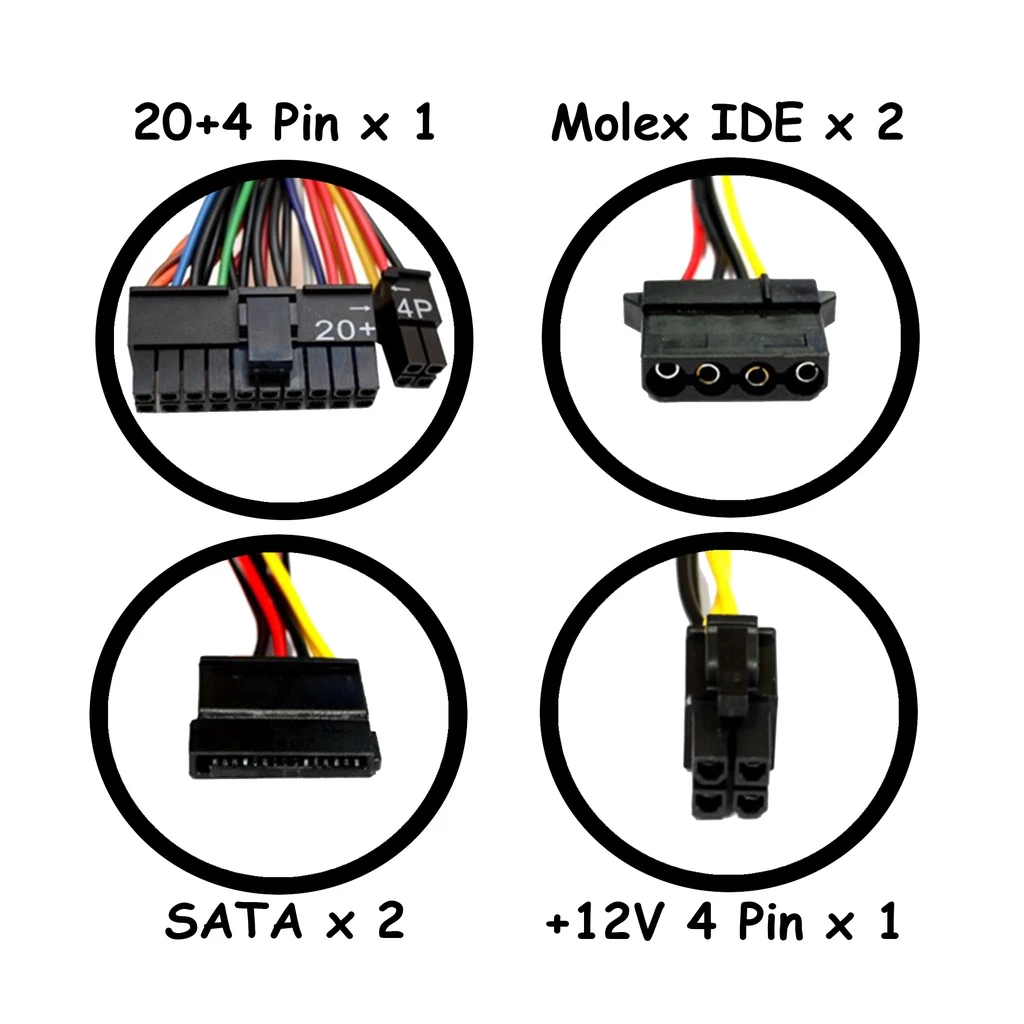

Connectors:
20+4 Pin Main Connectors: 1
4-Pin 12V Connectors: 1
SATA Connectors: 2
4-Pin Molex Connectors: 2

Connectors Length:
20+4Pin: 300mm
B4P+SATA: 300mm +150mm
4P: 350mm

Carton Size (HxWxD): 160x90x230mm
Weight: N.W. 0.7kg / G.W. 0.9kg

Remark:
What’s In The Box: VENUZ PSU LPW12-600W (120mm Fan) & Power Cord
