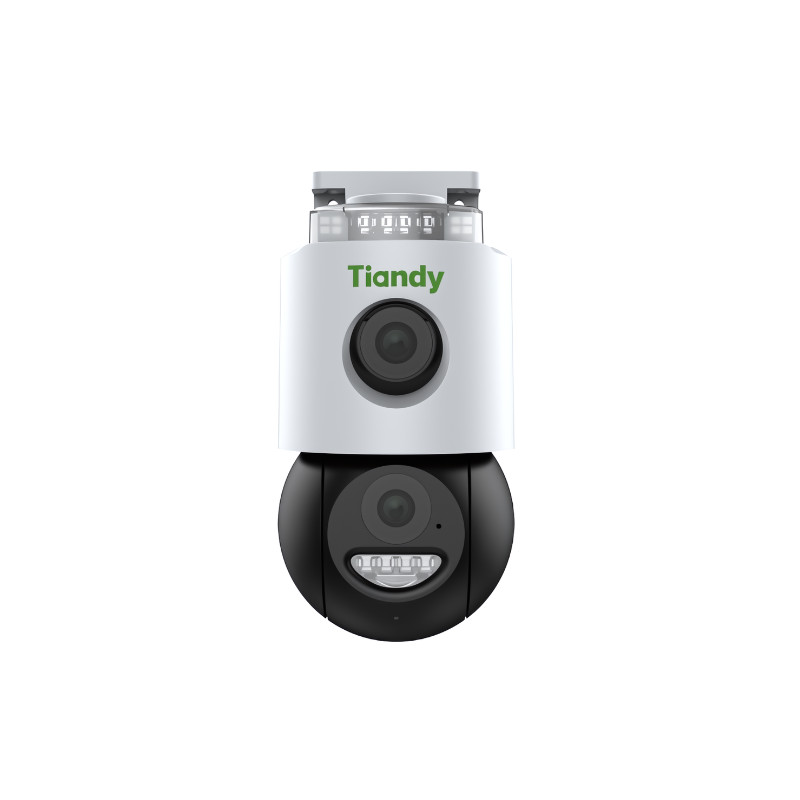

🛵มีส่งด่วน💨 TIANDY TC-H363N 4MM 6MP Color Maker PT Camera กล้องวงจรปิด รับประกัน 3 ปี

SPECIFICATIONS
Camera
Image Sensor 1/3"CMOS
Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR DWDR
S/N >40dB
Angle Adjustment Panorama:-60~60°(P)
Details:0~345°(P); Panorama:5~15°
Details:-15~90°

Lens
Lens Type Fixed focal lens
Focal Length 4mm
Lens Mount M12
Aperture Range F1.6
Aperture Type Fixed
Field of View Panorama:81.3°(H)
Detail:81.3°(H); Panorama:44.4°(V)
Detail:44.4°(V); Panorama:94.4°(D)
Detail:94.4°(D)
DORI Distance Detect:59.26m
Observe:23.52m
Recognize:11.85m
Identify:5.93m

Illuminator
IR LEDs Panorama:4
Detail:4
IR Distance Up to 50m
Wavelength 850nm
White LEDs Panorama:4
Detail:4
Whitelight Distance 15m
Red and Blue Alarm Flash Yes

Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~4Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz/16kHz

Max. Resolution Panorama:3MP,2304×1296@15fps
Detail:3MP,2304×1296@15fps
Main Stream Panorama:
PAL:15fps(2304×1296, 1920×1080, 1280×720, 704x576, 640x480)
NTSC:15fps(2304×1296, 1920×1080, 1280×720, 704x576, 640x480)
Detail:
PAL:15fps(2304×1296, 1920×1080, 1280×720, 704x576, 640x480)
NTSC:15fps(2304×1296, 1920×1080, 1280×720, 704x576, 640x480)
Sub Stream Panorama:
PAL:15fps(704×576, 704×288, 640×360, 352×288)
NTSC:15fps(704×480, 704×240, 640×360, 352×240)
Detail:
PAL:15fps(704×576, 704×288, 640×360, 352×288)
NTSC:15fps(704×480, 704×240, 640×360, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight
Lamp/Filament Lamp/Lock White Balance
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48
characters or 16 Chinese characters per region;16*16/32*32/48*48
Privacy Mask 4 black static areas
Defog Yes

Feature
Exceptions Alarm Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict
Linkage Method Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center;
Alarm Output
Auto-Tracking Yes

Network
ANR Yes
Protocols HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast; FTP
System Compatibility SDK; CGI
Remote Connection ≤2
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Wi-Fi
Transmission Distance Up tp 50m( based on actual environment)
Wireless Standard IEEE802.11b/ 802.11g/802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz
Wi-Fi Security WPA-PSK/WPA2-PSK

Interface
Communication Interface 1*RJ-45 (10/100 Base-T)
Built-in Mic Yes
Built-in Speaker Yes
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB

General
Web Client Language 3 languages
Simple Chinese/English/Vietnamese
Operating Temperature -30℃~60℃(-22℉~140℉)
Operating Humidity ≤95%RH
Storage Temperature -30℃~60℃(-22℉~140℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 13W
Protection Surge4000V; ESD6000V; IP66
Boundary Dimensions 133(L)102(W)209(H)mm
Package Dimensions 160(L)160(W)215(H)mm
GrossWeight 0.83kg
