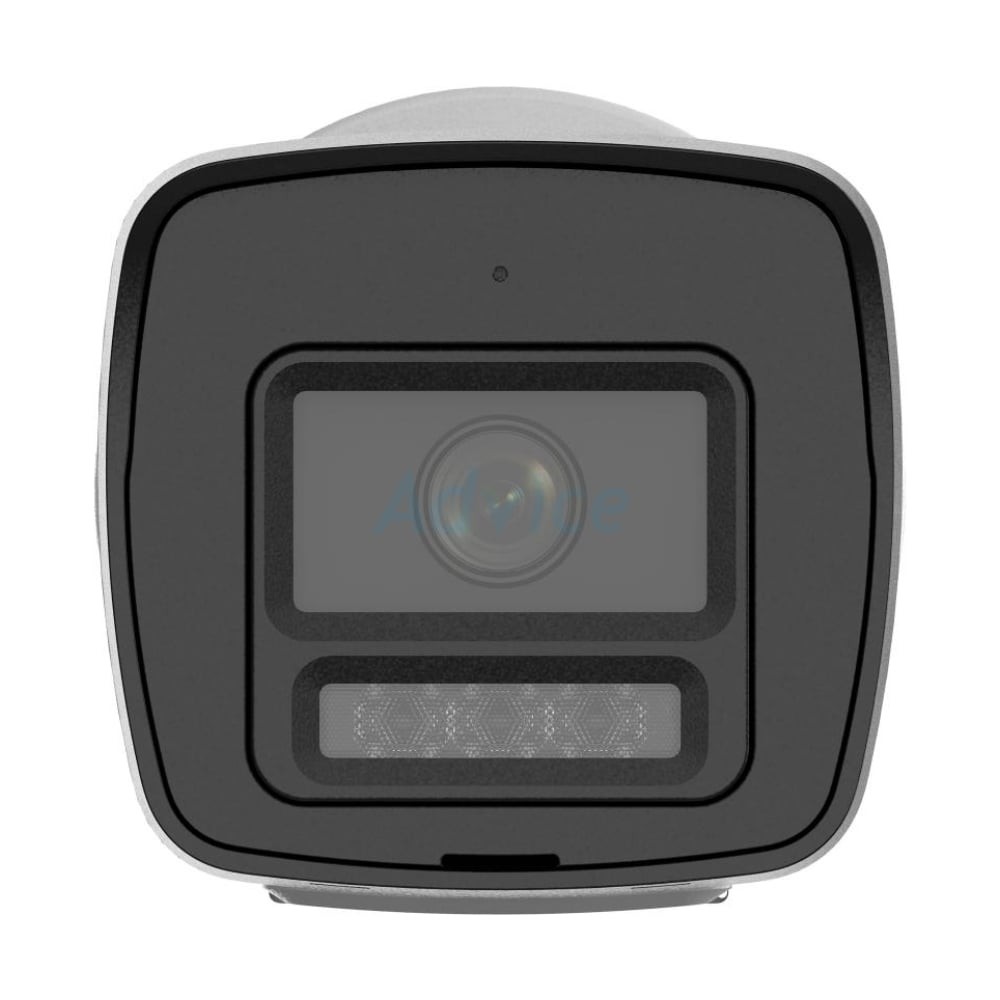

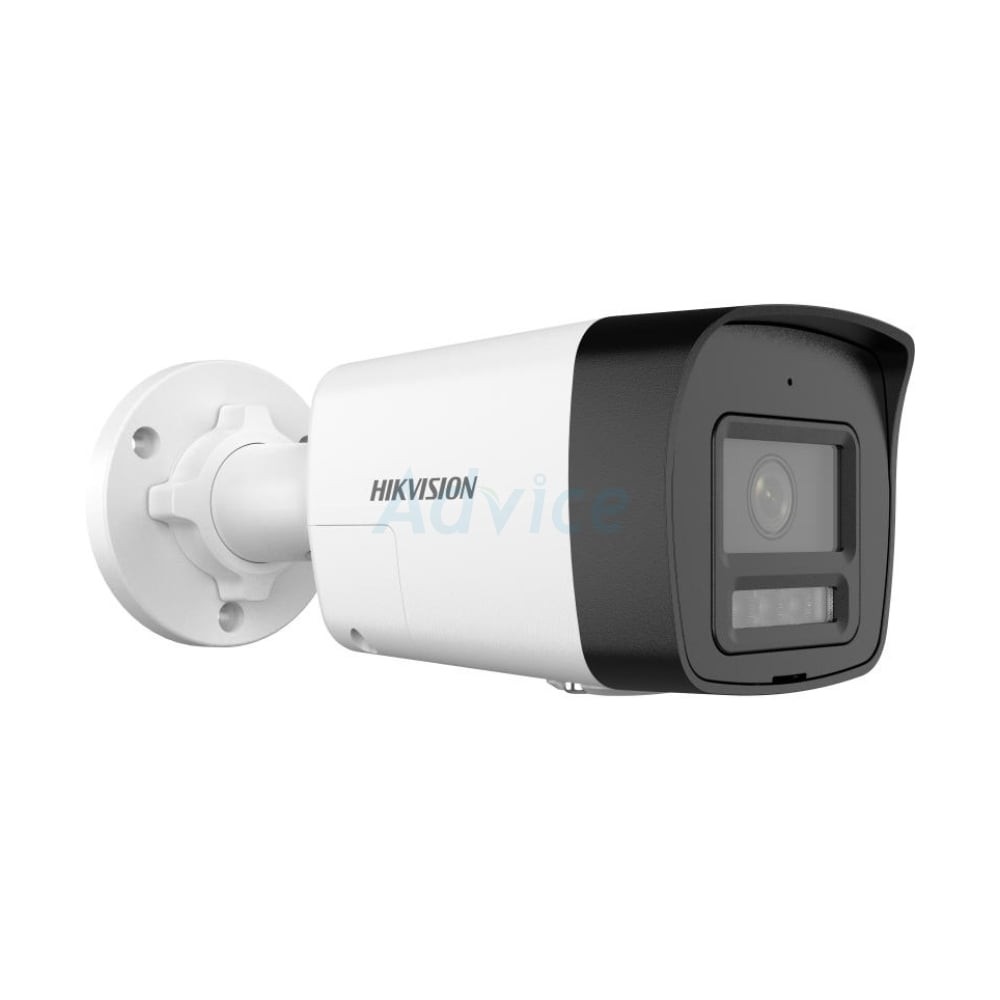

CCTV 2.8mm IP Camera HIKVISION#DS-2CD1023G2-LIUF/SL - A0160562

Brand : HIKVISION
Model : DS-2CD1023G2-LIUF/SL
Image Sensor : 2MP , 1/2.9" Progressive Scan CMOS
Lens : Lens Type : 2.8mm
Iris Type : Fixed
Aperture : F1.6
Lens Mount : M12
Focus : NONE
Zoom : NONE
Angle of View : horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
Adjustment Angle : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Shutter : 1/3 s to 1/100,000 s
Minimum Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Noise Reduction : Yes
IR : 30m
Day/Night : Day,Night,Auto,Schedule
IR cut filter
S/N : N/A
WDR : Digital WDR
Video Resolution : Support on-board storage up to 512 GB (SD card slot)
Video Compression : H.265+
Frame Rate : 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
User/Host : Up to 32 users
3 user levels: administrator, operator, and user
Storage : Support on-board storage up to 512 GB (SD card slot)
Interface : 1x RJ45 10 M/100 M self-adaptive Ethernet port
1x built-in microphone
Reset Button : N/A
Alarm : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
ONVIF : NONE
Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Function : Heartbeat,anti-banding,mirror,password protection,password reset via email
Power : 12 VDC ± 25%
Power Consumption : 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 9 W
Working Environment : Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Ingress Protection : IP67: IEC 60529-2013
Package Content : N/A
Dimension (W x D x H) : 17.90 x 6.74 x 6.91 cm
Net Weight : 0.31
Package Dimension (W x D x H) : 12.00 x 22.00 x 12.00 cm
Gross Weight : 0.47
Volume : 3,168.00
ประกัน : 3 ปี
