APC Easy UPS SRV1KI-E 1000VA/ 900 Watt Tower (SRV1KI-E)

Overview
Presentation
• High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time
• Usually in Stock
Main
รันไทม์สําหรับโหลด 900 W ต่ำสุด-สูงสุด: 90-900 W
• 3min 12s
ความจุสูงสุดที่ใช้
• 100 %
Main Input Voltage
• 230 V
product or component type
• Uninterruptible power supply (UPS)
Other Input Voltage
• 220 V
• 240 V
Main Output Voltage
• 230 V
Other Output Voltage
• 220 V
• 240 V
Rated power in W
• 900 W
Rated power in VA
• 1000 VA

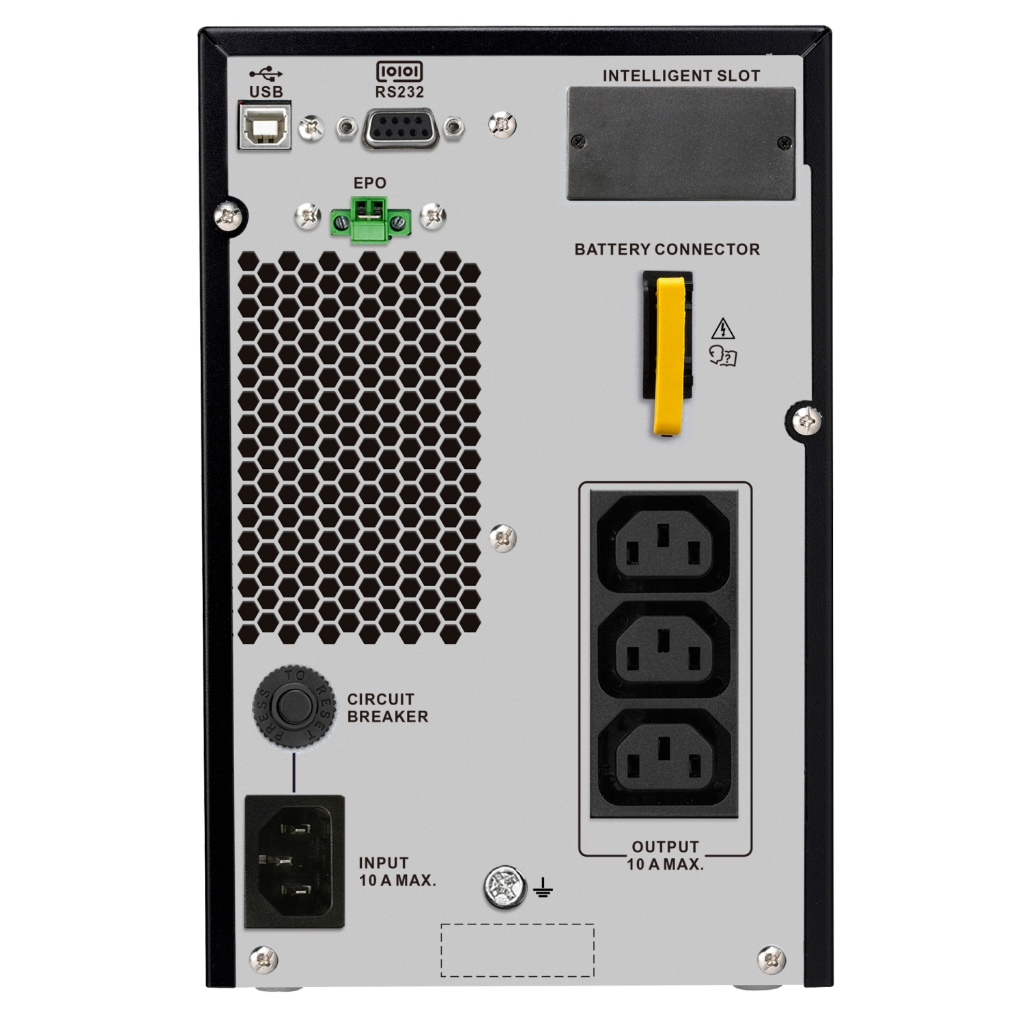

Input Connection Type
• IEC 60320 C14
output connection type
• 3 IEC 60320 C13
Cable length
• 1.5 m
Number of cables
• 1
Provided equipment
• 1 IEC 60320 C13 to Schuko power cable
• 1 IEC 60320 C13 to C14 power cable
• 1 USB cable
• 1 RS-232 configuration cable
• user manual
Range of product
• Easy UPS On-Line
Batteries & Runtime
รันไทม์
• View Runtime Graph
ประสิทธิภาพ
• View Efficiency Graph
Battery type
• Lead-acid battery
Battery voltage
• 24 V
Number of battery filled slots
• 0
Number of battery free slots
• 0
Battery recharge time
• 4 h
Battery life
• 3…5 year(s)
Replacement battery
• APCRBCV203
Battery charger power
• 30 W rated
General
Max runtime
• 3 min
Number of power module filled slots
• 0
Number of power module free slots
• 0
Redundant
• No
Physical
Colour
• Black (RAL 7010)
Height
• 22.3 cm
Width
• 14.5 cm
Depth
• 28.8 cm
net weight
• 9.6 kg
mounting location
• Front
Mounting preference
• No preference
mounting mode
• Not rack-mountable
Two post mountable
• 0
USB compatible
• Yes
Mounting position
• Vertical
Input
Input voltage limits
• 110...285 V half load
• 180...285 V full load
Network frequency
• 40...70 Hz auto sensing
Output
Maximum configurable power in VA
• 1000 VA
Maximum configurable power in W
• 900 W
Output frequency
• 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion
• 3 %
UPS type
• Double conversion online
Wave type
• Sine wave
Efficiency
• 88 % (full load)
Additional information
• Configurable for 220 : 230 or 240 nominal output voltage
Bypass type
• Internal bypass (automatic and manual)
Crest factor
• 3 : 1
Conformance
Product certifications
• CE
• UKCA
• TISI
Standards
• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018
• Environmental
Ambient air temperature for operation
• 0…40 °C
Relative humidity
• 0…95 % non-condensing
Operating altitude
• 0...3000 m
Ambient air temperature for storage
• -20…50 °C
Storage Relative Humidity
• 0…95 % non-condensing
Storage altitude
• 0…15000 m
Acoustic level
• 50 dBA
heat dissipation
• 380 Btu/h
IP degree of protection
• IP20
Communications & Management
• Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Free slots
• 1
control panel
• Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate
• 945 J
Packing Units
Unit Type of Package 1
• PCE
Number of Units in Package 1
• 1
Package 1 Height
• 33 cm
Package 1 Width
• 23.5 cm
Package 1 Length
• 36.5 cm
Package 1 Weight
• 10.9 kg
Contractual warranty
Warranty
• 2 years repair or replace
