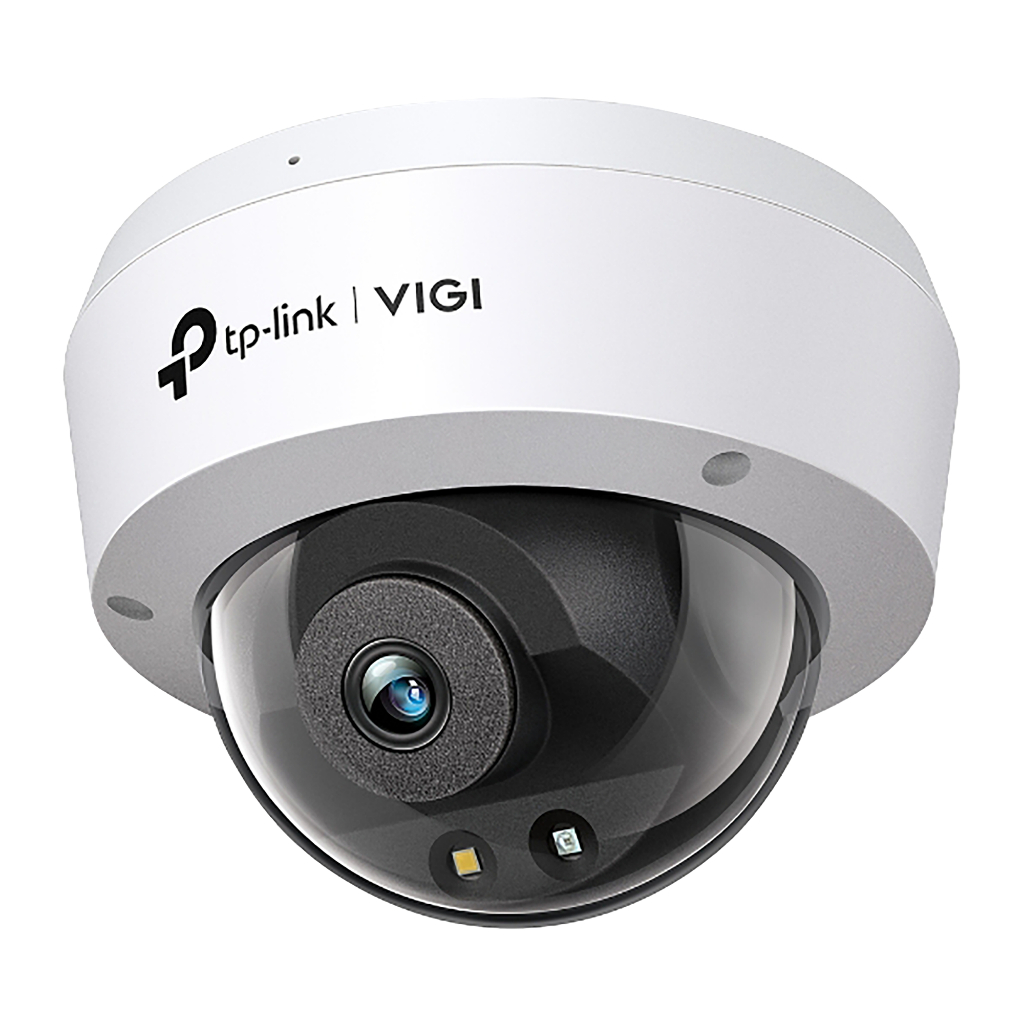

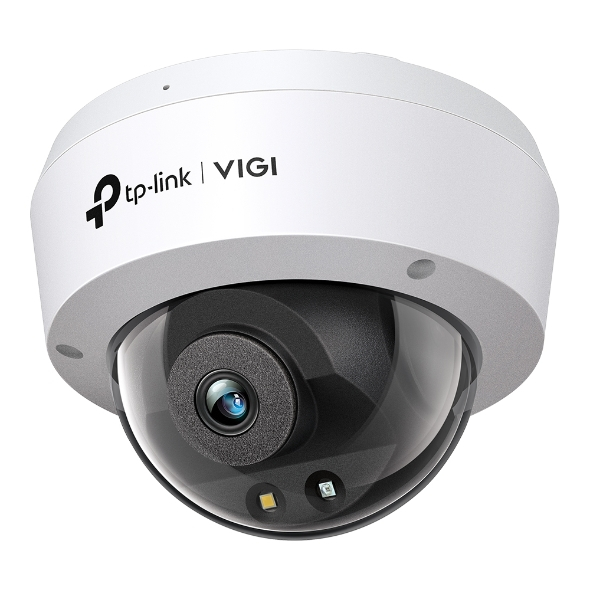

TP-Link VIGI C250 5MP Full-Color Dome Network Camera (VIGI C250)

CAMERA
Image Sensor
• 1/2.7” Progressive Scan CMOS
Shutter Speed
• 1/3 to 1/10000 s
Slow Shutter
• Yes
Minimum Illumination
• 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism
• IR Cut Filter
Day/Night Switch
• Unified/ Scheduled/ Auto
LENS
Type
• Fixed Focal Lens
Focal Length
• 2.8/4 mm
Aperture
• 2.8 mm: F1.6
• 4 mm: F1.6
FOV
• 2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
• 4mm:
Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount
• M12*P 0.5
DORI Distance
• 2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
• 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range
• Pan: 0° to 360°, Tilt: 0° to 85°
ILLUMINATOR
IR LED
• Quantity: 1
• Range: 30m
• Wavelength: 850nm
White LED
• Quantity: 1
• Range: 30m
Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
• 2880 X 1620
Main Stream
• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
• CBR, VBR
Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type
• Main Profile/High Profile
H.264+
• Main Stream Supported
H.265 Type
• Main Profile△
H.265+
• Main Stream Supported△
Video Bit Rate
• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement
• BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
• 120 dB
SNR
• ≥ 52 dB
Image Parameters Switch
• Yes
Privacy Mask
• Up to 4 Masks
ROI
• 1 Region
OSD Setting
• Yes
AUDIO
Audio Communication
• N/A
Audio Input
• Yes
Audio Output
• N/A
Audio Compression
• Yes
Audio Sampling Rate
• 8KHz
Environment Noise Filtering
• Yes
Audio Bit Rate
• 64 Kbps(G.711 alaw)
NETWORK
Protocol
• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
• SNMP
• IEEE 802.1x
ONVIF
• Yes
API
• Open Network Video Interface (Profile S)
Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
Client
• VIGI App, VIGI Security Manager, Web UI
Web Browser
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud
• Yes
Security
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
• Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection
Basic Event
• Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage
• Memory Card Video Recording, Message Push, White Light Flashing
Linkage Method
• N/A
Output Notification
• Message Push
Deep Learning Function
People & Vehicle Analytics
• Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection
• Supports Simultaneous Detection and Capture of Human Body and Vehicle
Face Capture
• N/A
Face Comparison
• N/A
INTERFACES
Network Interface
• 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
• N/A
Reset Button
• Yes
Power
• DC Power Port
On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone
• Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
• N/A
Audio
• N/A
GENERAL
Operating Temperature
• -30–60 °C
Storage Temperature
• -40–60 °C
Operating Humidity
• 95% or Less (Non-Condensing)
Storage Humidity
• 95% or Less (Non-Condensing)
Package Contents
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material
• Plastic
Net Weight
• 0.28 Kg
Gross Weight
• 0.47 Kg
Power Supply
• 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug
PoE: 802.3at, class 0, Max. 8 W
Protection
• IP67, IK10
Product Dimensions (L x W x H)
• Φ115x85.7 mm
Certifications
• CE, NTRA, VCCI, KC, BSMI, FCC, IC
