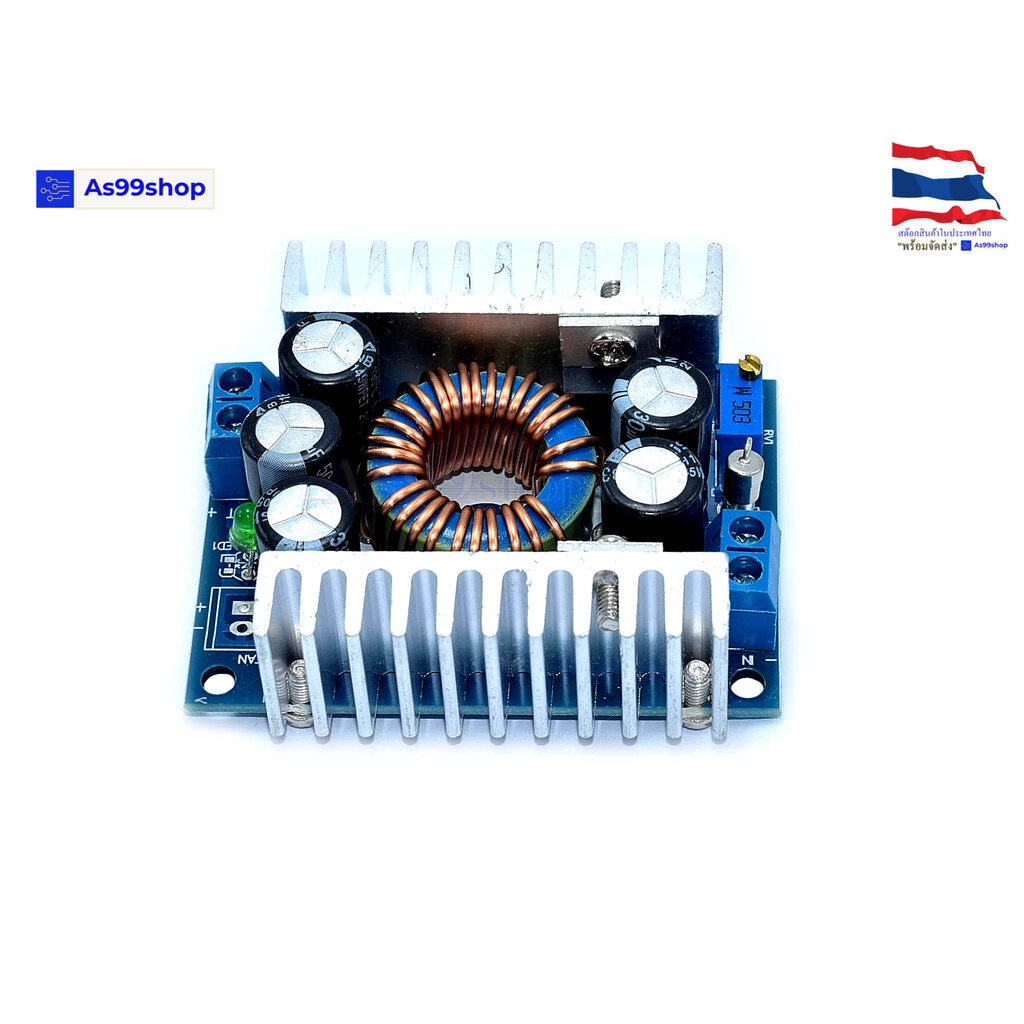

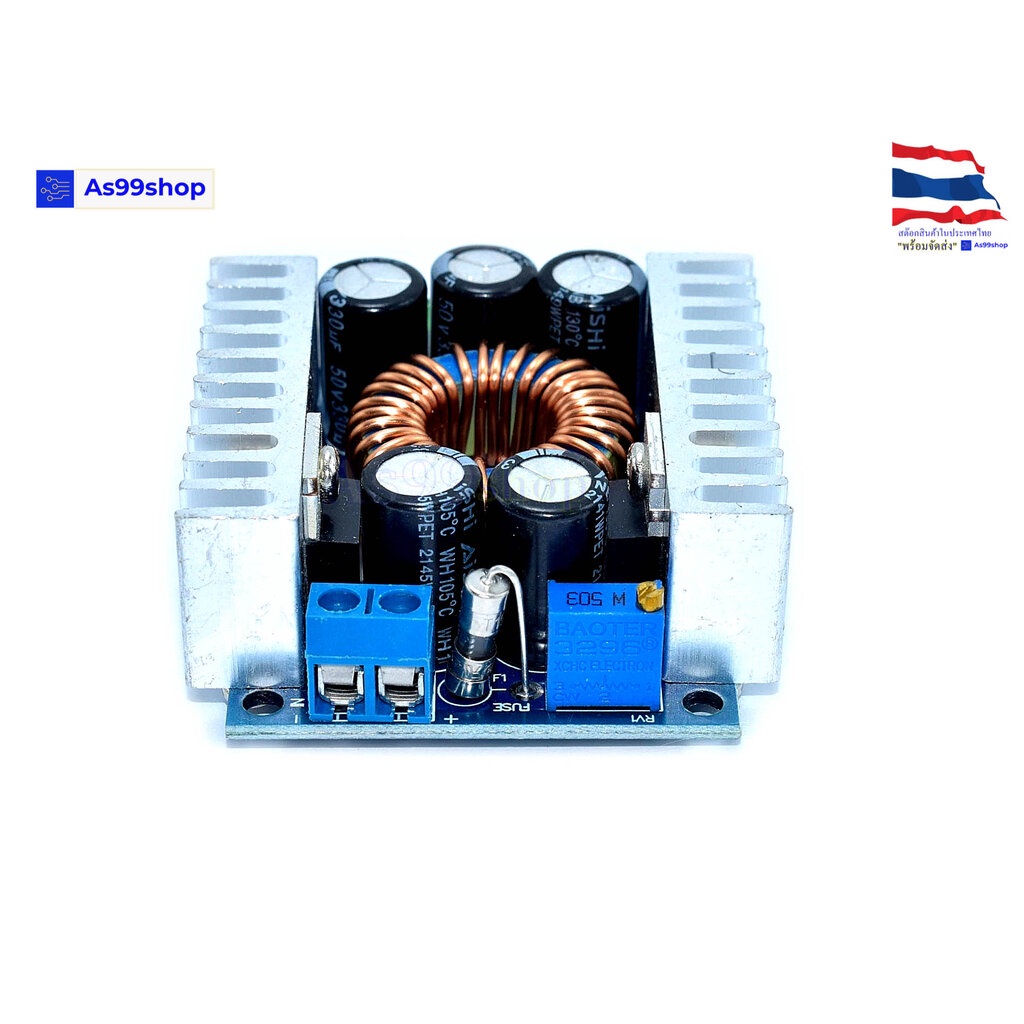

DC-DC High Power Low Ripple 12A โมดูล Step-Down

DC-DC High Power Low Ripple 12A โมดูล Step-Down ที่ปรับได้ 95% โมดูลพลังงานยานพาหนะประสิทธิภาพสูง

Module parameters:

Module name: 12A step-down perfect version

Module properties: non-isolated step-down module (BUCK)
Input voltage: 4.5-30V Please do not exceed 30V input voltage! ! !
Output voltage: 0.8-30V continuously adjustable (default output 5V)
(fixed output can be ordered)
Output current: 0-12A 100W Enhanced heat dissipation up to 200W,
Working temperature: - 40~+85 degrees
Working frequency: 300KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and differential pressure)
Short circuit protection: yes (current limit 14A) please try not to short circuit
Over-temperature protection: Yes (automatically shut down the output after over-temperature)
Input reverse connection protection: none, (if necessary, please connect a diode in series)
Installation method: 4 pieces of 3mm screws

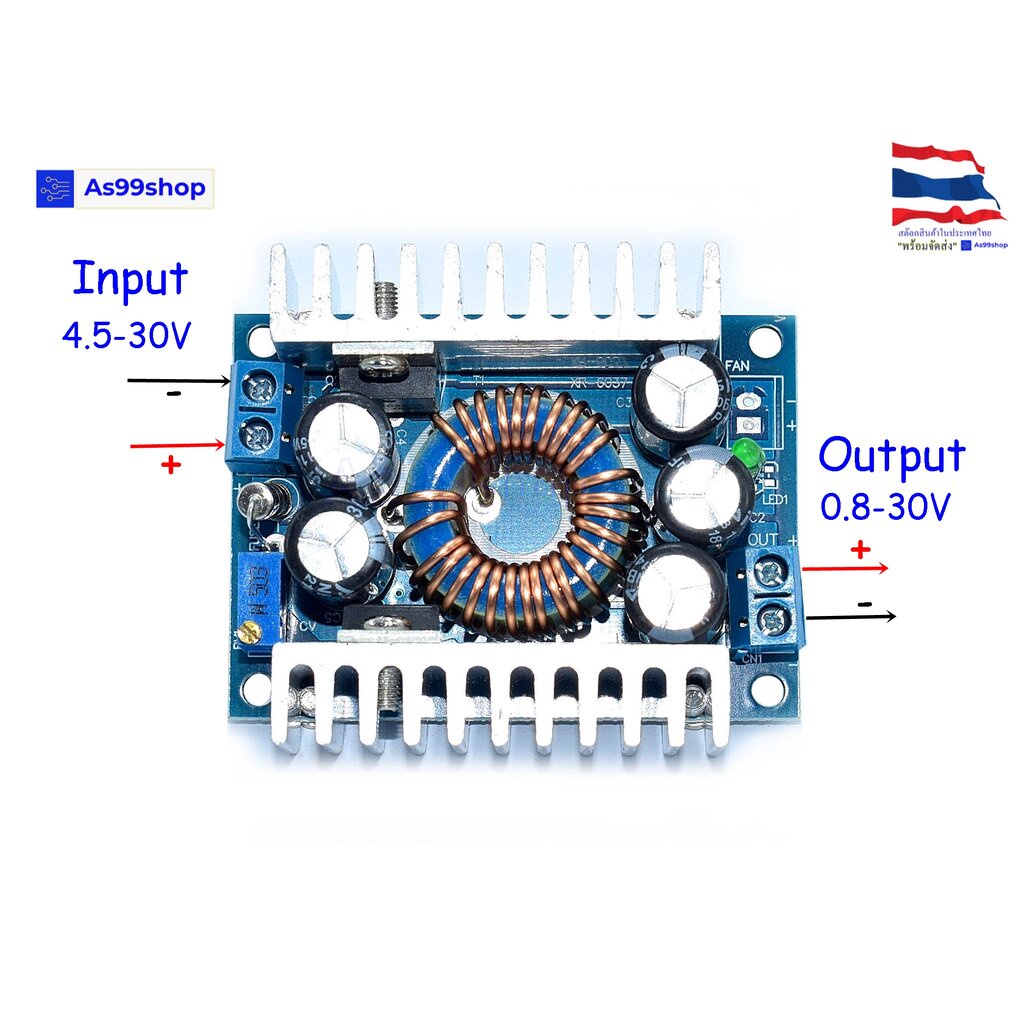

Wiring method: terminal block, no welding, V-IN is input, V-OUT is output, and the module with shell is output by welding wire.

Module size: length 60mm width 51mm height 22mm
