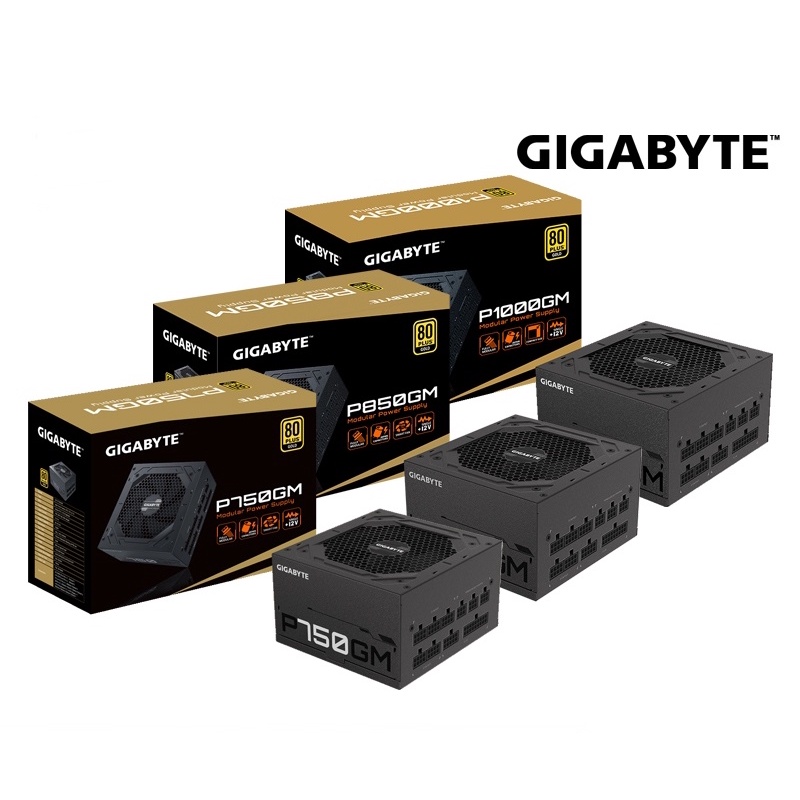

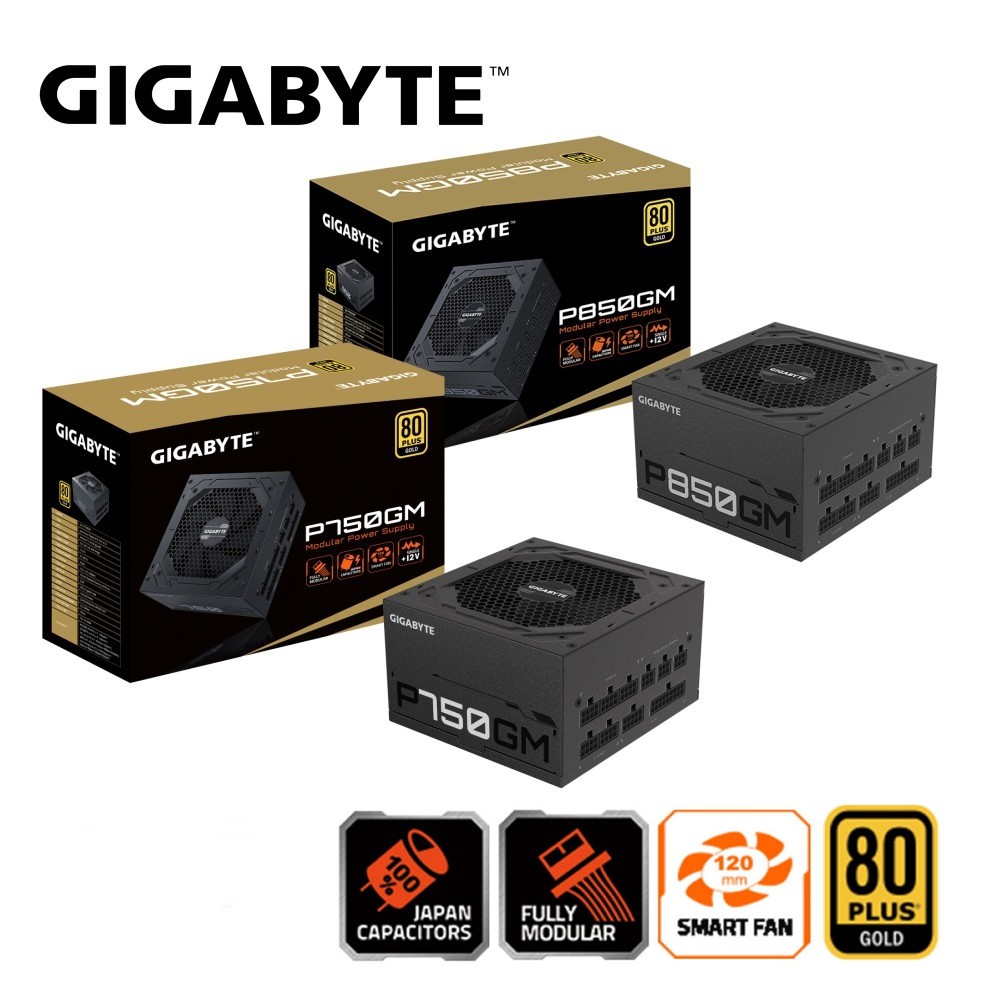

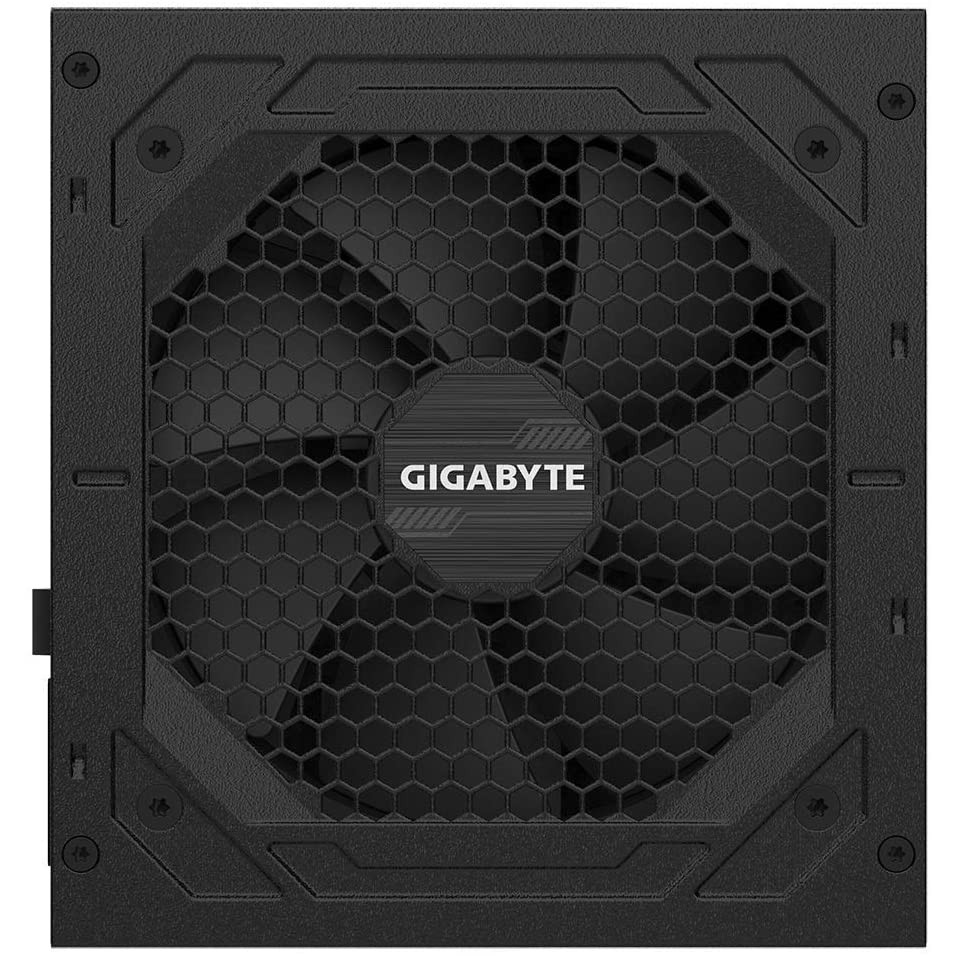

POWER SUPPLY (อุปกรณ์จ่ายไฟ) GIGABYTE 750W, 850W, P750GM, P850GM, P1000GM (80 Plus Gold) 5Y.

Specifications

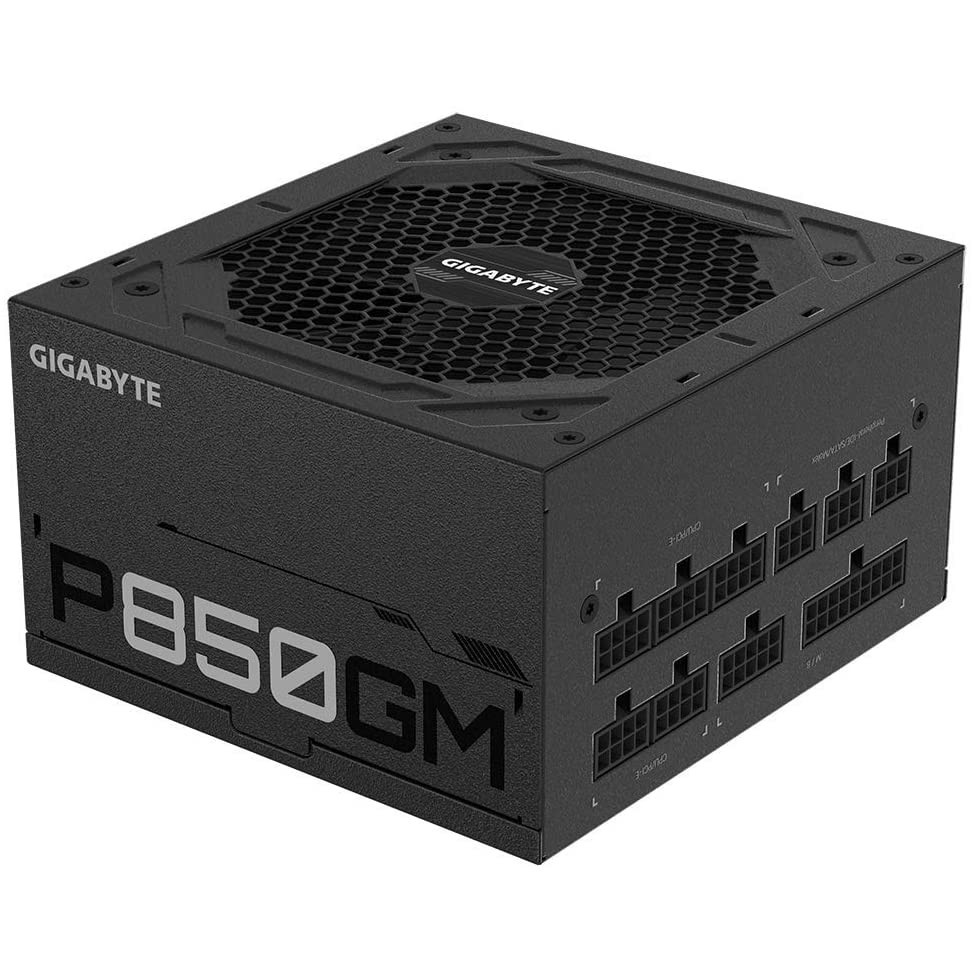

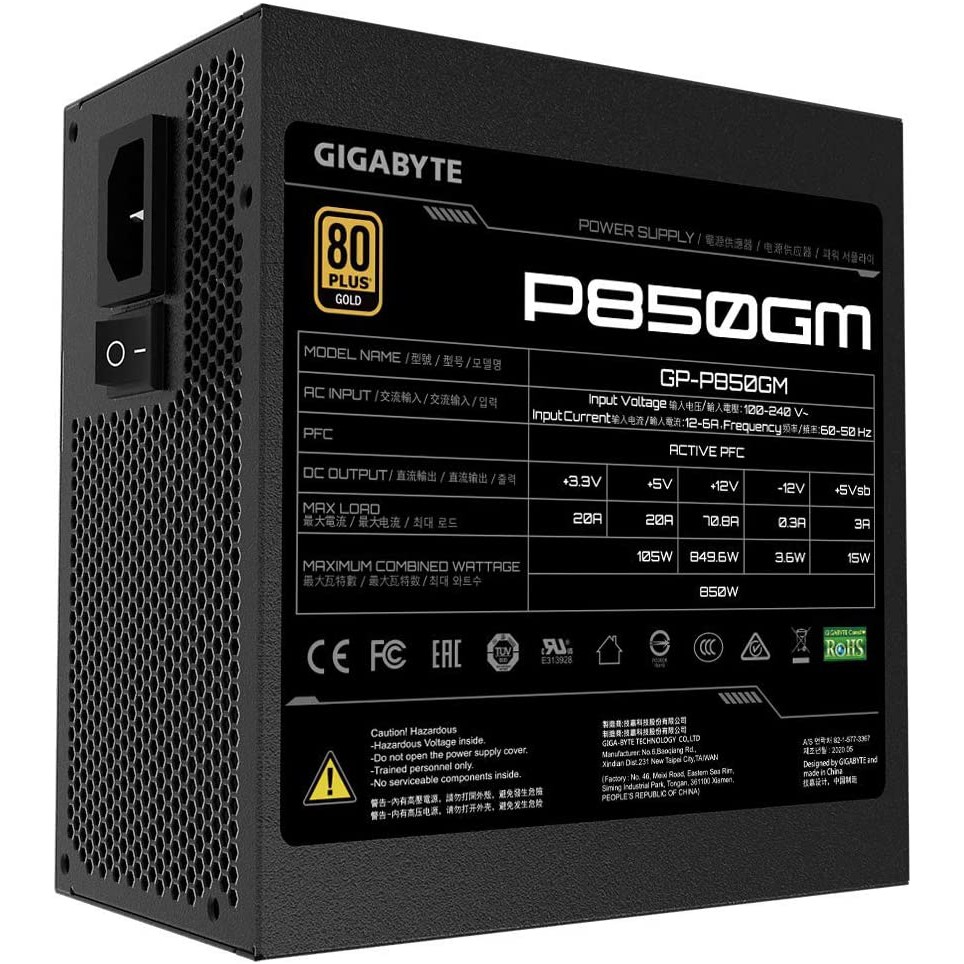

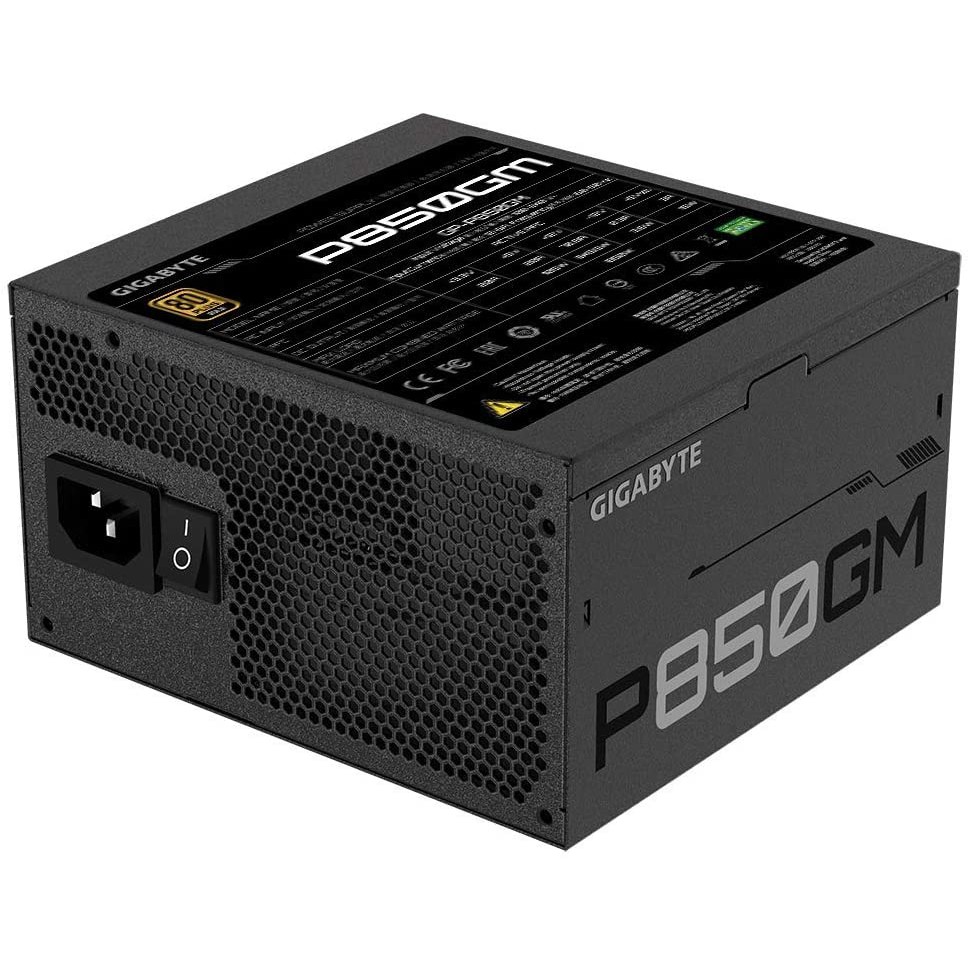

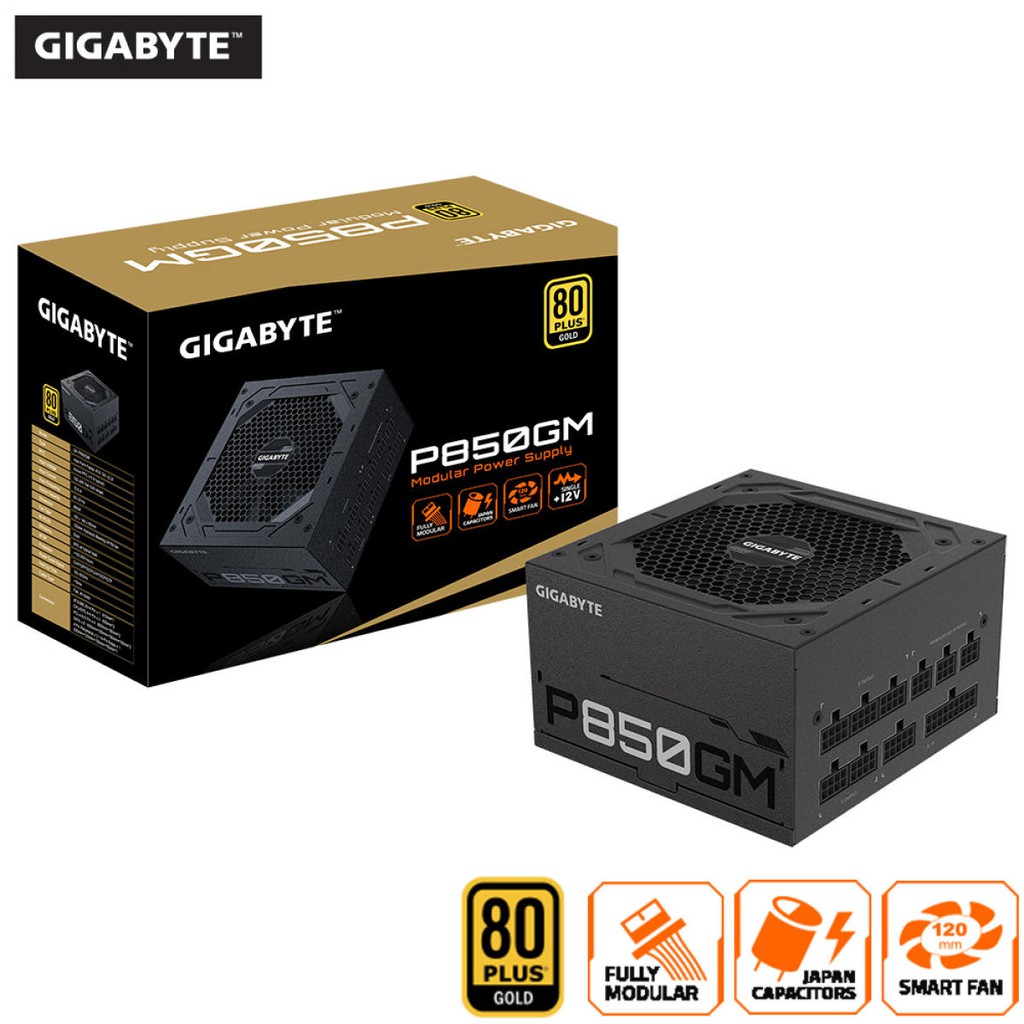

Product P850GM 80+ Gold 850W Modular Power Supply
Part Number GP-P850GM
Form Factor Standard ATX 12V v2.31

Input
Input Voltage 100 ~ 240 VAC
Input Frequency Range 50 ~ 60 Hz
Input Current 12A ~ 6A
Efficiency 90% or higher typical loads

Output
Maximum Load
Voltage +3.3V +5V +12V +5Vsb -12V
Current 20A 20A 70.8A 3.0A 0.3A
Combined Wattage 105W 849.6W 15W 3.6W
Max Output 850W @ 50 °C

80 PLUS® Yes, 80 PLUS® Gold certified
Active PFC Yes
Protection Over power protection (OPP)
Over current protection (OCP)
Over temperature protection (OTP)
Over voltage protection (OVP)
Under voltage protection (UVP)
Short circuit protection (SCP)

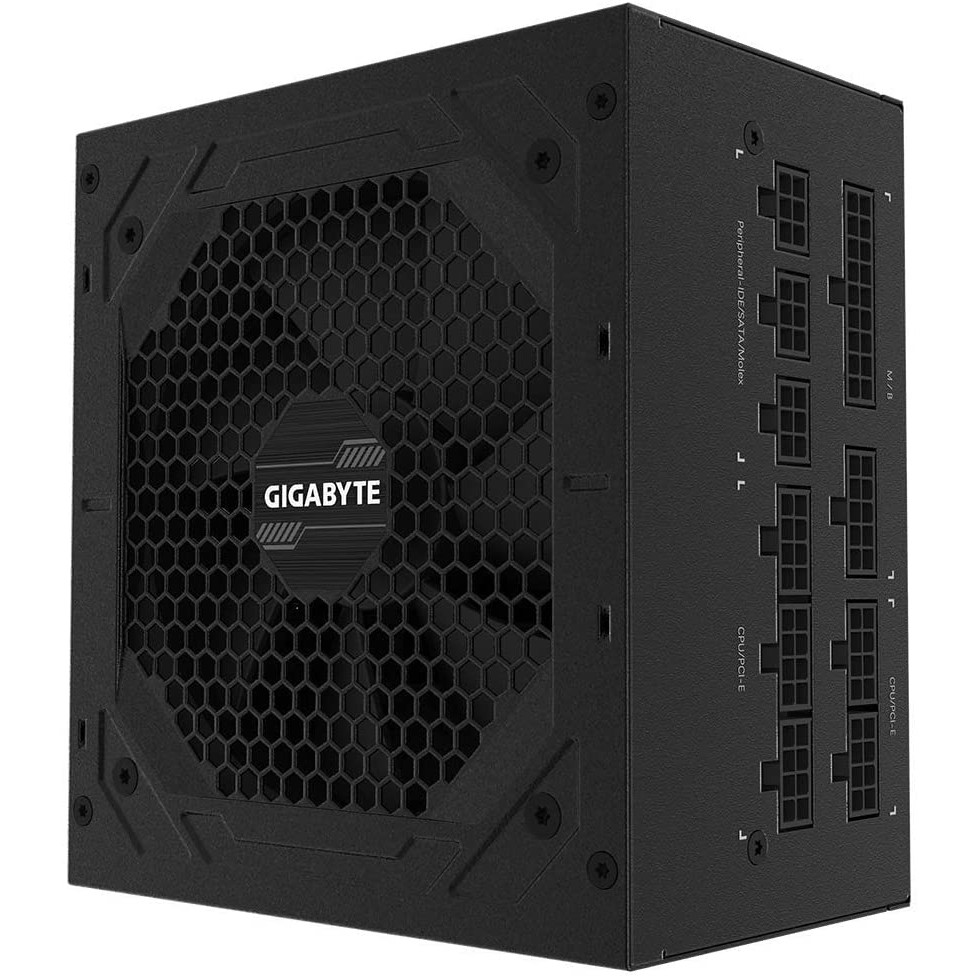

Cooling 120mm Hydraulic Bearing (HYB) fan
Noise Level N/A
MTBF >100,000 hours

Modular Yes, Full

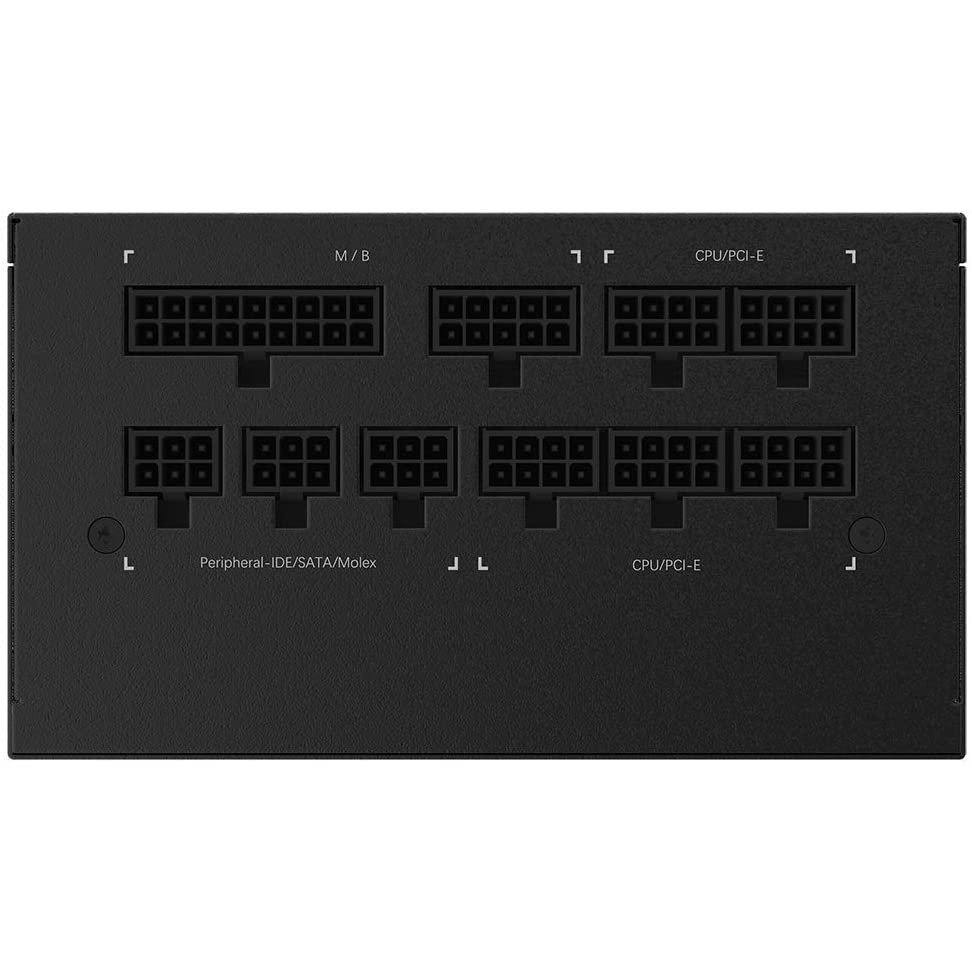

Connectors 1 x 24-Pin ATX motherboard connector
2 x 8-Pin (4+4) EPS (CPU) connectors
4 x 8-Pin (6+2) PCI-E connectors
8 x SATA connectors
3 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector
Modular Cable Type Flat (Black)

Dimensions 150 x 140 x 86 mm
Weight N/A
