TP-LINK VIGI C320I 2MP V1.2 OUTDOOR IR BULLET NETWORK CAMERA กล้องวงจรปิดภายนอก

CAMERA
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum IlluminationColor: 0.01 Lux; 0 Lux with IR
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto

LENS
TypeFixed Focal Lens
Focal Length2.8 mm/4 mm/6 mm
Aperture• 2.8 mm: F2. 2
• 4 mm: F2.0
• 6 mm: F2.0

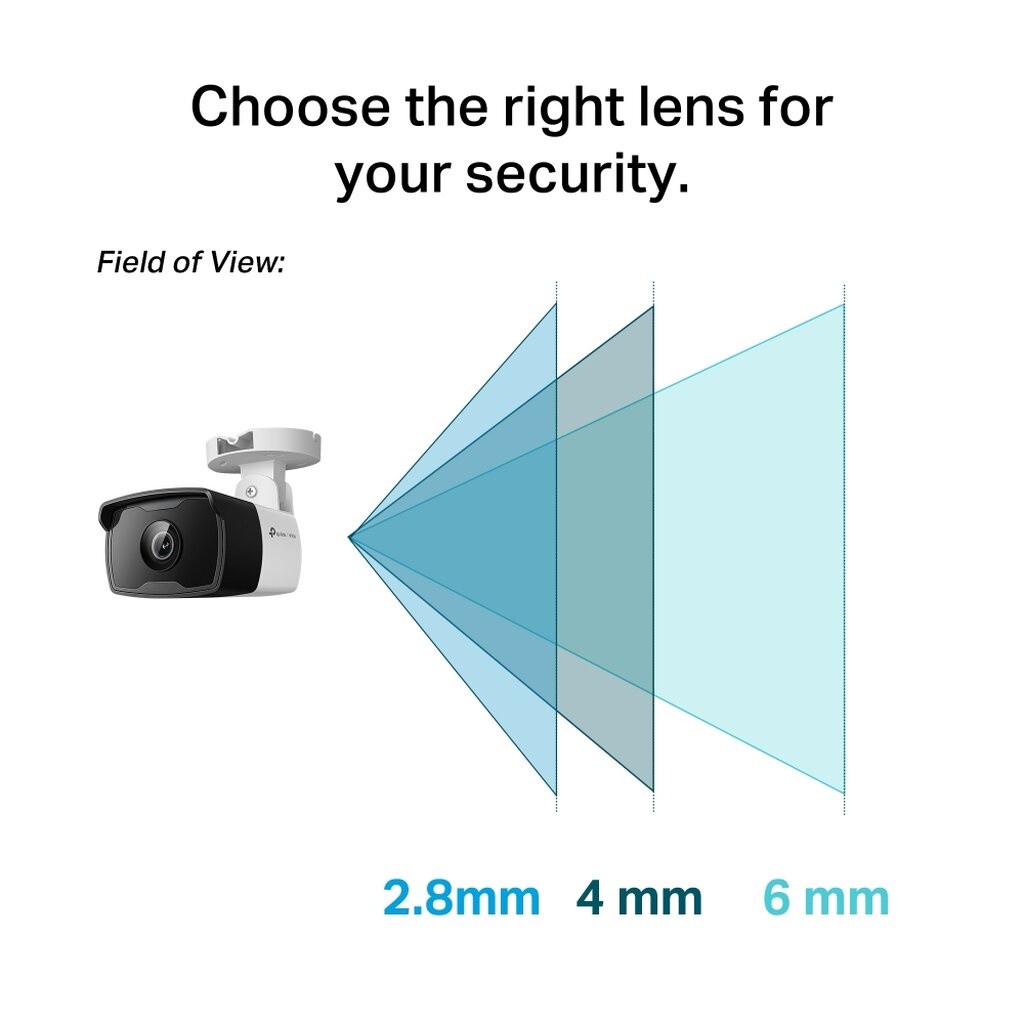

FOV• 2.8 mm:
Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°

• 4 mm:
Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3°

• 6 mm:
Horizontal FOV: 49.8°, Vertical FOV: 27.6°, Diagonal FOV: 57.7°
Lens MountM12
DORI Distance• 2.8 mm:
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)

• 4 mm:
Detect: 60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft)

• 6 mm:
Detect: 91 m (297 ft)
Observe: 38 m (124 ft)
Recognize: 18 m (59 ft)
Identify: 9 m (30 ft)

Angle Adjustment (Manual)
Range• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

ILLUMINATORIR
LED• Quantity: 2
• Range: 50m
• Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off

VIDEO
Max. Resolution1920 × 1080
Main Stream• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
1920x1080, 1280x960, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video Compression• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit Rate• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

Image Settings• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance Adjustable by Client Software
• Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes

AUDIO
Audio CommunicationN/A
Audio InputYes
Audio OutputN/A
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)

NETWORK
Protocol• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• ARP
• SNMP
• IEEE 802.1x
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI
Web Browser• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
Basic Event• Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm LinkageMessage Push
Linkage MethodN/A
Output NotificationMessage Push

INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonN/A
PowerN/A
On-board StorageN/A
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerN/A
AudioN/A

GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package Contents• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
MaterialPlastic
Net Weight0.28 Kg
Gross Weight0.43 Kg
Power SupplyPoE: 802.3af/at, class 0, Max. 5.5 W

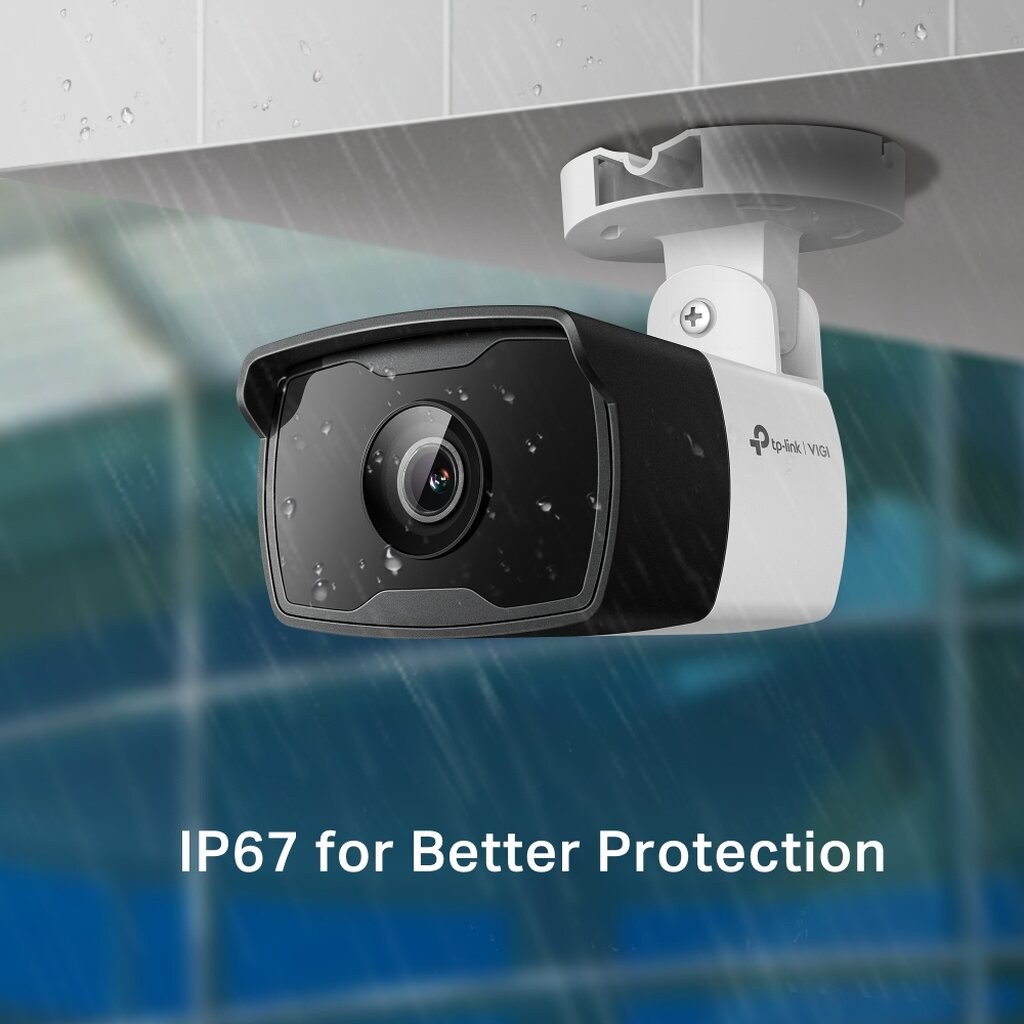

ProtectionIP67 Waterproof

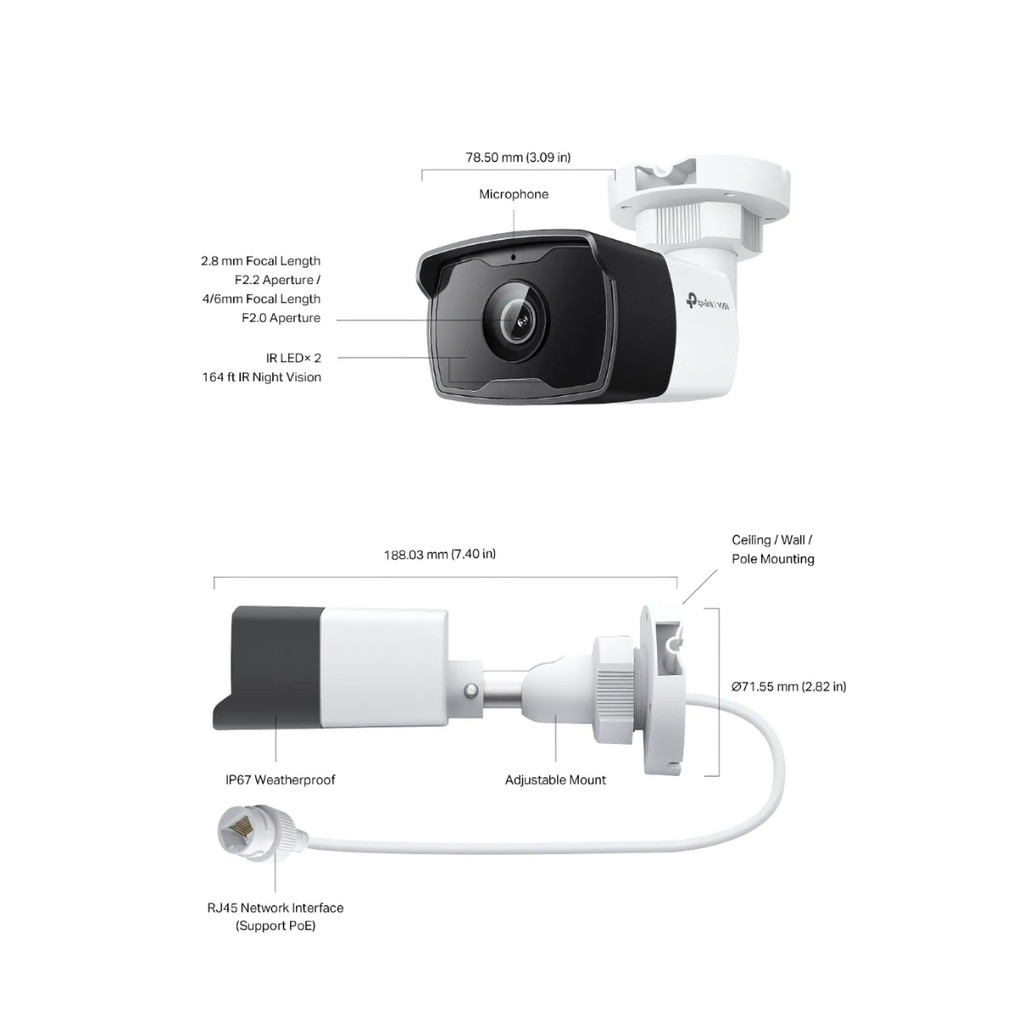

Product Dimensions (L x W x H)78.50 × 188.03 × 71.55 mm (3.09 × 7.40 × 2.82 in)
CertificationsCE, NTRA, VCCI, BSMI
